Multimode ST Female To Male Fiber Optic Attenuator 1dB 2dB 3dB 5dB 7dB 20dB

Nguồn gốc Trung Quốc
Hàng hiệu YINGDA
Chứng nhận ISO
Số mô hình ATTN-STS-01-B20
Số lượng đặt hàng tối thiểu 100PCS
Giá bán Negotiable
chi tiết đóng gói 50 pc / plastic blister box or
Thời gian giao hàng 3-5 days
Điều khoản thanh toán T/T or western Union
Khả năng cung cấp 50,000pcs per month

Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Attenuation 1dB, 2dB, 3dB, 5dB, 10dB, 7dB, 15dB, 20dB,etc test wavelength 1310nm /1550nm
body material metal Additional loss 0.1dB
Working temperature -40~+75 (℃) Fiber optic type single-mode,multimode
industry standard Telcordia TA-NWT-001209 connector type SC FC LC ST E2000 MU
dust cap color red connector shape plug-in type
Điểm nổi bật

build out attenuator

,

optical fiber attenuator

Để lại lời nhắn
Mô tả sản phẩm

ST Attenuator Female To Male,1dB, 2dB, 3dB, 5dB, 7dB,  20dB Build Out Atenuator





Description



ST Build out fix Optical fiber attenuator is made of high precision standard dust. Refined. It use for

a variety of optical fiber transmission line, high precision attenuation, stable and reliable performance.

Performance characteristics have no relationship with wavelength change, can realize the adapter

and attenuator both functions.



 Due to its attenuation accuracy, high additinal loss,it is used in optical distribution frame, optical

fiber network system, the low speed optical fiber transmission system.



Optical fiber attenuator divide into flange adapter (coupler) type and Female to male or Variable

(VOA) type, according to connectors, can have MU, SC, ST, FC, LC etc..



From the microwave network point of view, attenuator is a two port lossy microwave networks.

 It belongs to pass type microwave components.





Main application



(1) to control the power level: the output power of the vibration control in microwave super heterodyne

 receiver, to get the best noise coefficient and frequency conversion loss, then get the best reception.

 In the microwave receiver, automatic gain control, improve dynamic range.

(2) decoupling components: as to the coupling element between the oscillator and the load.

(3) the relative standard: as a comparison of the relative standard of power level.

(4) jump attenuator in radar anti jamming: it is a variable attenuator whose attenuation value can

mutate, usually without introducing attenuation, encountered outside interference, a sudden

increase in attenuation.


Main features



  1. Made of attenuation optical fiber, excellent performance
  2. Simple structure, compact size, easy to install
  3. Stable performance, high reliability
  4. Suitable for 1260 ~ 1650nm wide wavelength
  5. High reflection loss, low insertion loss



Specification



Item

Standard

Wavelength Flattened

Broadband

Operating Wavelength(nm)

1310 or 1550

1310/1550

Bandwidth(nm)

±20

±40

Attenuation value (dB)

1~30

Return Loss (dB)

≥40

Operating Temperature oC

-40~+85

Storage Temperature oC

-40~+85

Industry Standard

Telcordia TA-NWT-001209

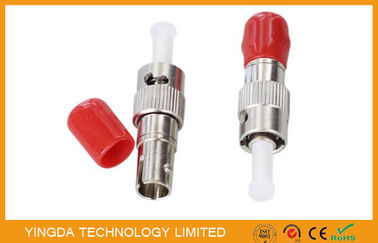

ST female to male plut-in type  attenuator multimode, dust cap color:  yellow



Multimode ST Female To Male Fiber Optic Attenuator 1dB 2dB 3dB 5dB 7dB 20dB 0



ST female to male plut-in type  attenuator single mode, dust cap color:  red



Multimode ST Female To Male Fiber Optic Attenuator 1dB 2dB 3dB 5dB 7dB 20dB 1





ST female to female adapter type attenuator:



Multimode ST Female To Male Fiber Optic Attenuator 1dB 2dB 3dB 5dB 7dB 20dB 2
