Male to Female Fiber Optic 3dB 10dB 15dB 20dB Attenuator LC / UPC , F-M Attenuator
Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xAttenuation | 1dB - 20dB fix | test wavelength | 1310nm, 1550nm |
---|---|---|---|
body material | Plastic | Additional loss | 0.1dB |
Working temperature | -40~+85 (℃) | Fiber optic type | single-mode, multimode |
industry standard | Telcordia TA-NWT-001209 | connector type | SC/APC |
color | dust cap: white, connector body: blue | connector shape | female to male attenuator |
Điểm nổi bật | build out attenuator,optical fiber attenuator |

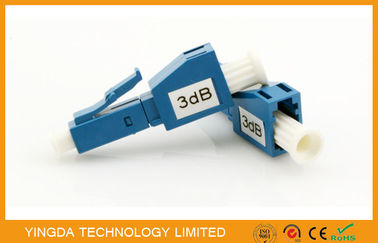

LC/PC Optical Attenuator Male to Female Fiber Optic Attenuator LC/UPC 3dB
Fiber Optic Female to Male fixed attenuator (F-M attenuator) is a kind of attenaution adjustable
attenuator which one end is connector type, the other end is adapter type (known as male to female) .
Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation
in order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.
According to the ferrule end face it can be divided into PC and APC inclined eight degrees,
attenuation is very selective, 0 ~ 30dB optional, wavelength 1250 to 1650nm.
Due to mature production process, high test and quality control, now you can order 1dB,2dB,
3dB,5dB,7dB, 10dB,15dB, 20dB, 25dB,etc.
Features
- Single mode and Multimode
- Zirconia sleeves or Phosphor bronze sleeves
- NTT standard compatible
- Increases panel density and quick plug in installation
- New SC footprint for duplex and 4 way design, more compact for most patch
- Compliant with Bellcore GR-910-CORE
- All parts compliant with ROHS
Application
- Telecommunication
- CATV
- LAN & WAN
- Network
- Broadband
- FTTP
Technical Parameter
Return Loss |
≥45dB(SPC), ≥55dB(UPC), ≥65dB(APC) |
Attenuation Tolerance(dB) |
1-5dB<±0.5 dB |
5-10dB<±10% |
|
11-25dB<±5% |
|
Operating Wavelength(nm) |
1310±10nm |
1550±10nm |
|
1310 and 1550±10nm |
|
Operating Temperature(℃) |
-40℃~+75℃ |
