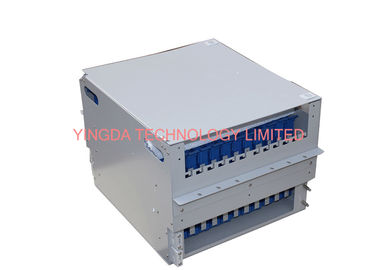

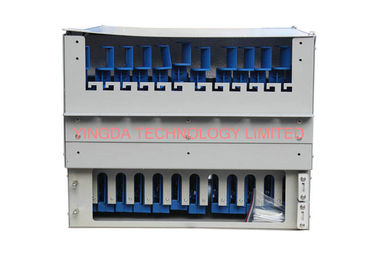

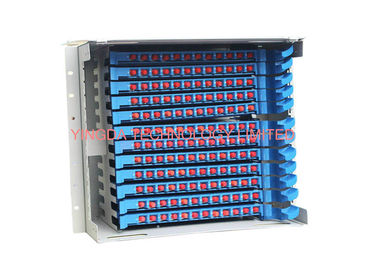

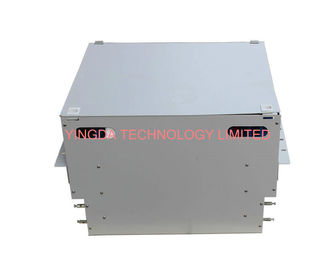

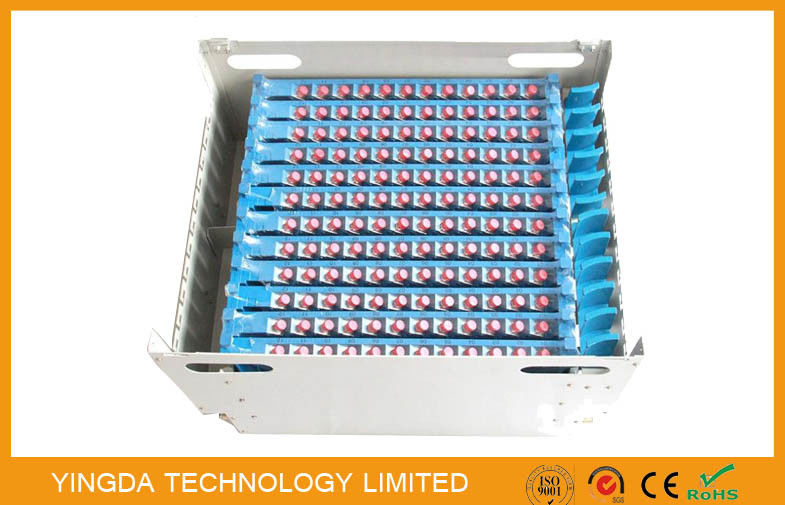

144 Core FC SC LC ST Connector ODF Fiber Optic Patch Panels Unit Cassette Fully Load

Nguồn gốc Trung Quốc
Hàng hiệu YINGDA
Chứng nhận ISO, SGS
Số mô hình ODF-UT144-SC/FC
Số lượng đặt hàng tối thiểu 100PCS
Giá bán Negotiable
chi tiết đóng gói 1 pc / plastoc bag
Thời gian giao hàng 3-5 days
Điều khoản thanh toán T/T or western Union
Khả năng cung cấp 50,000pcs per month

Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Working temperature -40~+85 (℃) Fiber optic type single-mode
industry standard Telcordia TA-NWT-001209 connector type FC/PC
dust cap red
Điểm nổi bật

optical distribution frame

,

sliding patch panel

Để lại lời nhắn
Mô tả sản phẩm

144 Core FC SC LC ST Connector ODF Distribution Frame Fiber Optic Patch Panel Unit Cassette Fully Load





ODF optical fiber distribution frame is standard 19 inch chassis, capacity from 12 core to 96core,

high density, all modular design. This unit box make fiber splicing, fiber cable storage, cable

 distribution in one set, each fused distribution module can be individually extracted, satisfy

the need of on and off the frame operation.



Large capacity optical distribution frame also are good operation, fused distribution module

can be installed FC, SC,ST, LC and many other adapters, and is suitable for common fiber

optic pigtails and ribbon pigtail, equipped with 12 core integrated fiber melting unit tray, can

be directly welded.





Main Technical Parameters



  1. Environment temperature: -5 ~+45°C
  2. Relatively humidity:≤85% (+30°C)
  3. Atmospheric pressure:70~166 KPa
  4. Connector attenuation (Interchangeable and repeat): ≤0.5dB
  5. Insertion loss: ≤ 0.3dB
  6. Return loss: APC ≥ 60dB; UPC ≥ 50dB; PC ≥ 45dB
  7. Pressure between high voltage protection place and distribution frame: ≥ 3000V (DC), 1min no breakdown, no arc
  8. Isolation resistance between high voltage protection place and distribution frame: ≥ 100MΩ/ 500V (DC)
  9. By cascading 12 port splice integration module, configurable 12-144 core, 12 core per tray
  10. Clamping FC/SC/ST/LC adapter, the adapter was 30 degrees arrangement, ensure the jumping fiber bending radius≥40mm, but also can avoid the laser burns eyes.



Structure features



  • Made of high quality cold-rolled plate and the surface electrostatic spray, beautiful appearance
  • The downward and the side door use imported lock
  • The bar adapter panel can be installed adapters like: FC, SC, ST, LC,etc
  • Configure reinforced core and cable fixed seat,complete accessories



Performance advantage



  • Good sealing performance, flexible configuration, quick installation
  • Set  three functions: the optical fiber splice, cable storage, cable distribution in one set
  • Easy operation, reliable grounding, protect the safety
  • The full protection of the jumping fiber, ensure the bending radius ≥ 40mm



Capacity

Spare parts

Size/mm

Net weight/kg

12 core

Splice tray, sleeve, buffer tube

485*300*50

3.9

24 core

Splice tray, sleeve, buffer tube

485*300*75

4.7

48 coe

Splice tray, sleeve, buffer tube

485*300*140

6.9

96 core

Splice tray, sleeve, buffer tube

485*300*252

11

144Core
