Black Handheld Fiber Test Visual Fault Locator Fiber Tool Kits 20MW 650nm SC FC ST 40 KM
Nguồn gốc | Trung Quốc |
---|---|
Hàng hiệu | YINGDA |
Chứng nhận | ISO,SGS |
Số mô hình | FTF650H |
Số lượng đặt hàng tối thiểu | 10 PCS |
Giá bán | Negotiable |
chi tiết đóng gói | 1pc / bag, 10pcs / carton box |
Thời gian giao hàng | 5 working days after received your payment |
Điều khoản thanh toán | T/T or western Union |
Khả năng cung cấp | 500,000pcs per month |
Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xWavelength | 650±10nm | power | 25-50 mW |
---|---|---|---|
Frequency | 2Hz / CW | user distance | 15 Km ~40 Km |
color | black | material | Aluminum |
weight | 80g without battery | dimension | Φ23.5mm * L 190 mm |
Điểm nổi bật | fiber optic tool kits,fiber termination kits |
Black Handheld Fiber Test Visual Fault Locator Fiber Tool Kits 20MW 650nm SC FC ST 40 KM
Description

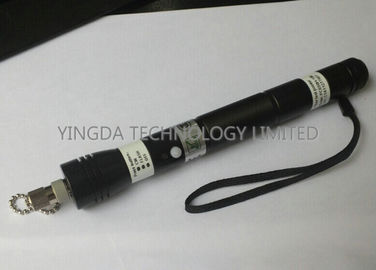

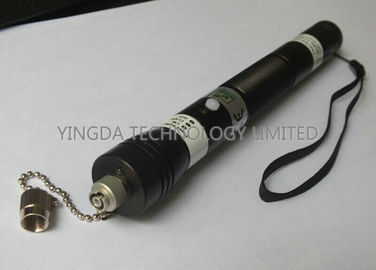

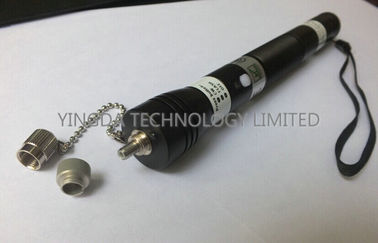

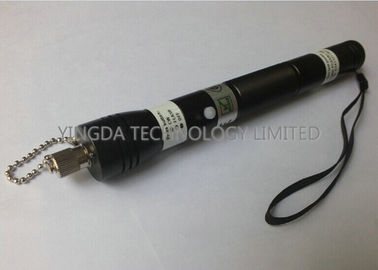

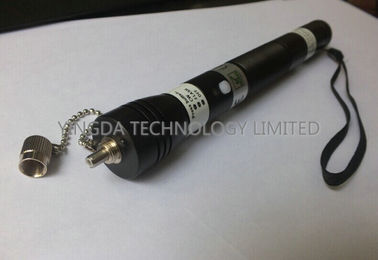

Pen-type light /laser pen is easy to operate,convenient to carry.It can be used to do visual test for fiber,
cable or connector. When the tested fiber have a breakage,the transmission laser will leak out at that
place,then you can know where the fiber damage is. This way is available for single mode or multimode.
It is one of the necessary fiber test tools for site operation worker and fiber maintenance personnel.
Our light pen advantage
1. light pen don’t have fiber coupling inside, so the fiber end face separate with fiber pen to avoid direct
contact (if direct contact, fiber pen end face is easy to dirty, should clean the fiber again).
2. sufficient power (1-50mW, no less than the power show on the label).
3. the housing is insulate, excellent anti-static effect.
Features
- fiber breakage, bending fault locating;
- OTDR dead zone fault checking;
- end to end fiber identification;
- optimization of mechanical splice point
Application
- Telecommunications
- Broadcasting CATV engineering and maintenance
- Integrated wring construction and maintenance
- Optical device production and research
- Other optical engineering
Specification
MODEL NO. |
Handheld laser for fiber test FTF650H |
Wavelength / power |
650±10nm,20-50mW |
Frequency |
2Hz / CW |
Laser class |
CLASSⅢA; CLASSⅢb |
power source |
2 pieces of AA battery,can keep lighting for 3-4hours |
Fiber mode |
SM/MM |
Optical Connector |
2.5mm FC, SC, ST general interface,2.5mm general interface Optional “FC2.5mm to LC1.25mm adapter” |
Using distance |
15 Km ~40 Km |
Material of shell |
Aluminum |
Laser diode lifetime(h) |
>3000h |
Operating temperature |
-10℃~+50℃ |
Storage humidity |
-20℃~+70℃ |
Weight |
80g(without battery) |
Operating humidity |
<90% |
Dimension |
Φ23.5mm * L 190 mm |
Usage steps

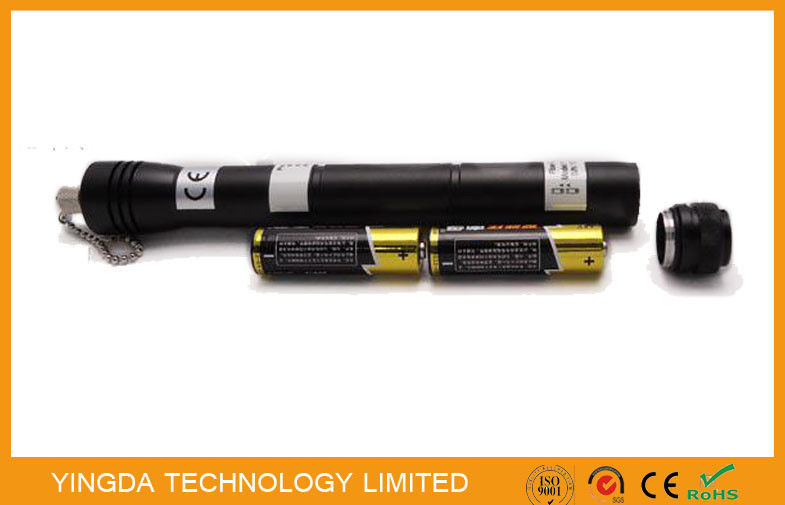

1. Take out of the product from the box and the cloth cover,check outer appearance,unscrew the
end cap, put in the battery subject to the sticker on the boot.
2. Screw the end cap,push the end lock switch and connect to the battery current.
3. Press the front mode select button.The first press,laser lit;the second press,laser strobe;the third
press,the laser off.
If test 1.25mm end face, you can buy optional our company 2.5-1.25mmadapter.
During test, please keep fiber end face and the product vertical direction, don’t swing around (if
necessary,use our company fixed adapter to fix the fiber head) so as not to damage the internal
ceramic sleeve. After test,please screw the protective cover.
4. When finish test, please press the end lock switch,shut off the battery current. New battery can
keep lighting for about 3-5hours(the higher the power,the shorter the using time).
Notice
If not used for a week, please take out of the battery in case of leakage and damage to the product.
Please do not disassemble the device, it will affect the warranty.
