4 Core Fiber Optic Termination Box FTB

Thông tin cơ bản
Place of Origin: SHENZHEN,CHINA
Hàng hiệu: YINGDA
Chứng nhận: ISO SGS ROHS
Model Number: FTB86D
Minimum Order Quantity: 100 pcs
Giá bán: negotiable
Packaging Details: 1pc per plastic bag, 260pcs per carton box
Delivery Time: 5-8days after payment
Supply Ability: 500,000 pcs per month
Thông tin chi tiết
material: ABS or PC color: white
capacity: 2 Core adapter: 2 pcs SC simplex, 2 pcs LC duplex
output port: adapter outport size: 90*120*25 mm
cable diameter: <6mm application: FTTH FTTX FTTB GPON network
cable port: 1in 1 out feature: flame retardant

Mô tả sản phẩm

ABS Slide In Lock Fiber Optic Termination Box FTB, 4 Core Terminal Box





Description

Plastic ABS material socket panel FTB86D is a compact size fiber terminal for use at the final fiber

termination point in the customer premises. It provide mechanical protection and managed fiber

control in an attractive format. A variety of possible fiber termination techniques are accommodated.



Features

  1. Splicing to factory terminated pigtails
  2. Positive fiber management
  3. Direct termination with field installation connectors
  4. Attractive design for indoor use
  5. Can hold up to 4 mechanical splicer, fusion splice protectors or mechanical SC connectors
  6. Splice cable to cable
  7. Compatible with 2 SC simplex adapters/LC duplex adapters
  8. Multiple cable entry points(cable diameter ≤6mm
  9. Can be wall mounted and mounted on wall boxes with fixation points of 60mm



Specification



Model

Socket panel FTB86D

Dimension/mm

90*120*25

Cable diameter/mm

Φ3

Cable ports

2

Max capacity of splice

1 single fiber





Pack information



Model

Carton size/cm

Carton qty/pc

G.W./kg

FTB86D

53*39*53.5

260

23





More product show:

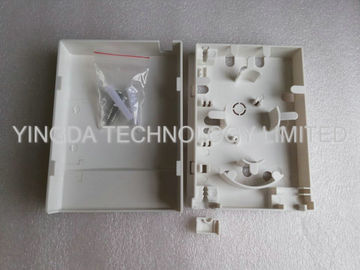

1. ABS empty box white color

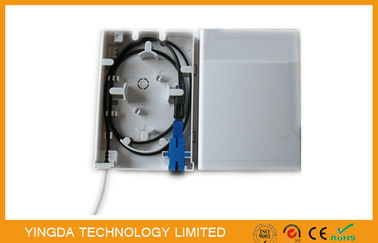

4 Core Fiber Optic Termination Box FTB



2. The width of the customer terminal box

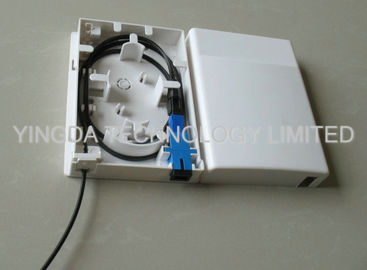

4 Core Fiber Optic Termination Box FTB



3. end user terminal box inner size



4 Core Fiber Optic Termination Box FTB
