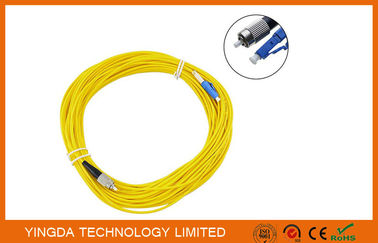

LC to FC Singlemode Simplex Fiber Optic Patch Cord , 20 Meters LSZH Fiber Patch Cable

Nguồn gốc Trung Quốc
Hàng hiệu YINGDA
Chứng nhận ISO SGS ROHS
Số mô hình LCFC-SMSX-20-1.6mm
Số lượng đặt hàng tối thiểu 500 pcs
Giá bán negotiable
chi tiết đóng gói 1 pc / plastic bag
Thời gian giao hàng 5-8days after payment
Khả năng cung cấp 15,000 pcs / day

Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
connector LC to FC fiber count Simplex
insertion loss < 0.2 dB return loss >55dB
Fiber length 20 meter cable diameter 1.6 mm
cable color yellow connector color blue:LC, black: FC
Điểm nổi bật

fiber optic patch cable

,

fiber optic jumper

Để lại lời nhắn
Mô tả sản phẩm

LC to FC Singlemode Simplex Fiber Optic  Patch Cord, LC / FC Fiber Patch Cable

20Meters LSZH





Fiber optic patch cord is one of most commonly used components in fiber optic network. fiber optic

patch cords sometimes is also called fiber optic jumper or fiber optic patch cables. generally there

are two types of fiber optic patch cords: single mode fiber optic patch cords and multimode fiber optic

patch cords. here the word mode means the transmitting mode of the fiber optic light in the fiber optic

cable core. usually single mode fiber optic patch cord are with 9/125 fiber glass and is yellow jacket

color, multi mode fiber optic patch cord are with 50/125 or 62.5/125 fiber glass and is orange color.



LC is the short form of Lucent Connector, LC fiber patch cord connector is a push and latch structure,

with plastic housing and accurate 1.25mm ceramic ferrule. LC type is a popular kind of small form fiber

optic patch cord which reduce the space and it is widely used for densely installation.



FC fiber optic patch cords are with FC fiber optic connectors ,which is a screw type connection. FC fiber

optic patch cords were very much popular in the past ,but people tend to use LC and SC to replace FC

more and more.





Features

  • Low insertion loss
  • Repeat ability
  • High return loss
  • Mutual Insert performance
  • Good temperature stability
  • Strong tensile property
  • Cheap multimode fiber price,short distance transmission
  • Wide transmission bandwidth



Specification

Item

Standard,Master

Connector type

LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,

FC/APC,LC/APC.MU/APC

Duplex MTRJ/Female, MTRJ/Male

Fiber Type



9/125 SMF-28 or equivalent (Singlemade) OS1

50/125, 62.5/125 (Multimode) OM2&OM1

50/125, 10G  (Multimode) OM3

Cable Type

Simplex, Duplex (Zipcord)

Φ3.0mm, Φ2.0mm, Φ1.8mm

Φ1.6mm PVC or LSZH

Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH

Polishing Manner

UPC,SPC,APC (8°& 6°)

Insertion Loss

≤ 0.1dB (For Singlemode Master)

≤ 0.25dB (For Singlemode Standard)

≤ 0.25dB (For Multimode)

Tested by JDS RM 3750


Return Loss (For Singlemode)

UPC ≥ 50dB

SPC ≥ 55dB

APC ≥ 60dB (typ.65dB)

Tested by JDS RM3750

Repeatability

 ±0.1dB

Operating temperature

-400C to 850C


Geometry Requirement

(For Singlemode)

Ferrule Endface Radius

7mm ≤ R ≤ 12mm (For APC)

10mm ≤ R ≤ 25mm (For Standard)

Apex Offset ≤ 30 μm (For Master)

Apex Offset ≤ 50 μm (For Standard)

Undercut -50nm ≤ U ≤ 50nm

Tested by DORC ZX-1





Application

  1. Fiber communication system
  2. Fiber access network
  3. Data transmission
  4. CATV
  5. LAN
  6. Test equipment
  7. Optical fiber sensor

Order information

1. Connector type: FC, ST, SC, LC, MU, MPO, E2000, MTRJ, SMA,

2. End face: UPC PC APC

3. Cable diameter: Ф0.9mm, Ф1.6mm,Ф1.8mm, Ф2mm, Ф2.4mm, Ф3mm.

4. Fiber count: simplex, duplex, 4 core, 6 core, 8 core, 12 core or customer specified

5. Fiber types: G652B, G652D, G655, G657A1, G657A2, 50/125,um 62.5/125um,

OM3 (50/125-150), OM4 (50/125-300) etc.

6. Connector housing color: Blue (single mode PC, UPC connector), beige, grey (multimode connector),

     green (APC connector), aqua (OM3)

7. Boot color : grey,blue, green, white, red, black, green

8. Cable jacket: PVC, LSZH

9. Cable length: customized
