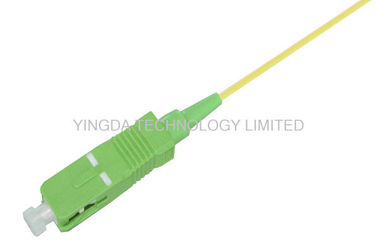

Pigtails SC APC Singlemode Simplex 3 M 900 um PVC Yellow Fiber Optic Cable
Nguồn gốc | Trung Quốc |
---|---|
Hàng hiệu | YINGDA |
Chứng nhận | ISO SGS ROHS |
Số mô hình | FPC-SCA-OS1-09-01-Y |
Số lượng đặt hàng tối thiểu | 500 pcs |
Giá bán | negotiable |
chi tiết đóng gói | 1 pc/ bag, 1500pcs / carton box |
Thời gian giao hàng | 7days after payment |
Điều khoản thanh toán | Western Union, T/T |
Khả năng cung cấp | 200,000 pcs per month |
Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xconnector | SC APC | fiber count | simplex |
---|---|---|---|
insertion loss | < 0.2 dB | fiber type | 9/125 um G652D |
package | plastic bag | cable diameter | 0.9mm |
jacket | PVC cable jacket | connector color | yellow |
temperature | -40~+85°C | customer logo | yes |
wavelength | 1310nm, 1550nm | ||
Điểm nổi bật | optical fiber pigtail,ribbon pigtail |

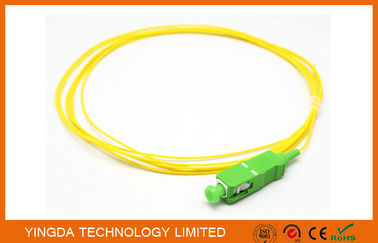

Pigtails SC APC Singlemode Simplex 3 M 900 um PVC Yellow Fiber Optic Cable
SC is short for square card type, SC fIber optic connector can plug directly, easy to use, but also easy to drop out.
SC APC Fiber Optic Pigtail is a component installed in a fiber optic transmission system that reduce the power
in the optical signal. It is often used to limit the optical power received by the photo-detector to within the limits
of the optical receiver. Optic fixed type adapter (female to female) Pigtail can be selected in need of the project.
It is used in the fiber transmission system .
Features
- Low Insertion Loss
- High Return Loss
- Good Repeat ability
- Good Exchange ability
- High Temperature Stability
- Comply with YD/T 1272.4-2007 specification
- 8 Degree Angled physical contact polishing (APC)
Specification
Item |
Single mode (nomomodo) |
Multimode (Multimodo) |
Wavelength |
1310&1550nm |
850&1300nm |
Fiber type |
9/125um |
62.5/125um,50/125um,50/125um OM3,50/125um OM4 |
Connector type |
SC ST FC LC MU MTRJ E2000 DIN D4 ESCON |
|
Insertion loss on average |
≤0.3dB |
≤0.3dB |
Max. insertion loss |
≤0.5dB |
≤0.5dB |
Return loss |
UPC≥55dB;APC≥65dB |
≥20dB |
Operating temperature |
-40~+75℃ |
|
Storage temperature |
-40~+85℃ |
Application
- CATV network
- Optical fiber communication systems
- Optical fiber data transmission
- Building network access
- Cabling system, ODF
- FTTX networks
Ordering Information
LC / PC SM 9/125 SIMPLEX 0.9mm –1M LSZH
① ② ③ ④ ⑤ ⑥ ⑦
① Connector type: SC
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um), OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH
