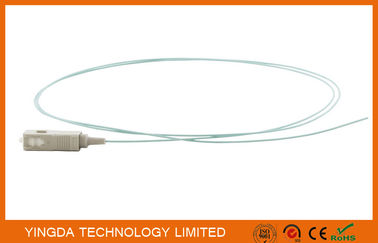

Fiber Optic Pigtail SC OM3 10Gigabit Aqua 50/125um 2 Meter LSZH G657A1 Mulitmode Fiber 0.9mm

Thông tin cơ bản
Place of Origin: SHENZHEN,CHINA
Hàng hiệu: YINGDA
Chứng nhận: ISO SGS ROHS
Model Number: FPC-SC-OM3-09-2-A
Minimum Order Quantity: 500 pcs
Giá bán: negotiable
Packaging Details: 1 pc/ bag, 1500pcs / carton box
Delivery Time: 7days after payment
Payment Terms: Western Union, T/T
Supply Ability: 200,000 pcs per month
Thông tin chi tiết
connector: SC PC fiber count: simplex
insertion loss: < 0.3 dB fiber type: 10Gigabit OM3
package: plastic bag cable diameter: 900 um
jacket: LSZH cable color: Aqua
temperature: -40~+85°C customer logo: yes
wavelength: 1310nm, 850nm

Mô tả sản phẩm

Fiber Optic Pigtail SC OM3 10Gigabit Aqua 50/125um 2 Meter LSZH G657A1 Mulitmode Fiber 0.9mm





SC is short for square card, it can plug directly,easy to use, but also easy to drop out. SC Fiber Optic

Pigtail is a component installed in a fiber optic transmission system that reduce the power in the optical

signal. It is often used to limit the optical power received by the photo-detector to within the limits of the

optical receiver. Optic fixed type adapter (female to female) Pigtail can be selected in need of the project.

It is used in the fiber transmission system .



Application

  1. CATV network
  2. Optical fiber communication systems
  3. Optical fiber data transmission
  4. Building network access
  5. Cabling system, ODF
  6. FTTX networks



Features

  • Low Insertion Loss
  • High Return Loss
  • Comply with YD/T 1272.4-2007 specification
  • Good Exchange ability
  • Good Repeat ability
  • High Temperature Stability



Specification



Connector type

LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC.

MU/AP Duplex MTRJ/Female, MTRJ/Male

Fiber Type

9/125um SMF-28 or equivalent (Single mode) OS1,

(Multi-mode) 50/125um OM1, 62.5/125um OM2 &

50/125um, 10G OM3, OM4

Cable Type

Simplex, Duplex (Zip cord) Φ3.0mm, Φ2.0mm,

Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm

buffered fiber

PVC or LSZH

Polishing Manner

UPC,SPC,APC (8°& 6°)

Insertion Loss

≤ 0.1dB (For Single mode Master)

≤ 0.25dB (For Single mode Standard)

≤ 0.25dB (For Multi-mode)

Tested by JDS RM 3750

Return Loss

(For Single mode)

UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB)

Tested by JDS RM3750

Repeat ability

±0.1dB

Operating Temperature

-40°C to 85°C

Geometry Requirement

 (For Single mode)

Ferrule End face Radius

7mm ≤ R ≤ 12mm (For APC);

10mm ≤ R ≤ 25mm (For Standard);

Apex Offset ≤ 30 μm (For Master);

Apex Offset ≤ 50 μm (For Standard);

Undercut -50nm ≤ U ≤ 50nm;

Tested by DORC ZX-1



Ordering Information


SC / PC OM3 50125 SIMPLEX 0.9mm –1M LSZH

 ①   ②      ③                ④         ⑤         ⑥   ⑦



① Connector type: SC
② Ferrule End-face: PC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um),

 OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH



Fiber Optic Pigtail SC OM3 10Gigabit Aqua 50/125um 2 Meter LSZH G657A1 Mulitmode Fiber 0.9mm
