Fiber Optic Pigtail FC singlemode 0.9mm 1meter Yellow Color Cable PVC G652D
Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xFiber type | single mode | fiber count | Simplex |
---|---|---|---|
cable type | fiber optic | cable diameter | 900 um |
cable length | 1 meter | connector boot | black boot, body: metal + plastic |
polish mode | UPC | connector | FC |
cable color | yellow or white | OEM | OK |
ferrule | ceramic | ||
Điểm nổi bật | optical fiber pigtail,waterproof pigtail |

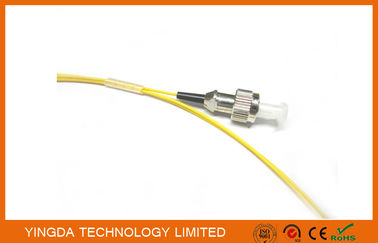

Fiber Optic Pigtail FC singlemode 0.9mm 1meter Yellow Color Cable PVC G652D
YINGDA offers an FC Tunable Pigtail with four-position tuning for applications requiring precise fiber
alignment. A specially designed FC PM Pigtail is available for use with Polarization Maintaining Fiber.
FC Fiber Optic Pigtail was one of the most popular Pigtails. It use a 2.5mm ferrule, but some of
the early ones use ceramic inside stainless steel ferrules. It screws on firmly, but you must make
sure you have the key aligned in the slot properly before tightening. It's been mostly replaced by
SC and LC. However,due to easy assemblies and installation, YINGDA produced FC Fiber Optic
Pigtails are every competitive.
FC Fiber Optic Pigtails is available in both single-mode and multimode, and is fully inter-mateable
with NTT-FC products. Both single-mode and multimode come with a zirconia ceramic ferrule with
pre-polished PC profile and convex spherical end. These end-face types allow for faster polishing,
and low back reflection and optical loss, while ensuring maximum repeat-ability.
Application
- CATV network
- Optical fiber communication systems
- Optical fiber data transmission
- Building network access
- Cabling system, ODF
- FTTX network
Features
- Low Insertion Loss
- High Return Loss
- Good Exchange ability
- Good Repeat ability
- High Temperature Stability
- Comply with YD/T 1272.4-2007 specification
- 8 Degree Angled physical contact polishing (APC) can offer
Specification
Item |
Single mode (nomomodo) |
Multimode (Multimodo) |
Wavelength |
1310&1550nm |
850&1300nm |
Fiber type |
9/125um |
62.5/125um,50/125um,50/125um OM3,50/125um OM4 |
Connector type |
SC ST FC LC MU MTRJ E2000 DIN D4 ESCON |
|
Insertion loss on average |
≤0.3dB |
≤0.3dB |
Max. insertion loss |
≤0.5dB |
≤0.5dB |
Return loss |
UPC≥55dB;APC≥65dB |
≥20dB |
Operating temperature |
-40~+75℃ |
|
Storage temperature |
-40~+85℃ |
Ordering Information
FC / UPC SM 9/125 SIMPLEX 1.6mm –1M LSZH
① ② ③ ④ ⑤ ⑥ ⑦
① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um), OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH
