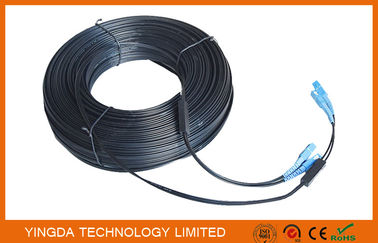

Black 2 Core Single Mode Fiber Patch Cord SC - SC 657A2 Simplex 70M With Steel Wire

Nguồn gốc Trung Quốc
Hàng hiệu YINGDA
Chứng nhận ISO,SGS,ROHS
Số mô hình FHPC-SCU-02-SFS-A2B-70
Số lượng đặt hàng tối thiểu 100PCS
Giá bán Negotiable
chi tiết đóng gói 1 piece / bag

Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Application FTTH indoor wiring Connector SC / UPC
fiber count 2 core fiber type G657A2
Cable sheath LSZH Cable length 70 meters
Cable color black / white insertion loss < 0.3dB
Cable strength member Steel wire drop cable diameter 2.0*5.0 mm
Điểm nổi bật

fiber optic patch cable

,

fiber optic jumper

Để lại lời nhắn
Mô tả sản phẩm



Black 2 Core Single Mode Fiber Patch Cord SC - SC 657A2 Simplex 70M With Steel Wire



The optical fiber unit is positioned in the center ,two parallel fiber reinforced plastics FRP are placed at the

two sides. A steel wire as the additional strength member is also applied,then the cable is completed with

a black or color LSZH Sheath.



Features

  1. Special high bending radius optical fiber, provides wider bandwidth, enhance the network
  2. transmission performance;
  3. Two parallel FRP or metallic strength member so that the cable has good compression
  4. performance, protect the fiber;
  5. Simple structure, light weight, strong practicability;
  6. The unique groove design, easy to peel, convenient connection, simple installation and maintenance;
  7. Low smoke halogen-free flame retardant polyethylene sheath or flame retardant PVC sheath,
  8.  environmental protection.
  9. Can be matched with a plurality of field connector, can be terminated at site.
  10. Due to its soft and light, it is widely used in access network; so it is also called indoor access
  11. network butterfly cable, and due to its shape called butterfly optical cable, figure 8 cable.


Application

  • For indoor /outdoor wiring, terminal user directly use cable;
  • Building introducing (drop) cable;
  • FTTH indoor outdoor distribution

Implementation standards

  • YD/T1997-2009 access network butterfly optical drop cable

Black 2 Core Single Mode Fiber Patch Cord SC - SC 657A2 Simplex 70M With Steel Wire 0



Specification



Item

SC FC ST LC drop cable PATCH CORD

IL(dB)

≤0.2

Max IL(dB)

≤0.3

Working temperature(°C)

-40~+80

Temperature cycle(°C)

-40~+75

Storage temperature(°C)

-40~+85

Interchangeability (dB)

≤0.2

Plug times

1000 times

Repeat ability(dB)

≤0.1

RL (dB)

≥45 ≥50 ≥60

Immersion

Temperature 43°C,

PH5.5 for 7days





Order information



FHPC-XXX-XX-XXX-XXX-XX

        1 - 2  - 3 4 - 5 6 - 7



FHPC

Connector

type



Fiber

count

Cable

type

Strength

member

Fiber type

Cable

color

Cable

Length

FH=ftth

1

2

3

4

5

6

7

Pc=patch

cord

SCU=SC/UPC

SCA=SC/APC

LCU=LC/UPC

....

01=1core

02=2core

04=4core

....

F8=Figure 8

SF=self-supporting

F=FRP

S=steel

5D=G.652D

A1=G.657A1

A2=G.657A2



W=white

B=Black

Y=yellow

01=1m

02=2m

...

10=10m

...





FTTH Drop Cable Figure-8 Indoor           FTTH Drop Cable Self-supporting Outdoor

Black 2 Core Single Mode Fiber Patch Cord SC - SC 657A2 Simplex 70M With Steel Wire 1Black 2 Core Single Mode Fiber Patch Cord SC - SC 657A2 Simplex 70M With Steel Wire 2





FTTH patch cord 2core SC/APC-SC/APC                FTTH patch cord 2core SC/UPC-SC/UPC

Black 2 Core Single Mode Fiber Patch Cord SC - SC 657A2 Simplex 70M With Steel Wire 3Black 2 Core Single Mode Fiber Patch Cord SC - SC 657A2 Simplex 70M With Steel Wire 4
