2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic

Nguồn gốc Trung Quốc
Hàng hiệu YINGDA
Chứng nhận ISO,SGS
Số mô hình FDB0216A
Số lượng đặt hàng tối thiểu 100PCS
chi tiết đóng gói 1pc in a box, 10 pcs per carton box
Thời gian giao hàng 6days
Điều khoản thanh toán Western Union, MoneyGram, T/T
Khả năng cung cấp 5000pcs/month

Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
material ABS, PC color black
ftth drop cable 16 pcs cable ports 2in 16out
plc splitter 1x2, 1x4,1x8,1x16 adapter SC, LC duplex
max splicing 24 fibers application wall or pole mounting
Điểm nổi bật

fiber optic closure

,

optical distribution box

Để lại lời nhắn
Mô tả sản phẩm

2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic 16Ports



Model: FDB0216A



FDB0216A Optical Termination Box is a high density wall mounted solution for FTTH next generation networks, it provide and manage maximum 16cores fiber termination in a limited space. It can be wall mounting or pole mounted indoor and outdoor application.



Feature

  • It is made of high impact plastic material, high strength, good performance
  • Can accommodate 1x8 1x16 mini module PLC splitter with SC Connector
  • Anti-UV, Ultra violet resistant and rainfall resistant.
  • Wall mounted, pole mounted
  • Max. Hold 16pcs SC or LC duplex adapters
  • 2 pcs un-cut cable port, 16 pcs FTTH drop cable outports
  • Pre-install SC adapter or micro splitter, pigtails available.
  • Indoor and outdoor use


FDB0216A Termination Box DIECUT

2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic 0

FDB0216A Termination Box 3D drawing -- UNCUT CABLE PORT

(the feeder cable go through the box no need cutting, easy for on-site installation)

2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic 12In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic 2

Application

  • Telecommunication Networks
  • WAN,LAN ,CATV Networks
  • Data communications Networks
  • FTTH access terminal network (FAT)



Specifications:

Model FDB0216A
Material ABS
Size(W*H*D) 260*320*115mm
Max capacity 16 fibers
Adapter qty 16 x SC
PLC splitter 1x2,1x4,1x8,1x16 micro splitter
Color White, black, gray



Packing information:

Model QTY/CTN CTN size N.W/CTN G.W/ CTN
FDB0216A 10pcs 56*36*63cm 1.48 16.5kgs





How to install

2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic 3

2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic 4

Steps:

1.insert small diameter of cable and fix it, fig. 1

2. connect the cable with splitter input cable by fusion splicing or mechanical splicing. fig. 2

3. fix 1x8 and 1x16 splitter, fig. 3

4. connect splitter ribbon fibers with output pigtails that coated loose tube, fig. 4

5. fix the arranged ouput pigtails with losse tube to tray, fig. 5

6. lead output pigtails to the other side of the tray, and insert adapter , fig. 6.

7. pre-insert optical drop cables to outlet holes in order, then seal it b soft block. fig. 7

8. pre-installed field assembly connector of drop cable, the insert connectors to optical adapter in order and tie it by cable ties. fig. 8

9. close the cover, finish installation. fig. 9

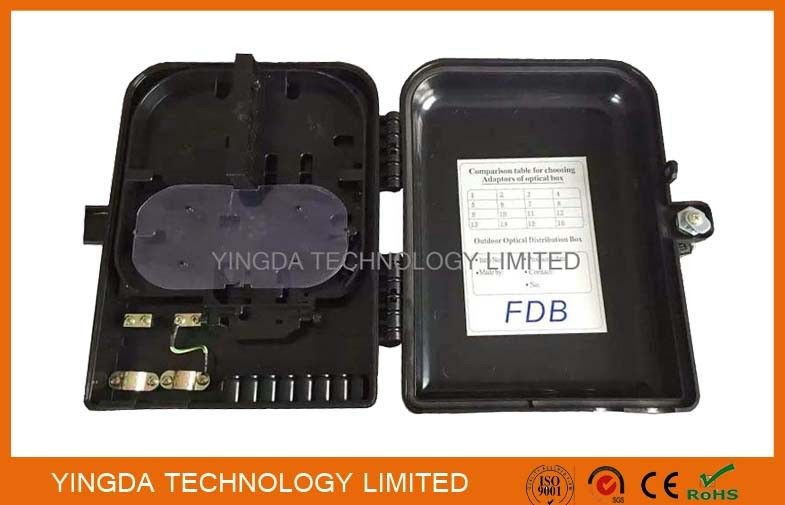

EMPTY BOX SHOW:



2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic 52In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic 6
