Thông tin chi tiết sản phẩm:
Thanh toán:
|
| split ratio: | 1*32 | connector: | SC/APC |
|---|---|---|---|
| fiber type: | singlemode G657A1 | insertion loss: | 16.5dB |
| Uniformity (Max.): | <1.3dB | wavelength: | 1260 - 1650 nm |
| PDL(Max.): | 0.3dB | Standard: | Telcordia GR-1221 and GR-1209 |
| steel tube: | 80×20×6mm | ||
| Điểm nổi bật: | fiber optic splitter,fbt coupler |
||

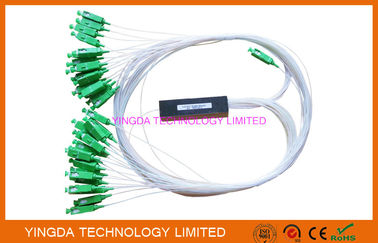

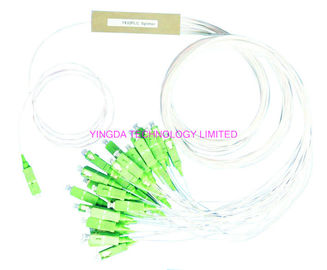

FTTH Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard
YINGDA Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.YINGDA provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.
PLC SPLITTER 1X32 STRUCTURE
Features
Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: From 1260nm to 1650nm
Wide Operating Temperature: From -40℃ to 85℃
High Reliability and Stability
Applications
FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution
Compliance
Telcordia GR-1209-CORE
Telcordia GR-1221-CORE
RoHS
Specifications
| Parameters | 1×32 |
| Operating Wavelength (nm) | 1260~1650 |
| Fiber Type | G657A1 or customer specified |
| Insertion Loss (dB)(P/S Grade) | 16.5/16.9 |
| Loss Uniformity (dB) | 1.5 |
| Polarization Dependent Loss(dB) | 0.3 |
| Return Loss (dB)(P/S Grade) | 55/50 |
| Directivity (dB) | 55 |
| Wavelength Dependent Loss (dB) | 0.5 |
|
Temperature Stability (-40~85 ℃)(dB) |
0.5 |
| Operating Temperature (℃) | -40~85 |
| Storage Temperature (℃) | -40~85 |
| Device Dimension (mm) | 50×7×4 |
| Module Dimension (mm) | 140×115×18 |
| Mini-Module Dimension (mm) | 80×20×6 |
Notes:
1. Specified without connectors.
2. IL will be 0.15dB higher with connectors.
Product details

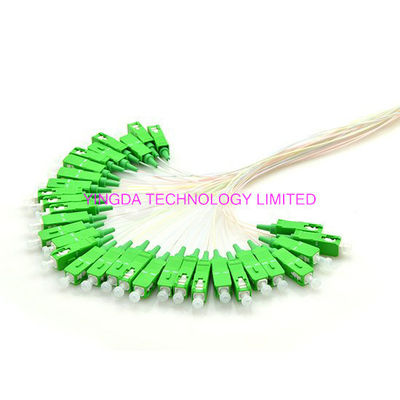

steel tube can include: product name, seral number or logo, and the input and output color, length,connector types can be customized.
each splitter will test after add connectors before delivery.
Yingda Produce All Kinds Of Fbt Couplers And Plc Splitters From 1xn To 2xn Series..
For more details, pls send mail to us at: sales@ydpcable.com contact: sophie wang
