Outdoor 12 Core Fiber Optic Distribution Box / Ftth Terminal Box For 1x8 Optical Splitter SC Adapter

Nguồn gốc Trung Quốc
Hàng hiệu YINGDA
Chứng nhận ISO
Số mô hình FDB0212G
Số lượng đặt hàng tối thiểu 200pcs, first order accept small order
Giá bán negotiable
chi tiết đóng gói 1pc/box, 20pcs/carton box
Thời gian giao hàng 5-8working days
Điều khoản thanh toán T/T, Western Union, MoneyGram, L/C
Khả năng cung cấp 50k per month

Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
material PC+ABS Capacity 12 fibers
adapter qty 12pcs SC adaptor in 3way split ratio 1x2,1x4,1x8 micro splitter optional
color white size 250*190*39mm
connector insertion loss <0.2dB OME or sample ok
cable port cable gland, 2 inports, 16 outports cable diameter 16mmin, 3mmdrop cable out
Điểm nổi bật

fiber optic closure

,

splitter distribution box

Để lại lời nhắn
Mô tả sản phẩm

Outdoor 12Core Fiber Optic Distribution Box / Ftth Terminal Box For 1x8 Optical Splitter SC Adapter IP65





FDB0216G optic fiber boxes is applicable PLC coupler to a terminal access links FTTH access system. It is especially for connecting and protection for fiber cable for FTTH.



Features

  • The two-tier structure, the upper wiring layer optical splitter, lower for fiber splicing layer.
  • Optical Splitter module drawer modular design with a high degree of interchangeability and versatility;
  • Up to 12pcs FTTH drop cable
  • 2 ports for outdoor cable in
  • 12 ports for drop cable or indoor cable out
  • can accommodate 1x4 and 1x8 1x16 PLC splitter (or 2x4 or 2x8)
  • Wall mounting and pole mounting application
  • IP 65 waterproof protection class
  • Indoor or outdoor use
  • Suitable for 12x SC / LC duplex adapter
  • Pre-terminated pigtails,adapters, plc splitter available.

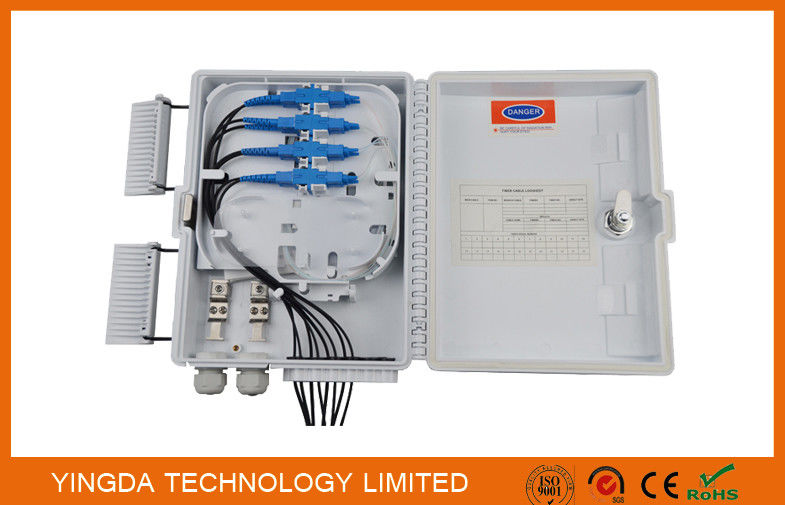

White Color Box

Outdoor 12 Core Fiber Optic Distribution Box / Ftth Terminal Box For 1x8 Optical Splitter SC Adapter 0Outdoor 12 Core Fiber Optic Distribution Box / Ftth Terminal Box For 1x8 Optical Splitter SC Adapter 1

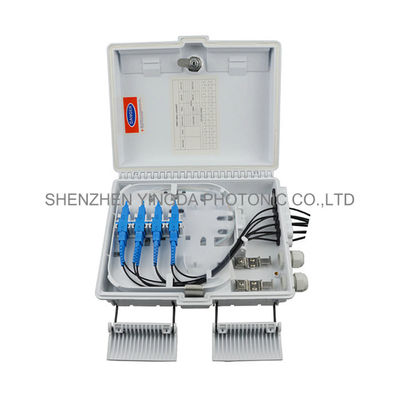

Gray Color Box

Outdoor 12 Core Fiber Optic Distribution Box / Ftth Terminal Box For 1x8 Optical Splitter SC Adapter 2Outdoor 12 Core Fiber Optic Distribution Box / Ftth Terminal Box For 1x8 Optical Splitter SC Adapter 3



Cable Entry Port can do cable gland or uncut cable express port like below:Outdoor 12 Core Fiber Optic Distribution Box / Ftth Terminal Box For 1x8 Optical Splitter SC Adapter 4



Application



1.Widely used in FTTH (Fiber To the Home) access network

2.Telecommunication Networks

3.CATV Networks

4.Data communications Networks

5.Local Area Networks

6.Suitable for Telekom UniFi



Specifications



Model FDB0216G
Dimension 250*190*39mm
Max capacity

12CORES

; PLC:1X2,1X4,1X8,1X12

Max adapter 12X SC simplex, LC duplex adapter
Max splitter ratio 1x2,1x4,1x8,2x4,2x8 mini splitter
Cable port 2in 16out
Cable diameter In: 16mm; out:2*3.0mm drop cable or indoor cable
Material PC+ABS
Color White, black, gray
Environmental requirement Working temprature : -40℃~+85℃
Relative humidity : ≤85% (+30℃)
Atmospheric pressure : 70Kpa~106Kpa
Main technical Insertion loss : ≤0.2db
UPC return loss : ≥50db
APC return loss : ≥60db
Life of insertion and extraction : >1000 times
Thunder-proo technical

The grounding device is isolated with the cabinet, isloation resistance is less than 2*104MΩ/500V(DC); IR≥2*104MΩ/500V(DC)
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture, no flashover; U≥3000V





Standard Accessories



Cabinet keys; Plastic expansion screw, Self-tapping screws; Hose clamps, Shrinkable sleeves, buffer tube, pole mount or wall mount kits etc.
