1:16 Splitter Optical Terminal Box , Fiber Optic Splitter Box With LGX Module SC/UPC Coupler

Nguồn gốc Trung Quốc
Hàng hiệu YINGDA
Chứng nhận ISO
Số mô hình FDB0216G
Số lượng đặt hàng tối thiểu 200pcs, first order accept small order
Giá bán negotiable
chi tiết đóng gói 1pc/box, 20pcs/carton box
Thời gian giao hàng 5-8working days
Điều khoản thanh toán T/T, Western Union, MoneyGram, L/C
Khả năng cung cấp 50k per month

Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
material high strength engineering PC+ABS Capacity 16cores optical fiber
Adapter SC/UPC mini splitter 1:16 plarrnar lightwave circuit coupler
color gray, black, or white size 306*240*106mm
connector insertion loss <0.3dB OME or sample ok
cable port 2inlet,16outlet, express inputs cable diameter 3-16mm
features with bucket appliation villas wall mounted
Điểm nổi bật

fiber optic closure

,

splitter distribution box

Để lại lời nhắn
Mô tả sản phẩm

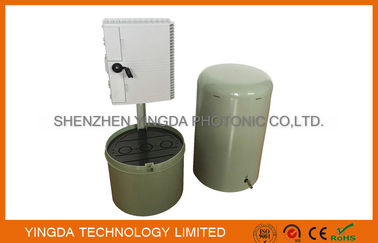

Outdoor Villas Fiber Access Terminal IP65 Plastic 16 Port Fiber Optic Termination Splitter Box With Bucket





FDB0216G optical terminal box is 2016 newly design and widely use in FTTH solution system, the unique design of bucket is especially use for villas. It is nice outer appearance, high strength, high protection to water, dust, wind,or any other harsh environment. The bucket is big enough to hold many different size of boxes on customer request.



Meanwhile, the entry of the box is 2ports, it can be cable gland to reach IP68 waterproof class or use inline through express port for un-cut cable go through the box. It is very flexible design.



The hinge and clip design of the box structure makes it more stable, stronger and more beautiful.



The dual layers of the tray is rotatable, the upwards is for adapter panel or LGX module fixture, the downwards is for fusion splice, the bottom of the box can also use for splittter module fix position on customer demand.



Welcome customer design or trial order.





Features

  1. Industry Standard User Interface, be made of high strength engineering plastic ABS+PC
  2. Can accommodate 1x4,1x8,1X16,2x4,2x8 & 2x16 PLC splitter micro module
  3. Rainfall resistant, IP65 outdoor application
  4. Up to 16 FTTH drops.
  5. Wall mounting and pole mounting application.
  6. 2 inlet ports,16 outlet ports with 16pcs adapters of SC/ LC duplex



Applications:



  • FTTH access network
  • Telecommunication Networks
  • CATV Networks
  • Data communications Networks
  • Local Area Networks

More pictures



FULLY LOAD WITH SC/UPC ADAPTER + PLC SPLITTER 1:8 WITH SC CONNECTORS

1:16 Splitter Optical Terminal Box , Fiber Optic Splitter Box With LGX Module SC/UPC Coupler 01:16 Splitter Optical Terminal Box , Fiber Optic Splitter Box With LGX Module SC/UPC Coupler 1



EMPTY BOX DETIAL VIEW1:16 Splitter Optical Terminal Box , Fiber Optic Splitter Box With LGX Module SC/UPC Coupler 21:16 Splitter Optical Terminal Box , Fiber Optic Splitter Box With LGX Module SC/UPC Coupler 3

EMPTY BOX WHOLE VIEW1:16 Splitter Optical Terminal Box , Fiber Optic Splitter Box With LGX Module SC/UPC Coupler 41:16 Splitter Optical Terminal Box , Fiber Optic Splitter Box With LGX Module SC/UPC Coupler 5



Specification



Model FDB0216G
Dimension 306*240*106mm
Cable port 2in,16out
Cable diameter 2in:φ 8mm; 16out: φ3mm
Adapter quantity 16pcs SC
PLC splitter 1x2,1x4,1x8,1x16,2x2,2x4,2x8,2x16 micro or module splitter
Max. Fusion splice 16fibers
Installation Wall mount / pole mount
Material PC+ABS
Color White, black, gray
Package information
Quantity/Carton 10cs/carton
Carton size 60*35*52cm
Gross weight/Carton 17.5kgs
Optical parameters
Insertion loss <0.3dB
Return loss >50dB/upc, 60dB/APC, 35dB/PC



1:16 Splitter Optical Terminal Box , Fiber Optic Splitter Box With LGX Module SC/UPC Coupler 6





YINGDA is specialize in fiber optic terminal box, plc splitter, patchcord, MPO truck cable, adapter, attenuator,etc. We strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.
