| MOQ: | 100 pcs |
| giá bán: | 1.1USD-4.58USD |
| Bao bì tiêu chuẩn: | 1pc/ box,80pcs/carton box |
| Delivery period: | 5-8days after payment |
| phương thức thanh toán: | Western Union, T/T, MoneyGram |
| năng lực cung cấp: | 10,000 pcs per month |

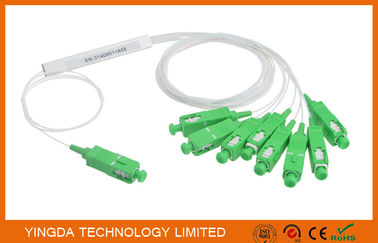

Blockless Fiber PLC Splitter 1*8 SC/APC Connectors LSZH, FTTH Optical Fiber PLC Splitter 1x8
Planar Lightwave Circuit (PLC) splitter, PLC splitters are used to distribute or combine optical signals, widely used in GPON Network. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability. 1xN PLC splitters are precision aligning process to divide a single optical input(s) into multiple optical outputs uniformly, while 2xN PLC splitters divide a dual optical input(s) into multiple optical outputs. YINGDA PLC splitters offer superior optical performance, high stability and high reliability to meet various application requirements. YINGDA is a manufacturer and supplier who can supply PLC Splitters with low price. The Polarization Maintaining (PM) PLC Splitteris also on sale. YINGDA can also provide customized services of PLC Splitters and customers can customize LOGO. Our PLC Splitters type as shown below. For any questions, please feel free to email us: sales@ydpcable.com.
Features
Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
High Reliability and Stability
Stability Telecordia GR-1221 and GR-1209
Components through TLC-Certified,Conform to YD1117-2001
Application
FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution
Telecommunication Networks
Specification
| Split ratio | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 |
| Operating Wavelength(nm) | 1260-1620nm | ||||||
| Fiber Type | G657A1 or customer specified | ||||||
| Insertion Loss (dB)P Grade | 3.8 | 7.1 | 10.2 | 13.5 | 16.5 | 20.5 | 23.8 |
| Insertion Loss (dB) S Grade | 4 | 7.3 | 10.5 | 13.7 | 16.9 | 21 | 24.2 |
| Loss Uniformity(dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2 | 2.5 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 |
| Return Loss (dB) | 55 | ||||||
| Directivity (dB) | 55 | ||||||
| Wavelength Dependent | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | 0.5 |
| Loss(dB) | |||||||
| Temperature Stability(-40- +85℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature | -40- +85℃ | ||||||
| Storage Temperature | -40- +85℃ | ||||||
More pictures

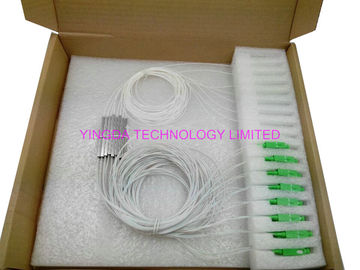

each plc splitter is good protected in foam and then put in small carton box, each box with 4pcs SCAPC 1x8 PLITTER ,and then in carton box, high quality and high impact package for box.
all connectors and cables pack inside is fixed with Adhesive tape, it can be taken off very easy by hand, no glue left. not influence the quality of the connectors and cables.
each splitter with test reports.
Order information
| Type | Package size | Port | Fiber Type | Input/output | Fiber length | connector |
| PLCS | BF=bare fiber FO=fan-out MD=module MB=metal box |
01X02 01x04 01x08 …… 02x16 02x32 02x64 |
0=G652D 1=G657A C=Customize |
1=bare fiber 2=900µm tight buffered 3=2.0mm Loose tube 4=3.0mm Loose tube |
1=1m 2=1.5m C=Customize |
0=no connector 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST/APC 6=ST/PC 7=LC/AP 8=LC/PC C=customize |
Some Views of PLC Production Procedure
băng hình
băng hình
băng hình
băng hình
băng hình
|
|
