| Tên thương hiệu: | YINGDA |
| Số mẫu: | 1*16 mini splitter |
| MOQ: | 100 pcs |
| giá bán: | 1.1USD-4.58USD |
| Thời gian giao hàng: | 5-8days after payment |

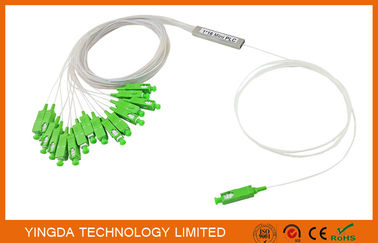

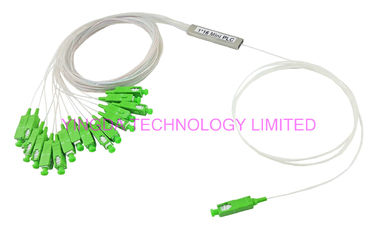

FTTH Optical Splitter 1:16, 1x16 SC/APC Blockless PLC Splitter Single Mode 900um LSZH
Features
Ø Low insertion loss, Low PDL and High reliability
Ø High return loss and Good repeatability
Ø Wide wavelength range
Ø Excellent channel-to-channel uniformity
Applications
Ø LAN, WAN and Metro Networks
Ø FTTH project & FTTX Deployments
Ø CATV System
Ø GPON, EPON
Ø Fiber Optic Test Equipment
Ø Data-base Transmit Broadband Net
PLC Splitter Steel Tube
More pictures
Product is pack by carton box, not blister. 2pcs in a box, then 20pcs in a shipping box. Good and high protection to fiber and steel tube, connectors.
All connectors, cable, plc chip is test 100% before in factory. and each with figure ring for better identification on-site constructions.
Technical Specs for PLC Splitter with Connector
1xn SPLITTER
| Item | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 | |
| Fiber Type | G.657.A | |||||||
| Working Wavelength | 1260nm~1650nm | |||||||
| Standard Insertion Loss(dB) | ≤4.2 | ≤7.6 | ≤10.7 | ≤14.0 | ≤17.2 | ≤20.8 | ≤24.0 | |
| P-Grade Insertion Loss(dB) | ≤4.0 | ≤7.4 | ≤10.5 | ≤13.8 | ≤17.0 | ≤20.4 | ≤23.7 | |
| Uniformity(dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 | |
| PDL(dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 | |
| Wavelength Dependent Loss(dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 | |
| Return Loss(dB) | ≥50 | |||||||
| Directivity(dB) | ≥55 | |||||||
| Operating Temp.Gange | -40℃~+85℃ | |||||||
| Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB. | ||||||||
2XN splitter
| Item | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | 2x128 | ||
| Fiber Type | G.657.A | ||||||||
| Working Wavelength | 1260nm~1650nm | ||||||||
| Standard Insertion Loss(dB) | ≤4.4 | ≤8.0 | ≤11.0 | ≤14.6 | ≤17.8 | ≤21.0 | ≤24.4 | ||
| P-Grade Insertion Loss(dB) | ≤4.2 | ≤7.7 | ≤10.8 | ≤14.1 | ≤17.4 | ≤20.7 | ≤24.0 | ||
| Uniformity(dB) | ≤0.8 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.0 | ≤3.0 | ||
| PDL(dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 | ||
| Wavelength Dependent Loss(dB) | ≤0.8 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.0 | ≤3.0 | ||
| Return Loss(dB) | ≥50 | ||||||||
| Directivity(dB) | ≥55 | ||||||||
| Operating Temp.Gange | -40℃~+85℃ | ||||||||
| Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB. | |||||||||
Special notes:
This product can be customized according to your requirements.
Please contact me to confirm everything before you pay. Thank you.
All the goods are inspected and tested 100% before shipment with test report
The shipping and handling charge is all bared by customers if not mentioned especially.
Trade term:EXW, FOB.
TT 100% in advance, no credit or L/C
