| Tên thương hiệu: | YINGDA |
| Số mẫu: | AD-LC-SM-Q4 |
| MOQ: | 1000 pcs |
| giá bán: | 0.04USD-2.15USD |
| Thời gian giao hàng: | 3working days |
| Điều khoản thanh toán: | T/T or western Union |

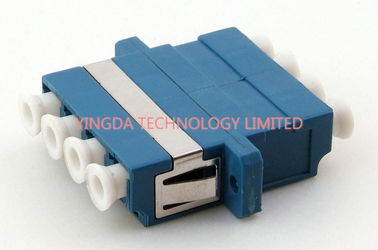

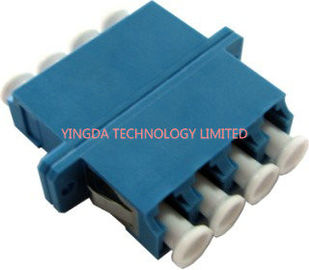

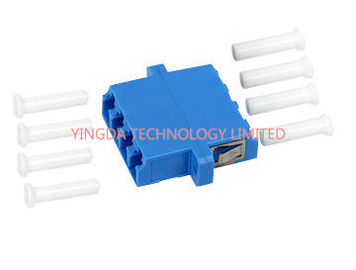

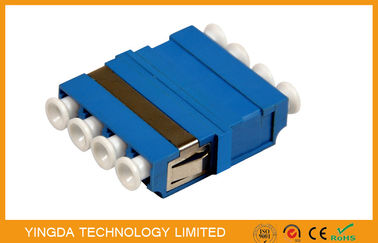

Fiber Optic Adapter LC 4Way Blue, LC Optical Adapter, LC/PC Adpater SM / MM
Features
This coupler provides a solution for extending a current run of fiber optic cabling. This coupler
is constructed from highgrade plastic and has been designed and engineered for durability
and a long life.
Adapter Drawing
Material List:
Optical characteristic
|
Optical Performance
|
Premium Grade |
Standard Grade |
|
Insertion Loss |
≤0.1dB |
≤0.2dB |
|
Durability |
1000 times |
1000 times |
Environment and Mechanical Properties
|
Item |
Test condition |
Conformance |
Test result |
|
Vibration |
10-55Hz, 1.5mm, 60min |
IEC61300-2-1 |
≤0.2dB |
|
Mating Durability |
1000 Mating, clean every 25 mating. |
IEC61300-2-2 |
≤0.2dB |
|
Impact |
1.5m, 8 drops |
IEC61300-2-6 |
≤0.2dB |
|
Strength of Coupling Mechanism |
40N, 10Min, L=22-28cm |
IEC61300-2-12 |
≤0.2dB |
|
Temperature Cycling |
40ºC to +75ºC, 40 cycles |
IEC61300-2-22 |
≤0.2dB |
|
Temperature humidty cycling |
40ºC, 95%, 96Hr |
IEC61300-2-21 |
≤0.2dB |
|
Operating Temperature |
-40ºC to +85ºC |
|
≤0.2dB |
|
Storage Temperature |
-40ºC to +85ºC |
|
≤0.2dB |
More product show:
Product application occasions:
băng hình
băng hình
băng hình
|
|
