| MOQ: | 100PCS |
| giá bán: | Có thể đàm phán |
| Bao bì tiêu chuẩn: | 1 pc / plastoc bag |
| Delivery period: | 3-5 days |
| phương thức thanh toán: | T/T or western Union |
| năng lực cung cấp: | 50,000pcs per month |

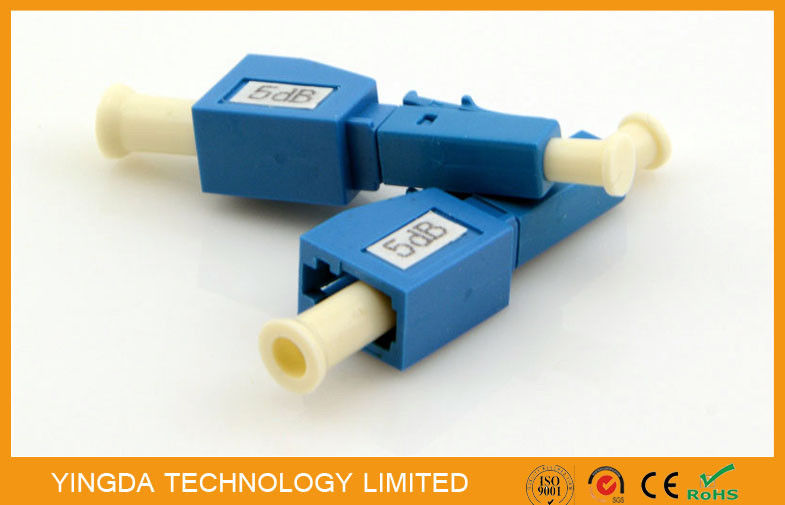

Fiber Optic Female to Male Plug-in Type attenuator (F-M attenuator) is a kind of attenaution
adjustable attenuator which one end is connector type, the other end is adapter type (known as
male to female) .
Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation
in order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.
Features
Application
According to the ferrule end face it can be divided into PC and APC inclined eight degrees,
attenuation is very selective, 0 ~ 30dB optional, wavelength 1250 to 1650nm.
Due to mature production process, high test and quality control, now you can order 1dB,2dB,
3dB,5dB,7dB, 10dB,15dB, 20dB, 25dB,etc.
Technical Parameter
|
Return Loss |
≥45dB(SPC), ≥55dB(UPC), ≥65dB(APC) |
|
Attenuation Tolerance(dB) |
1-5dB＜±0.5 dB |
|
5-10dB＜±10% |
|
|
11-25dB＜±5% |
|
|
Operating Wavelength(nm) |
1310±10nm |
|
1550±10nm |
|
|
1310 and 1550±10nm |
|
|
Operating Temperature(℃) |
-40℃～+75℃ |
|
|
| MOQ: | 100PCS |
| giá bán: | Có thể đàm phán |
| Bao bì tiêu chuẩn: | 1 pc / plastoc bag |
| Delivery period: | 3-5 days |
| phương thức thanh toán: | T/T or western Union |
| năng lực cung cấp: | 50,000pcs per month |
Fiber Optic Female to Male Plug-in Type attenuator (F-M attenuator) is a kind of attenaution
adjustable attenuator which one end is connector type, the other end is adapter type (known as
male to female) .
Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation
in order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.
Features
Application
According to the ferrule end face it can be divided into PC and APC inclined eight degrees,
attenuation is very selective, 0 ~ 30dB optional, wavelength 1250 to 1650nm.
Due to mature production process, high test and quality control, now you can order 1dB,2dB,
3dB,5dB,7dB, 10dB,15dB, 20dB, 25dB,etc.
Technical Parameter
|
Return Loss |
≥45dB(SPC), ≥55dB(UPC), ≥65dB(APC) |
|
Attenuation Tolerance(dB) |
1-5dB＜±0.5 dB |
|
5-10dB＜±10% |
|
|
11-25dB＜±5% |
|
|
Operating Wavelength(nm) |
1310±10nm |
|
1550±10nm |
|
|
1310 and 1550±10nm |
|
|
Operating Temperature(℃) |
-40℃～+75℃ |
