Flange Type Fixed SC SM Attenuator 1dB , 2dB , 3dB , 4dB , 5dB , 7dB , 10dB
Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xAttenuation | 15dB | test wavelength | 1310nm, 1550nm |
---|---|---|---|
body material | metal | Additional loss | 0.1dB |
Working temperature | -40~+85 (℃) | Fiber optic type | single-mode |
industry standard | Telcordia TA-NWT-001209 | connector type | SC/PC |
dust cap | plastic black | connector | sc optical attenuator build out |
Điểm nổi bật | build out attenuator,optical fiber attenuator |

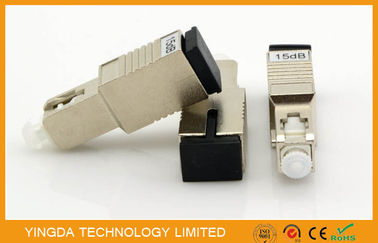

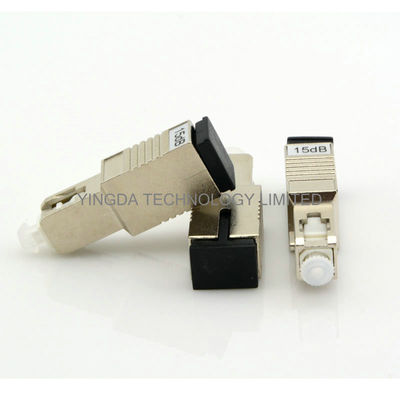

SC SM Attenuator, Flange Type Fixed, 1dB,2dB, 3dB, 4dB, 5dB, 7dB, 10dB
Optical fiber attenuator as a kind of optical passive device, debug the optical power, debug optical
instrument calibration, and use for optical signal attenuation. It is made of attenuation optical fiber
which mix with metal ions, so it can adjust the light power to the required level.
Specification
- Wavelength: 1260~1620nm
- Initial Insertion Loss < 1.0dB
- Attenuation Range:1dB-60dB
- Fiber: SMF-28e
- Cable option: bare fiber/0.9mm loose tube/2mm cable
- Connector Option: FC/SC/LC.etc.
Order information
MVOA |
Fibery type |
Cable diameter |
Fiber length |
Connector type |
|
A=SM S=customer specify |
3=3mm fiber 2=2mm fiber 09=900 loose tube S=customer specify |
01=1M 02=2M S=customer specify |
0=None 1=FC/PC 2=FC/APC 3=SC/APC 4=SC/PC 5=ST 6=LC 7=customer specify |
Order information
Attenuator |
Item |
Adapter type |
|
FC/APC fixed attenuator 1/2/3/4/5/8/10/15dB |
|
SC/PC fixed attenuator 1/2/3/4/5/10/15dB |
|
SC/APC fixed attenuator 1/2/3/4/5/8/10/15dB |
|
Female to male type (F-M) |
FC/SM/UPC build out (plug-in) attenuator 1/2/3/4/5/10/15dB |
SC/SM/UPC buid out (plug-in) attenuator 1/2/3/4/5/10/15dB |
|
FC/SM/APC build out (plug-in) attenuator 1/2/3/4/5/10/15dB |
|
SC/SM/APCbuild out (plug-in) attenuator 1/2/3/4/5/10/15dB |
|
LC/SM/APC build out (plug-in) attenuator 1/2/3/4/5/10/15dB |
|
Variable(VOA) type |
FC/LC/ST/SC connector mechanical 1~30dB Variable attenuator (MVOA attenuator) |
All types Fiber Optic Buiid Out Attenuator:
