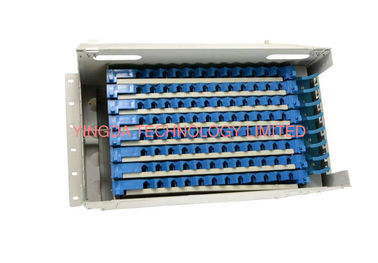

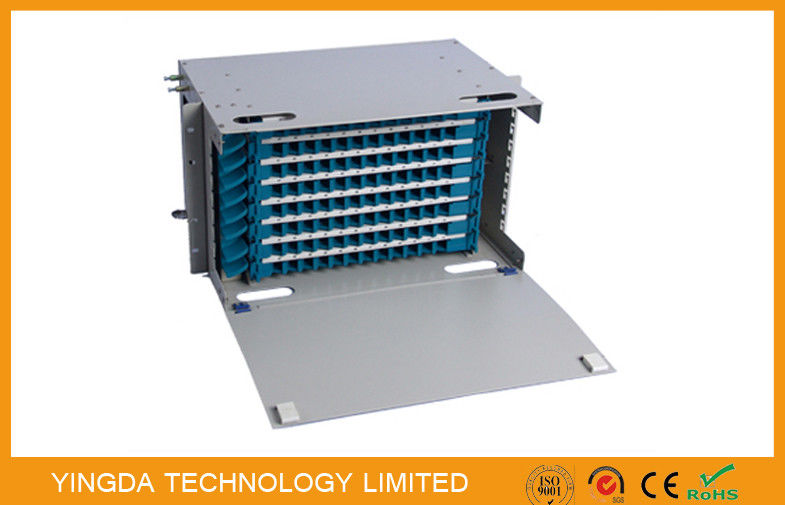

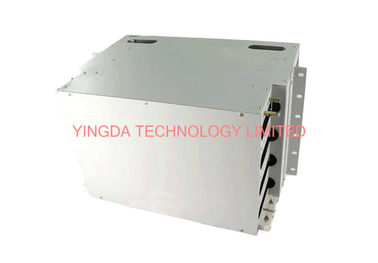

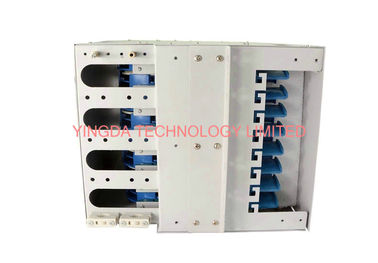

SC ODF 96 Port Patch Panel Fiber Optic Distribution Frame Welding Tray 12 Fibers

MOQ:	50PCS
giá bán:	Có thể đàm phán
Bao bì tiêu chuẩn:	1pc / carton box
Delivery period:	7 days
phương thức thanh toán:	T/T or western Union
năng lực cung cấp:	50,000pcs per month

Thông tin chi tiết

Mô tả sản phẩm

Đánh giá & Nhận xét

Thông tin chi tiết

Nguồn gốc

Trung Quốc

Hàng hiệu

YINGDA

Chứng nhận

ISO, SGS

Model Number

ODF-UT96-SC/FC

Working temperature::

-40～+85 (℃)

Fiber optic type:

singlemode or multimode

material:

cold rolled steel sheet

connector type:

FC, SC ,LC, ST, E2000

weight:

11kgs

polish:

UPC APC PC

welding tray capacity:

12 Fibers

dimension:

485*300*252 mm

max capacity:

96cores

welding tray qty:

8 pcs

Làm nổi bật:

rack mount odf

sliding patch panel

Mô tả sản phẩm

96 Core SC ODF Patch Panel Fiber Optic Distribution Frame Welding Tray 12Fibers

ODF optical fiber distribution frame is standard 19 inch chassis, capacity from 12 core to 96core,

high density, all modular design. This unit box make fiber splicing, fiber cable storage, cable

distribution in one set, each fused distribution module can be individually extracted, satisfy the

need of on and off the frame operation.

Large capacity optical distribution frame also are good operation, fused distribution module can

be installed FC, SC,ST, LC and many other adapters, and is suitable for common fiber optic

pigtails and ribbon pigtail, equipped with 12 core integrated fiber melting unit tray, can be

directly welded.

Main Technical Parameters

Environment temperature	-5 ~+45°C
Relatively humidity	≤85% (+30°C)
Atmospheric pressure	70~166 KPa
Connector attenuation (Interchangeable and repeat)	≤0.5dB
Insertion loss	≤ 0.3dB
Return loss	APC ≥ 60dB; UPC ≥ 50dB; PC ≥ 45dB

Pressure between high voltage protection place and distribution frame: ≥ 3000V (DC), 1min no breakdown, no arc
Isolation resistance between high voltage protection place and distribution frame: ≥ 100MΩ/ 500V (DC)
By cascading 12 port splice integration module, configurable 12-144 core, 12 core per tray
Clamping FC/SC/ST/LC adapter, the adapter was 30 degrees arrangement, ensure the jumping fiber bending radius≥40mm, but also can avoid the laser burns eyes.

Structure features

Made of high quality cold-rolled plate and the surface electrostatic spray, beautiful appearance
The downward and the side door use imported lock
The bar adapter panel can be installed adapters like: FC, SC, ST, LC,etc
Configure reinforced core and cable fixed seat,complete accessories

Performance advantage

Good sealing performance, flexible configuration, quick installation
Set three functions: the optical fiber splice, cable storage, cable distribution in one set
Easy operation, reliable grounding, protect the safety
The full protection of the jumping fiber, ensure the bending radius ≥ 40mm

Spare parts:

Splice tray, sleeve, buffer tube

SC ODF 96 Port Patch Panel Fiber Optic Distribution Frame Welding Tray 12 Fibers 0
