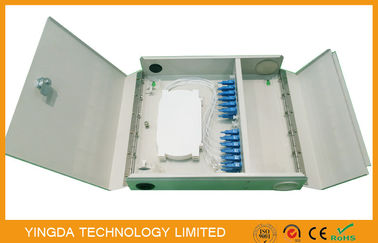

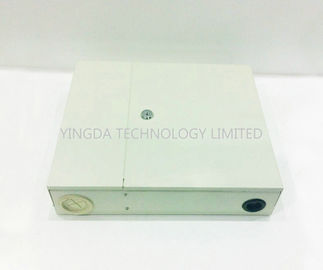

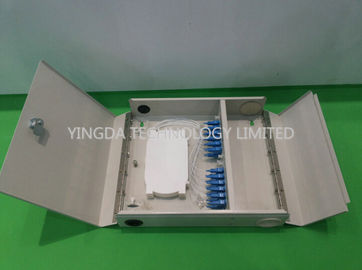

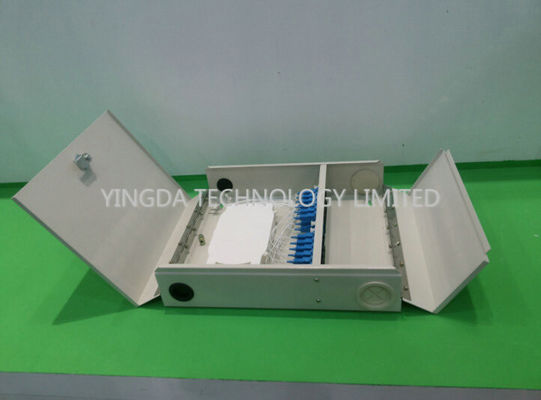

Two Door single / multi mode Fiber Optic Termination Box Cold Rolled Steel Sheet Material

MOQ:	100 pcs
giá bán:	0.18USD-4.29USD
Bao bì tiêu chuẩn:	1pc / box, 5 pcs / carton box
Delivery period:	8 days after payment
năng lực cung cấp:	500,000 pcs per month

Thông tin chi tiết

Mô tả sản phẩm

Đánh giá & Nhận xét

Thông tin chi tiết

Nguồn gốc

Trung Quốc

Hàng hiệu

YINGDA

Chứng nhận

ISO SGS ROHS

Model Number

GP(05)D

material:

cold rolled steel

color:

white

max capacity:

24 fibers

adapter:

FC SC ST LC

cable ports:

4 Pcs

application:

FTTH FTTX FTTB ODN PON network

dimension:

350*300*80mm

thickness:

1.0mm

fiber type:

singlemode, mulitmode

Làm nổi bật:

fiber optic junction box

fiber optic distribution box

Mô tả sản phẩm

Indoor Two Door Wall Mounted Fiber Terminal Box, Fiber Optic Termination Box Wall Mount

Wall Mount Fiber Optic Cable Distribution Box GP(05)D series is distribution equipment to connect,

protect and management the fiber and cable in fiber optic communication networ. It consist of

termination access module and rack. The device can realize the optical fiber fixed, ground protection,

optical fiber connection, rational distribution, redundant fiber coiling, distribution scheduling,etc.

Advantage:

Cold rolled steel sheet,electrostatic spraying.
Available for 24pcs adapters FC,ST,SC,LC
Wall mount
max capacity: 24cores
Dimension: 350*300*80mm ,small size
package: plastic bag,bubble bag,then carton box
1 year guarantee
two door open, with individual key, safe and easy to operate and convenient.

Features

Available for small capacity communication system,wall mounting,compact structure,harmonized with machine room
The cabinet is composed of two parts,one links with optical cables for fusion
connection between optical cable and fiber pigtail and another links with patch cord.
Provide fusion and storage for optical cables
Reliable protection appliance of fixing,stripping and earthing for optical cables.
Whole range protected design for fiber lay to ensure the bending radius=40mm
Provide various accessories to avoid any unexpected damage to the fiber

Specification

Type

Dimension

(mm)

Max capacity

(core)

Carton size

(mm)

GW.

(kg)

Qty/carton

(pc)

GP(05)D-FC24

350*300*80

405*355*605

19.5

GP(05)D-SC24

350*300*80

405*355*605

19.5

Electrical and Envrionment properties

Connector attenuation (insertion, exchange, repeat)	≤ 0.3dB
Return loss:	APC≥60dB,UPC≥50dB,PC≥40dB
Insulation resistance	≥1000MΩ/500V (DC)
High voltage	3000V (DC) /1min, no breakdown, no arc.
Grounding wire cross-sectional area	>6mm2, obvious grounding symbol
working temperature	-40 degrees ~+70 degrees
storage temperature	-40 degrees ~+70 degrees
Humidity	<90% 3: (+30 C)
atmospheric pressure	62Kpa ~ 106Kpa
Service life	20years

Application

Cable introduce, fix and strip protection, optical fiber splice and protection, pigtail storage,
patch cord storage and management, optical fiber fixed connected and cross connection;
It also can install optical splitters, wave division multiplexer WDM and other value-added module according to the requirements of customers.
Terminate, use and manage between wiring room and equipment room.
