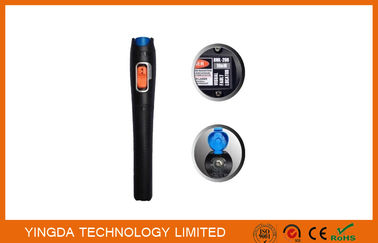

Fiber Optical Visual Fault Locator BML-206 10mw 1mw 15mw 20mw 25mw 30mw Sc Fc Connector

Tên thương hiệu: YINGDA
Số mẫu: BML-206
MOQ: 1 piece
giá bán: Có thể đàm phán
Thời gian giao hàng: 3 days
Thông tin chi tiết
Nguồn gốc:
Trung Quốc
Chứng nhận:
ISO
Central Wavelength:
650nm±20nm
Output Power:
10mw, 1mw 15mw, 20mw, 25mw, 30mw can offer
Operating Model:
Pulsed (2Hz) and CW
dimension:
175 *26 * 26mm
net weight:
50g (Without battery)
Optical Connector:
2.5mm or 1.25mm Universal connector
Power Supply:
2 x AA alkaline batteries
warrranty:
1 year
Packaging Details:
1pc per box
Làm nổi bật:

fiber optic tool kits

,

fiber polishing film

Mô tả sản phẩm

Fiber Optical Visual Fault Locator BML-206 10mw  1mw 15mw 20mw 25mw 30mw Sc Fc Connector





FEATURES:

  • Bright red laser at 650nm
  • Pulsed and CW operation
  • 50 hours of operation(typical)
  • Standard AA alkaline batteries
  • Rugged and weatherproof design
  • 2.5mm universal connector
  • One-year warranty and recommended calibration interval



SPECIFICATIONS



BML205

BML205-1

BML205-10

BML205-15

BML205-20

BML205-25

BML205-30

BML206

BML206-1

BML206-10

BML206-15

BML206-20

BML206-25

BML206-30

BML207

BML207-1

BML207-10

Output Power

> 1mW

> 10mW

> 15mW

> 20mW

>25mW

>30mW

Dynamic Distance *

> 5 km

8~10 km

12~14 km

15~17 km

18~20 km

25~30 km

Wavelength

650nm±20nm

Operation Mode

Pulsed (2Hz) and CW

Connector **

2.5mm or 1.25mm Universal connector



* The distance is tested by G.655, single mode, lab level fiber, loss<5dB/KM
** Standard connector is 2.5mm UPP, 1.25mm UPP will be customized and increase the cost





GENERAL SPECIFICATIONS



Size(H*W*D)

175mm *26mm * 26mm

Weight

BML205/207: 80g, BML206: 50g

Storage Temperature

-20 -- +60℃ , < 90%RH

Operating Temperature

-10 -- +50℃ , < 90%RH



ACCESSORIES



BML205/207 Standard

BML206 Standard

Soft Bag*1

Packing Box*1 (Quick guide printed on box)

Quick Guide*1



Packing Box*1





Fiber Optical Visual Fault Locator BML-206 10mw 1mw 15mw 20mw 25mw 30mw Sc Fc Connector 0Fiber Optical Visual Fault Locator BML-206 10mw 1mw 15mw 20mw 25mw 30mw Sc Fc Connector 1

Fiber Optical Visual Fault Locator BML-206 10mw 1mw 15mw 20mw 25mw 30mw Sc Fc Connector 2Fiber Optical Visual Fault Locator BML-206 10mw 1mw 15mw 20mw 25mw 30mw Sc Fc Connector 3
