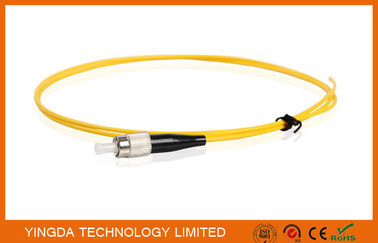

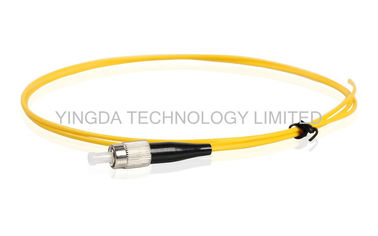

FC UPC SM SX Pigtail 1.6mm LSZH, Fiber Optic Pigtails FC PC Single Mode Simplex
YINGDA offers an FC Tunable Pigtail with four-position tuning for applications requiring precise fiber
alignment. A specially designed FC PM Pigtail is available for use with Polarization Maintaining Fiber.

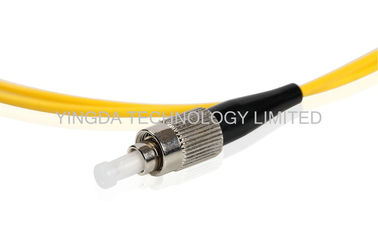

FC Fiber Optic Pigtail was one of the most popular Pigtails. It use a 2.5mm ferrule, but some of
the early ones use ceramic inside stainless steel ferrules. It screws on firmly, but you must make
sure you have the key aligned in the slot properly before tightening. It's been mostly replaced by
SC and LC. However,due to easy assemblies and installation, YINGDA produced FC Fiber Optic
Pigtails are every competitive.
FC Fiber Optic Pigtails is available in both single-mode and multimode, and is fully inter-mateable
with NTT-FC products. Both single-mode and multimode come with a zirconia ceramic ferrule with
pre-polished PC profile and convex spherical end. These end-face types allow for faster polishing,
and low back reflection and optical loss, while ensuring maximum repeat-ability.
Application
Features
Specification
|
Connector type |
LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC. MU/AP Duplex MTRJ/Female, MTRJ/Male |
|
Fiber Type |
9/125um SMF-28 or equivalent (Single mode) OS1, (Multi-mode) 50/125um OM1, 62.5/125um OM2 & 50/125um, 10G OM3, OM4 |
|
Cable Type |
Simplex, Duplex (Zip cord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH |
|
Polishing Manner |
UPC,SPC,APC (8°& 6°) |
|
Insertion Loss |
≤ 0.1dB (For Single mode Master); ≤ 0.25dB (For Single mode Standard) ; ≤ 0.25dB (For Multi-mode) ; Tested by JDS RM 3750 |
|
Return Loss (For Single mode) |
UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750 |
|
Repeat ability |
±0.1dB |
|
Operating Temperature |
-40°C to 85°C |
|
Geometry Requirement (For Single mode) |
Ferrule End face Radius: 7mm ≤ R ≤ 12mm (For APC); 10mm ≤ R ≤ 25mm (For Standard); Apex Offset ≤ 30 μm (For Master); Apex Offset ≤ 50 μm (For Standard); Undercut -50nm ≤ U ≤ 50nm; Tested by DORC ZX-1 |
Ordering Information
FC / UPC SM 9/125 SIMPLEX 1.6mm –1M LSZH
① ② ③ ④ ⑤ ⑥ ⑦
① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um), OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH
