Kết nối cáp quang
Created with Pixso. Fiber 1:16 PLC splitter Box Outdoor Fiber Optic Distribution Enclosure Mini FTTH Termination Box cajas nap box IP65

Fiber 1:16 PLC splitter Box Outdoor Fiber Optic Distribution Enclosure Mini FTTH Termination Box cajas nap box IP65

Tên thương hiệu: YINGDA
Số mẫu: GP-16
MOQ: 100 PC
giá bán: Có thể đàm phán
Thời gian giao hàng: 7 ngày sau khi nhận được thanh toán
Điều khoản thanh toán: T/T, Moneygram, Liên minh phương Tây
Thông tin chi tiết
Nguồn gốc:
Trung Quốc
Chứng nhận:
ISO
Vật liệu:
ABS PC
Công suất tối đa:
Đóng cửa 16 lõi
Cổng cáp:
đóng cửa nội tuyến 3in 3out
Đường kính cáp:
8-23mm
Kích thước:
445*215*130mm
Lớp chống thấm:
IP68
Ứng dụng:
trên không, bị chôn vùi, dưới lòng đất, ống dẫn, đường ống dẫn, cửa cống
Nhiệt độ làm việc:
-40℃ đến +65℃.
chi tiết đóng gói:
1 cái/hộp, 10 cái/hộp các tông
Mô tả sản phẩm

Fiber 1:16 PLC splitter Box Outdoor Fiber Optic Distribution Enclosure Mini FTTH Termination Box cajas nap box IP65


Features

  • Advanced internal structure design
  • Easy to re-enter, it never requires re-entry tool it
  • The closure is spacious enough for winding and storing fibers
  • Fiber Optic Splice Trays(FOSTs) are design in SLIDE-IN LOCK and its opening angle is about 90°
  • The curved diameter meets with international standard
  • Easy and fast to increase and reduce FOSTs
  • Straight-through for uncutting and branching for cutting the fiber


Application

  • Suitable for bunchy & ribbon fibers
  • Aerial, underground, wall-mounting, hand holeFiber 1:16 PLC splitter Box Outdoor Fiber Optic Distribution Enclosure Mini FTTH Termination Box cajas nap box IP65 0-mounting
  • Pole-mounting and duct-mounting




GJS fiber optic splice enclosures are widely used in all kinds of fiber optic networks for cable distribution, fusion splice and connection, it can use unuct cable go through the box directly, and large capacity application.

-------------------------------------------------------------------------------------------------------------------------------------------------------

This splice enclosure is locked by 4 brackets, after insert will lock with screws. If need to open, should with hammer, which ensure good sealing  performance even in underground buried application.

-------------------------------------------------------------------------------------------------------------------------------------------------------


Total 6 round ports for feeder cable in and out, 2 ports are 8-16mm, 2 ports are 8-20mm, 2 ports are 8-23mm diameter, which meet all kinds of cable requirments and distribution. All cables ports with rubber seal and plug fitting, after cable enter, there will be press board with cable fixtures and grounding device for underground use.

-------------------------------------------------------------------------------------------------------------------------------------------------------

GJS-16 Horizontal splice closure maximum can install 6pcs 24cores fusion trays, if ribbon can use 288cores optical fiber cable. This fiber optic splice tray is overlap with grommets itself and velcro tape to fix it in place, keep it in good condition during long time transportation.


-------------------------------------------------------------------------------------------------------------------------------------------------------


Standard accessory

Special plastic wrench, hexagon wrench, nylon ties, heat shrink protection tubes, hanging hook, labeling paper, insulation tape, seal tape, etc.


Optional accessory

Air valve, earthing wire, buffer tube, pole mount kits, wall mount kits, etc.

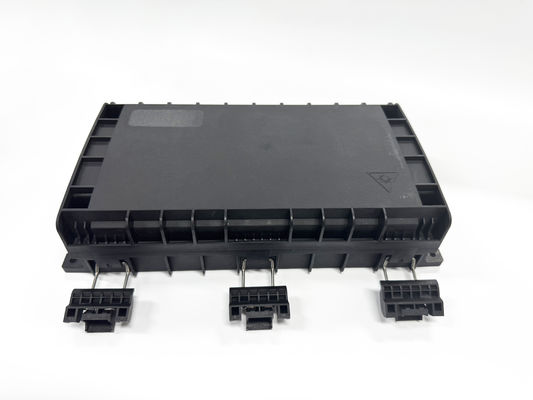

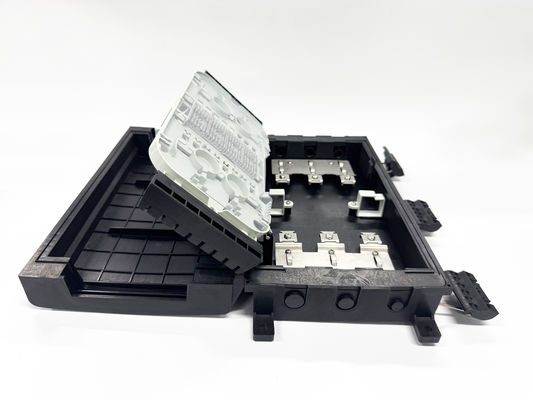

Fiber 1:16 PLC splitter Box Outdoor Fiber Optic Distribution Enclosure Mini FTTH Termination Box cajas nap box IP65 1Fiber 1:16 PLC splitter Box Outdoor Fiber Optic Distribution Enclosure Mini FTTH Termination Box cajas nap box IP65 2

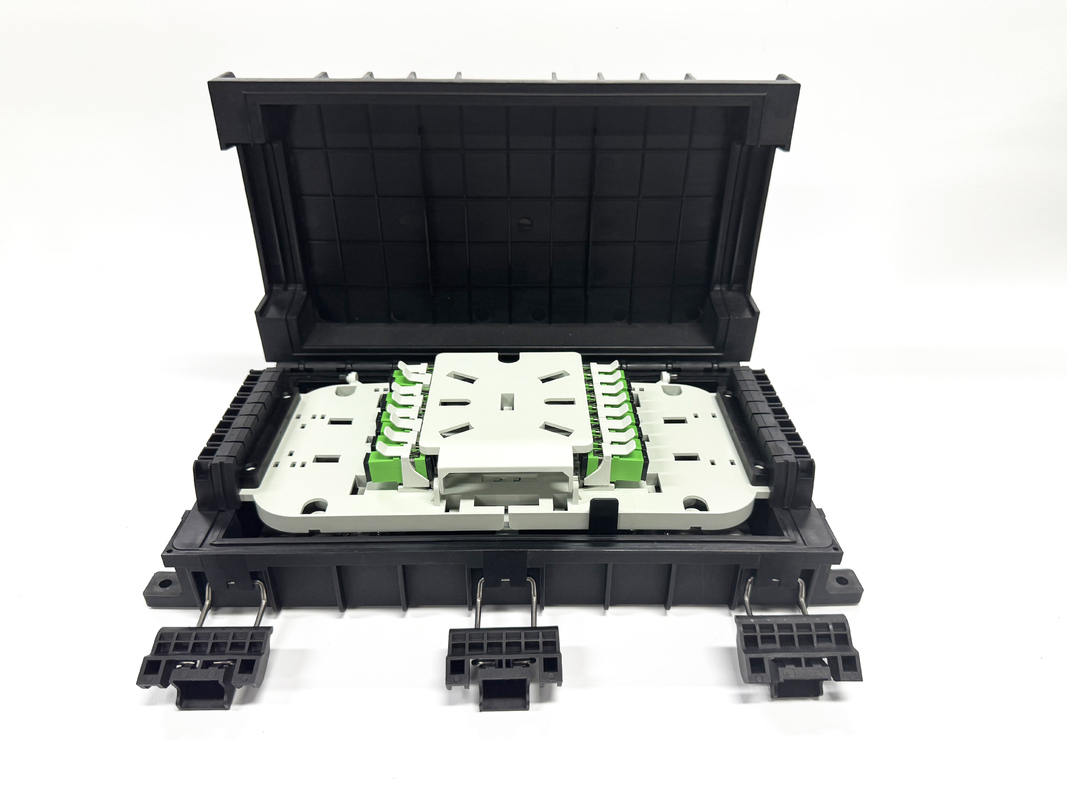

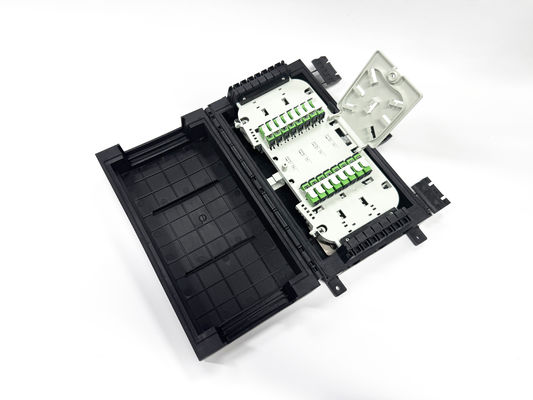

Fiber 1:16 PLC splitter Box Outdoor Fiber Optic Distribution Enclosure Mini FTTH Termination Box cajas nap box IP65 3Fiber 1:16 PLC splitter Box Outdoor Fiber Optic Distribution Enclosure Mini FTTH Termination Box cajas nap box IP65 4
