| Tên thương hiệu: | yingda |
| Số mẫu: | YDPLC-AM-108-SASA-0.9MM |
| MOQ: | 10pcs |
| giá bán: | 1.1USD-4.58USD |
| Thời gian giao hàng: | 7 ngày |
| Điều khoản thanh toán: | L/C, T/T, Liên minh phương Tây |
Fiber Optical Splitter 1x8 ABS G657A1 0.9MM Inlet and Outlet Cable with SC/APC for GPON/EPON Compatible 4G 3G

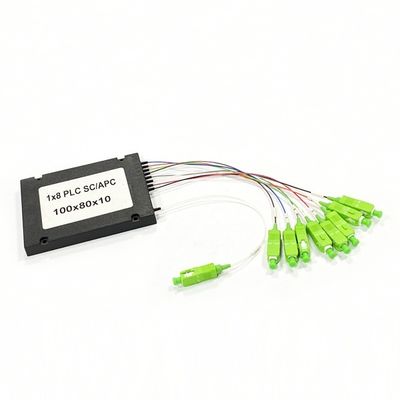

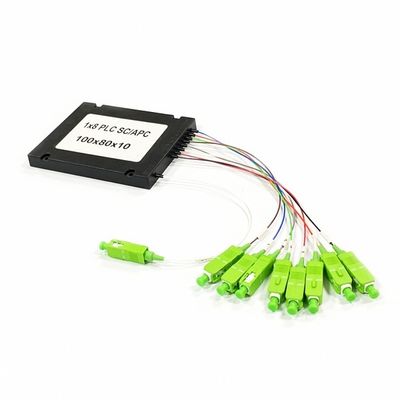

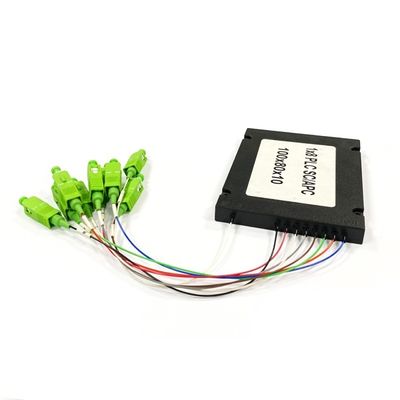

1x8 ABS PLC Optical Splitter Module SC/APC Single mode G657A1 LSZH 0.9mm Colored Blister Pack
1X8 ABS SPLITTER is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
ABS PLC splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products (outdoor fiber distribution box) or network cabinets.
Yingda can offer 1x2 1x4, 1x8, 1x16, 1x32 1x64 split ratio, and package be mini module, ABS module, LGX modular, rack type, or closure type of optical plc splitters on different application.
Technical specification
| Optical Performance | Unit | Specification | |
| Insertion Loss (without Connector) | MAX | dB | 3.9 |
| Insertion Loss of Connector | MAX | dB | 0.1 |
| Insertion Loss (with Connector) | MAX | dB | 4.1 |
| Uniformity Loss | MAX | dB | 0.6 |
| Polarization Dependent Loss | MAX | dB | 0.3 |
| Wavelength Bandwidth | MIN | nm | 1260~1650 |
| Return Loss (All Port) | MIN | dB | 50 |
| Directivity | MIN | dB | 55 |
| Operating Temperature | oC | dB | -40~85 |
| Labelling (Label Material & Dimension) | - | 75*50(mm) | |
| Serialization (Laser Marking or others) | - | Label | |
| PLC Splitter Packing | - | ABS Plastic Box | |
| Package Diemension | - | 10*80*100(mm) | |
| Fiber Type | - | G657A1 | |
| Fiber Color | - | Input: Original Output: Original |
|
| Tube Type | - | Φ0.9, LSZH | |
| Tube Color | - | Input: Yellow Output: Yellow |
|
| Connector Type | - | Input: FC/APC Output: FC/APC |
|
| Individual Test Data Sheet Format | Hardcopy | 1310, 1490, 1550nm ILUFPDL | |
Product Details

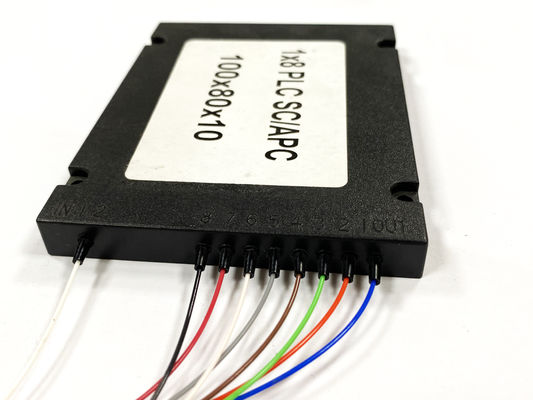

The box itself is printed with IN, OUT and number 1345678, which is convenient to identify the inlet and outlet and optical fiber classification, maintenance and luminous test.
There is a white indication ring at the inlet and outlet of the optical cable, which is fast and easy to find the fiber that we need.
We can make custome LOGO oem stickers here, or with our netural labels as below, include product name, part number, and serial number, etc.
If customer have special request, please let us know.
Applications:
Features:
Order information
| Model | Split ratio | Box size / mm | Connectors |
| YDPLC-AM-102 | 1X2 | 100*80*10 | SC/UPC=SU |
| YDPLC-AM-104 | 1X4 | 100*80*10 | SC/APC=SA |
| YDPLC-AM-108 | 1X8 | 100*80*10 | FC/UPC=FU |
| YDPLC-AM-116 | 1X16 | 120*80*18 | FC/APC=FA |
| YDPLC-AM-132 | 1X32 | 120*80*18 | LC/UPC=LU |
| YDPLC-AM-164 | 1X64 | 100*40*6 | LC/APC=LA |
| YDPLC-AM-202 | 2X2 | 100*80*10 | ... |
| YDPLC-AM-... | ... | ... | ... |
