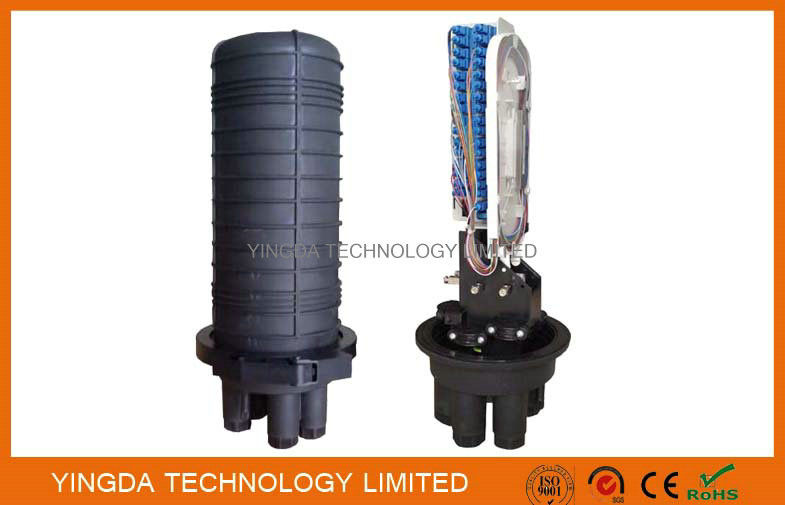

PP Mechanical Fiber Optic Enclosures For SC Adaptor Pole Mount Splice Fiber Optic Joint Box
Model: GJS-306
GJS-306 is dome splicing closure, It has function of direct connection and branch connection and
protection for connectors. Ip 68 RATED, IT CAN INSTALL 1 PC 2X32 plc splitter and 2pcs 2x 16 PLC
splitters, with four small cable inlets and 1 big cable inlet. Vulcanized rubber sealing material, suitable
for aerial, pole, wall mounted, and buried installation.
Features:
Product Pictures
| 1 | Case | 4 | Plastic clamp |
| 2 | Cable storage part | 5 | Base |
| 3 | O-shape sealing ring | 6 | Grounding part |
Main parts:
| S/n | Item | Quanitty | Usage | Note |
| 1 | Case | 1 | Protection | |
| 2 | Storage tray | Upon requirement | Fix cable, protect sleeve,store and split cable | |
| 3 | PLC splitter (maxi. 2x32) |
2:32 (1pc) 2:16 (2pcs) |
Splitting | Optional |
| 4 | Sc adapter | 36 | Connection | Optional |
| 5 | Sc -1.5meter pigtails | 32 | Splice or direct connect drop cable | Optional |
| 6 | Base | 1 | Fix | |
| 7 | Plastic clamp | 1 | Fix the base and case | |
| 8 | O-shape sealing ring | 1 | The big one used to seal the base and case and small one used to seal the cable | |
| 9 | Plastic plug | 4 | Seal the holes without cable | |
| 10 | Valve | 1 | Test air pressure and sealing status | optional |
| 11 | Grounding part | 1 | Internal component grounding | Optional |
Optional cable sealing elements for small round ports:
Specification:
| Model | GJS-306 |
| Size (Height*Diameter) | 450*230mm |
| Splice fiber storage capacity (single fusion) | 48 fibers fusion splice, 1x32, 1x16, 1x8 splitter |
| Cable ports | 1 oval ports + 4 round ports |
| Max. Diameter of cable |
1oval port: for 1 loop cble with max. Diameter 24mm; 4 round ports: each port for 1 cable with max. Diameter 17.5mm, or each port for 8 pcs of drop cable with diameter 2x3.1mm |
| Material | PP |
| MOQ | 50PCS |
Preparation to install:
Additional tools needed (not provided by supplier):
| Item | Usage |
| Making note | Mark and temporary fix |
| Alcohol | clean |
| Emery cloth | clean |
| Stripper for transverse direction | Strip cable in transverse way |
| Stripper for longitudinal direction | Strip cable in vertical way |
| Stripper for bare cable | Strip bundle cable jacket |
| Tape measure | Length measurement |
| Cable cutting tool | Bundle cable stripping |
| Electrician knife | |
| Wire-cutter | Cut metal wire |
| Screw wrench | Fix screw |
| Scissors | |
| Splice machine | Splicing |
| Thermal shrinkage device | Connecting cable |
| OTDR | test |
Closure laying and installation methods:
Aerial mounting & wall mounting Pole mounting
Package information
More photos
|
|
