Dây cáp quang FTTH đóng cửa 4 cổng 24 lõi cho đường ống ngầm / đường ống
Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xhình dạng | Mái vòm | công suất tối đa | 48 lõi bó sợi |
---|---|---|---|
cổng cáp | 4 cổng tròn | đường kính cáp | Φ8mm ~ Φ16 mm |
Vật chất | MÁY TÍNH | khay nối | tối đa 4 chiếc |
kích thước đóng | 288 * 178 mm | Trọng lượng | 2,0 kg |
carton qty | 10 MÁY TÍNH | Kích thước thùng carton | 80 * 43 * 35 mm |
Điểm nổi bật | fiber optic splice enclosure,fiber optic joint closure |

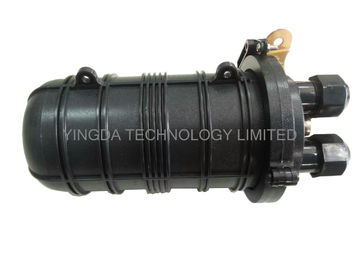

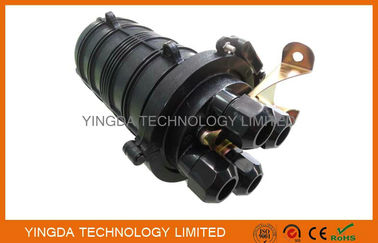

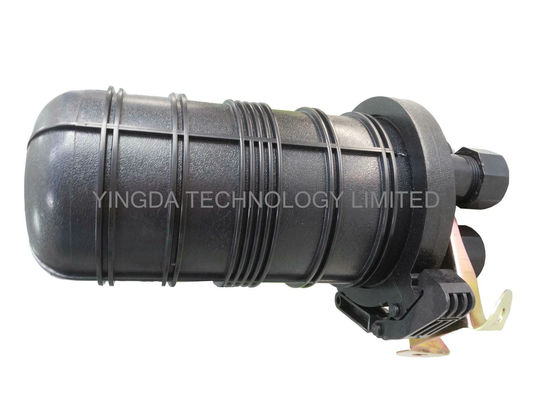

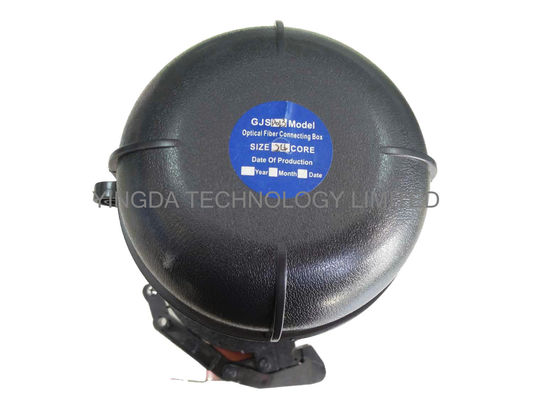

FTTH Fibre Optic Splice Enclosure 48 Fibers 4 Ports Aerial 24 Cores
D013 fiber optical splice closures are designed and developed to meet the requirements of different environment installation. This series of fiber optical splice closures are suitable for FTTH network, compact size, light weight, but max. 48cores capacity fusion splice. The protection level can be IP68.
The scope of application is: aerial, underground, pipeline, hand-holes.
The ambient temperature ranges from -40℃ to 65℃.
Dimension and capacity
Outside dimension (Height x Diameter) | 288mm×178mm |
Weight (excluding outside box) | 1800g—1910g |
Number of inlet/outlet ports | 4 round ports |
Diameter of fiber cable | Φ8mm~Φ16 mm |
Capacity of FOSC | Bunchy: 4-48 (cores) |
GW./CTN: | 20 KGS |
CTN SIZE | 82 x 43 x 32.5 cm |
QTY/CTN | 10 PCS /CTN |
Box structure
Main components
No. | Name of components | Quantity |
1 | FOSC cover | 1 piece |
2 | Fiber optic splice tray (FOST) | Max. 4 trays (bunchy) |
3 | Fiber holding tray | 1 pcs |
4 | Base | 1set |
5 | Plastic hoop | 1 set |
6 | Seal fitting | 1 piece |
7 | Pressure testing valve | 1 set |
8 | Earthing deriving device | 1 set |
Main accessories and special tools
No. | Name of accessories | Quantity | Usage |
1 | Heat shrinkable protective sleeve | Protecting fiber splices | |
2 | Nylon tie | Fixing fiber with protective coat | |
3 | Earthing wire | 1 piece | Putting through between earthing devices |
4 | Abrasive cloth | 1 piece | Scratching fiber cables |
5 | Labeling paper | 1 piece | Labeling fibers |
6 | Special wrench | 2 pieces | Installing and tightening nut of reinforced core and nut (plastic) of inlet/outlet tube |
7 | Measuring paper | 1 piece | To measure perimeter, of which its diameter is enlarged with seal tape |
8 | Seal tape | 1 ring | Enlarging diameter of fiber cable which fits in with gasket ring. |
9 | Insulation tape | 1 ring | Enlarging diameter of fiber cable for easy fixing |
10 | Metal hoop | 1 set | For wall mounting and pole hugging |
11 |
Buffer tube
|
decided by customers | Hitched to fibers and fixed with FOST, managing buffer. |
12 | Desiccant | 1 bag | Put into FOSC before sealing for desiccating air |
Necessary tools for installation
3. Universal tools (to be provided by operator)
Name of tools | Usage and specification |
Band tape | Measuring fiber cable |
Pipe cutter | Cutting fiber cable |
Electrical cutter | Take off protective coat of fiber cable |
Combination pliers | Cutting off reinforced core |
Screwdriver | Crossing/Paralleling screwdriver |
Scissor | |
Waterproof cover | Waterproof, dustproof |
Metal wrench | Tightening nut of reinforced core |
4. Splicing and testing instruments (to be provided by operator)
Name of instruments | Usage and specification |
Fusion Splicing Machine | Fiber splicing |
OT DR | Splicing testing |
Provisional splicing tools | Provisional testing |
More pictures
Fiber Optic Splice Closures (FOSC) inspecting and testing items
Package, Appearance, Sign, Fiber Storage Device, Electrical Jointing Device, Sealing Performance,
Re-Sealing Performance, Pull, Punching, Impact, Bending,Torsion, Temperature Circle, Voltage
Resistance Strength, Isolating Resistance
