Mái vòm cơ khí cáp quang hộp nối 48 lõi 510 * 218mm kích thước

Fiber Optic Splice Closure PLC Splitter 1x8 1x16, 48 Cores Fiber Optic Splice Enclosure Dome Mechanical

Model: GJS-2001

Gjs-2001 Splitting and Wiring fiber optical splice closure not only have the butt-joint and branching function, but also have the function of optical cable splitting and wiring, suitable for the installation

of main optical cables and drop cables with different diameters.

Features:

1. The closure adopts mechanical sealing structure. There is one oval shaped cable port entrances in base. The big entrance is used for the sealing of uncut straight-through fiber cable, the small ports are used for branch fiber cable and drop cable.
2. To adopt engineering PC plastic with high-strength to make the closure has longer life time and excellent sealing performance.
3. It can be installed one 1:16 blockless PLC splitter in max. One 1:16 or two 1:8 bare PLC splitter.
4. There are different drop cable elements to be chosen (Φ5,2*3). Max. 18pcs drop cable input/output (special type Can be customized).
5. The patented sealing structure keep good sealing performance after re-entry and re-using.
6. It could save the installation time and improve work efficiently.

Applications:

• Suitable for bunchy & ribbon fibers
• Aerial, underground, wall-mounting, hand hole-mounting and duct-mounting
• FTTH optical fiber distribution

Specifications

More pictures:

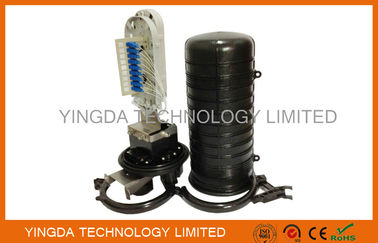

Full Overview of GJS-2001 cable terminatoin box with SC adapter panel, 1x8 PLC splitter SC connectors, dome (vertical) type, mechanical sealing, PC material

top view of the splice closure GJS-2001, total closed,with good sealing, and high strength PC material

BOTTOM BASE view of the splice closure GJS-2001:

2big ports, cable diameter: 8mm - 21mm, 2 small ports, cable diameter: 8 mm -40mm

the first layer of the splice enclosure is for distribution. The clsoure base with SC adapter panel, max can hold 18 pcs SC adaptors; also can hold 2 pieces x 1:8 micro splitter or 1 piece 1x 16 micro plc splitter 900um

SC adaptor panel is fixed on the fiber splice tray with screws, it is metal material, can take it off when needed, stable performance, easy to operate.

this second layer of the splice tray is for splitting, the splitter stainless tube is fixed on the protective sleeve holder. this tray have enough storage space for redundant optical fiber.

on the splice closure box, there is a place to put the lables, which indicatebelow information (for example):

model no.: GJS-2001

product name: fiber optic splice closure

max capacity: 24cores

prouction date: 02/10/2013

Standard accessories:
