| MOQ: | 100 pcs |
| giá bán: | 0.18USD-4.29USD |
| Bao bì tiêu chuẩn: | 1pc per plastic bag, 260pcs per carton box |
| Delivery period: | 5-8days after payment |
| năng lực cung cấp: | 500,000 pcs per month |

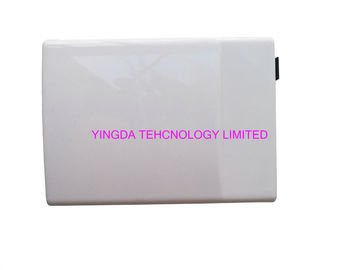

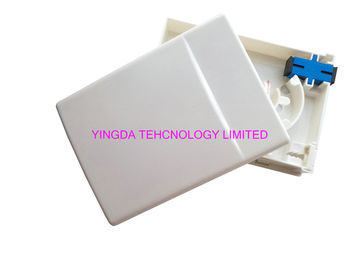

1 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate
Model:FTB86D
Used in the end termination of residential buildings and villas, to fix and splice with pigtails.
Features
Specification
| Item | FTB-86D |
| Dimension(mm) | H120×W90×D25 |
| Weight(Kg) | 0.075 |
| Cable diameter (mm) | Φ7~Φ14 |
| Cable port | 2 holes |
| Max capacity of splice tray | 2-4(single fiber) |
| Max No of splice tray | 1 |
| Max capacity of cable | 4(single fiber) |
Kit content
| Item | Type | Quantity |
| Fiber protective sleeves | 60mm | According to cores |
| Cable tie | 60mm | 10×splice tray |

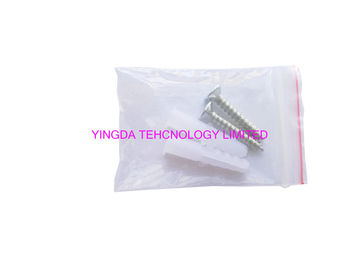

| Nails of installation | Nail | 2pcs |
Packing information
| Model | Dimension (mm) | Outer carton dimension (mm) | Outer carton weight(kg) | No of units per carton(pcs) |
| FTB-86D | 120×90×25 | 530x390x535 | 23.0 | 260 |
Installation tool
1 Knife
2 Screwdriver
3 Plier
Component
terminal box can use 1x SC adapter, all box include wall mounting accessories.
all the box is self-clip design, slide in

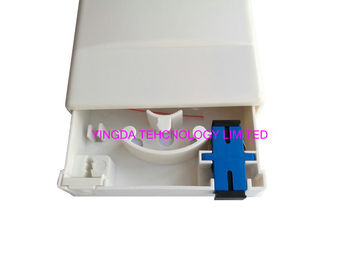

there is 1 cable port in front and back, and 1 pc SC adapters.
Method of installation

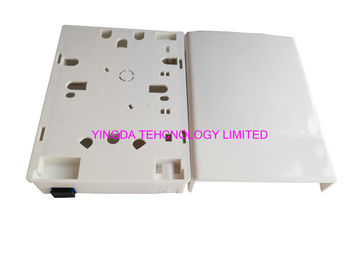

1 Measure distance of two installation holes, then drill holes on the wall, then fix the base of the box on the wall by expansion nails.
2 Peel cable, take out required fibers, then fix the input cable on the body of the box..
3 Splice drop cable and pigtail as below splice slot.

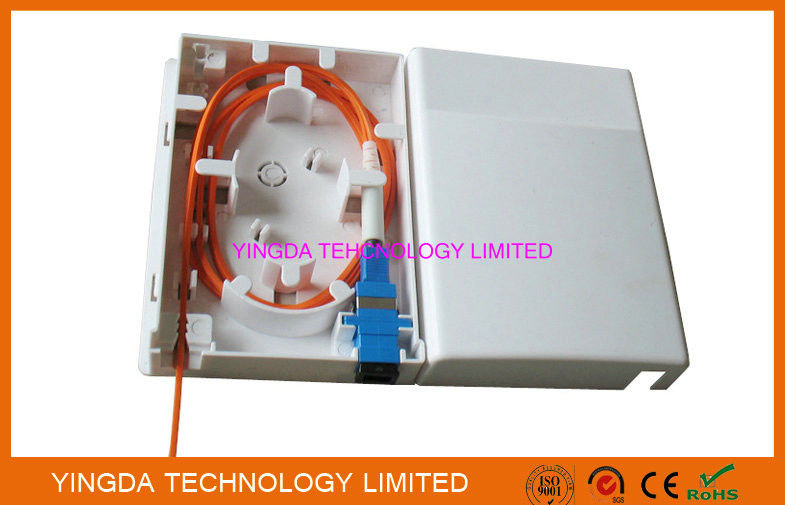

4 Store connected fibers on the below tray, then fixed by tie, then lead out on the output port by 1 Simplex SC or 1 Duplex LC adaptors. The lower part of the adaptor slot can be remove by plier.
5 Insert the body on the base’s hook, close cover, the installation is over.
băng hình
băng hình
băng hình
băng hình
băng hình
băng hình
|
|
