| Tên thương hiệu: | YINGDA |
| Số mẫu: | AD-SCA-02 |
| MOQ: | 1000pcs |
| giá bán: | 0.04USD-2.15USD |
| Thời gian giao hàng: | 5 working days |
| Điều khoản thanh toán: | T/T or western Union |

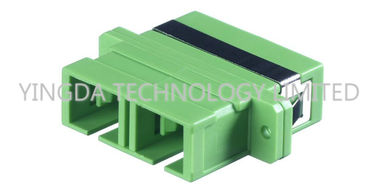

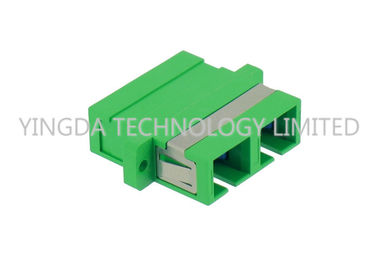

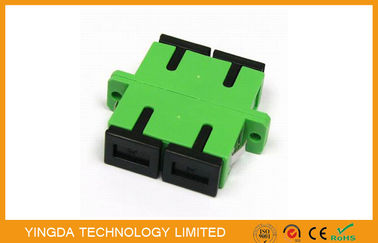

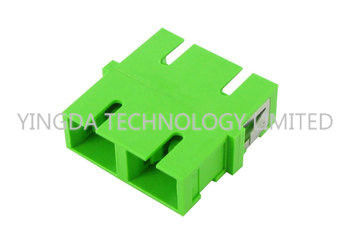

Fiber Optic SC - SC Duplex Singlmode Adapter, SC/APC Fiber Coupler Green PBT
This is a kind of developed by Japan's NTT optical fiber connector. The shell rectangular, adopted
by the pin and the structure of the coupling sleeve size and FC are exactly the same, The end face
of the pin is used more PC or APC model grinding way; Fastening way is to use plug pin bolt type,
does not need to rotate. This kind of connector price is low, plug is easy to operate, small ripple in
loss, high compressive strength, high density installation.
SC=Standard connector, "SC" connector is standard square connector, made of engineering plastic,
high temperature resistant, not easy to oxidation. Transmission equipment generally use SC connectors.
Adapter drawing
Features
Specification
|
Wavelength |
1200-1600nm |
|
Polish method |
UPC,PC,APC |
|
Insertion loss |
≤0.2dB |
|
Max.Insertion loss |
≤0.3dB |
|
Repeatability |
≤0.1dB |
|
Interchangeability |
≤0.2dB |
|
Sleeve material |
Cermic or metal |
|
Working/Storage temperature |
-40~+85℃ |
|
Matings time |
>1000 |
Order information
băng hình
băng hình
băng hình
|
|
