GYFXTY 5.0mm Central Loose Tube Outdoor Cable for FTTH Access Network PE Sheath FRP Black

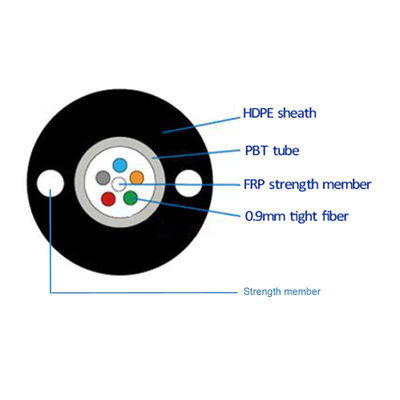

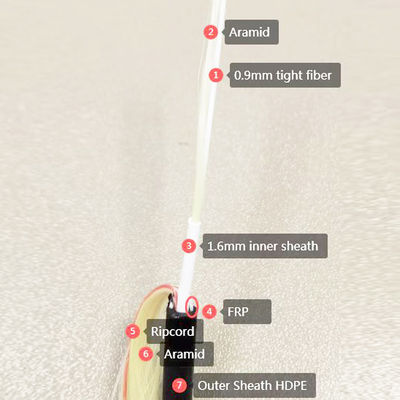

The optical fiber in the middle of central loose tube, the PBT tube are filled with a water-resistant filling compound. Outer the tube,there can add aramid yarn (kevlar) for strength member if customer request, and two parallel FRP strength member are placed at both two sides. The cable is completed with a polyethylene (PE) sheath. It is a good choice for aerial or duct application.
Cable Dimension and Structure
| Cable type | GYFXTY | |
| Optical fiber | Fiber count | G657A2 |
| Color | Natural | |
| Buffer | Material | LSZH |
| Color | White | |
| Diameter | 0.85±0.05mm | |
| Loose tube | Material | PBT |
| Color | Natural | |
| Diameter | 0.35±0.05mm | |
| Strength member | Material | FRP*2 |
| Diameter | 1.0 | |
| Outer sheath | Material | HDPE |
| Color | Black | |
| Diameter | 5.0±0.35mm | |
| Thickness | 1.7±0.15mm |
G6572 Fiber Attenuation
| Item | Parameter | Unit | Value | |
| Before cable | After cable | |||
| Optical characteristics | Attenuation at 1310nm | dB/km | ≤0.35 | ≤0.40 |
| Attenuation at 1383nm | dB/km | ≤0.35 | ≤0.40 | |
| Attenuation at 1550nm | dB/km | ≤0.21 | ≤0.30 | |
| Attenuation at 1625nm | dB/km | ≤0.23 | ≤0.30 | |
| Zero dispersion wavelength | Nm | 1300-1324 | ||
| Zero dispersion slope | Ps/(nm2*km) | ≤0.092 | ||
| Cable cut off wavelength λcc | nm | ≤1260 | ||
| Mode field diameter (MFD) at 1310nm | um | 8.4-9.2 | ||
| Mode field diameter (MFD) at 1550nm | um | 9.3-10.3 | ||
| Group index of refraction (Typical) at 1310nm | / | 1.466 | ||
| Group index of refraction (Typical) at 1550nm | / | 1.467 | ||
| Macro-bend loss (1turn, 7.5mm radius) at 1550nm | dB | ≤0.5 | ||
| Macro-bend loss (1turn, 10mm radius) at 1550nm | dB | ≤0.1 | ||
| Macro-bend loss (10turn, 15mm radius) at 1550nm | dB | ≤0.03 | ||
| Geometrical characteristic | Cladding diameter | Um | 125±7 | |
| Cladding non-circularity | % | ≤0.7 | ||
| Coating diameter | um | 235-245 | ||
| Coating/cladding concentricity error | um | ≤12.0 | ||
| Coating non-circularity | % | ≤6.0 | ||
| Core/cladding concentricity error | um | ≤0.5 |
Mechanical and Environmental Characteristics
| Tensile strength | Short term | 500N |
| Long term | 200N | |
| Crush resistance | Short term | 500N/100mm |
| Long term | 100N/100mm | |
| Temperature range | -20℃~+60℃ | |
| Bending radius | Dynamic | ≥20D |
| Static | ≥20D |
Other details:
