| Tên thương hiệu: | YINGDA |
| Số mẫu: | ADB-ST-RD |
| MOQ: | 100 PCS |
| giá bán: | 0.04USD-2.15USD |
| Thời gian giao hàng: | 3 days |
| Điều khoản thanh toán: | T/T or western Union |

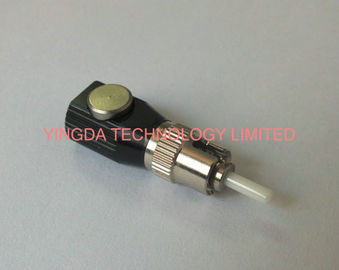

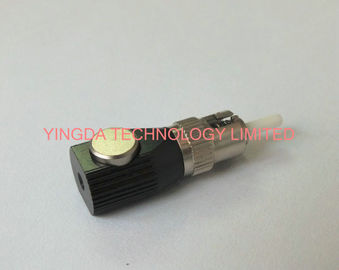

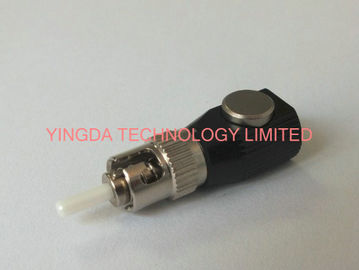

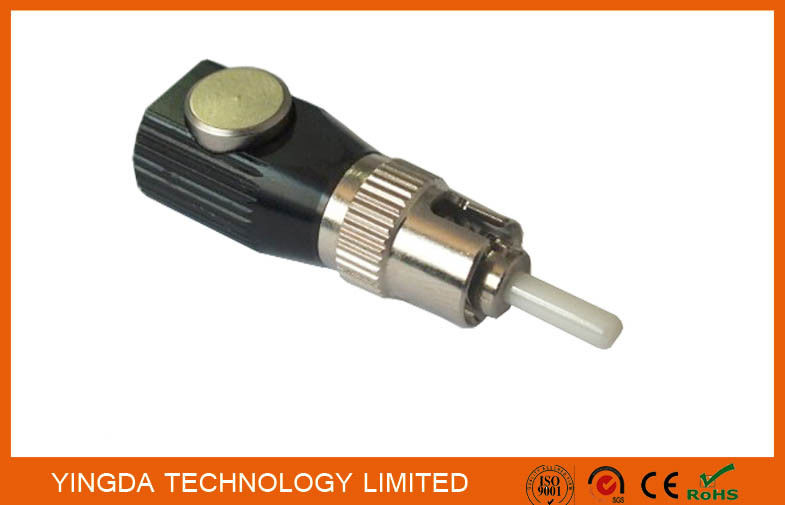

Optical Fiber Adapter ST, Optic Bare Fiber Adapter ST FC LC ST Round Metal
The optical fiber is connected through the opening sleeve inside adapter, in order to ensure the
highest performance of optical fiber jumper. In order to fixed on various panel, a variety of fixed
flange adapters design and manufactured.
Hybrid adapter can connected different types of fiber optic patch cord, also provide APC end face
connection, duplex or multi-fiber high density installation.
Bare fiber adapter is a kind of professional auxiliary tool for optical fiber test, especially for fiber
emergency repair and temporary connection.
Model: FC/PC, SC/PC,ST/PC,LC/PC available
Main characteristics:
Application
Specification
|
Shape |
Square / Round |
|
Connector |
FC/PC, SC/PC, ST/PC, LC/PC |
|
Applicable fiber |
SM & MM |
|
Ferrule diameter |
123-127 um |
|
Ferrule outder diameter |
2.499mm 1.249mm |
|
Cable diameter |
250um & 900um |
|
Insertion Loss |
≤0.20dB |
|
Repeat ability |
＜0.2dB |
|
Tensile strength |
100g |
|
Plug time |
>1000 times |
|
Operating Temperature |
-40 ~+85℃ |
|
Size |
Length:40mm, diameter:30mm |
How to use:
1. Strip the fiber coating layer (15-20mm) and cleaned with alcohol;
2. Press down the optical fiber adapter switch, push the fiber along the guiding hole slowly until out
of the ceramic ferrule (5-6mm),then relax and open ;
3. Use ruby knife delimit fiber bottom gently so as to expose part of fiber, break off the fiber.
Bare Fiber Adapter Round Package: Blister Box FC SC LC ST is the same
băng hình
băng hình
băng hình
|
|
| Tên thương hiệu: | YINGDA |
| Số mẫu: | ADB-ST-RD |
| MOQ: | 100 PCS |
| giá bán: | 0.04USD-2.15USD |
| Chi tiết bao bì: | 1 pc / bag or 10 pc/ blister box |
| Điều khoản thanh toán: | T/T or western Union |
Optical Fiber Adapter ST, Optic Bare Fiber Adapter ST FC LC ST Round Metal
The optical fiber is connected through the opening sleeve inside adapter, in order to ensure the
highest performance of optical fiber jumper. In order to fixed on various panel, a variety of fixed
flange adapters design and manufactured.
Hybrid adapter can connected different types of fiber optic patch cord, also provide APC end face
connection, duplex or multi-fiber high density installation.
Bare fiber adapter is a kind of professional auxiliary tool for optical fiber test, especially for fiber
emergency repair and temporary connection.
Model: FC/PC, SC/PC,ST/PC,LC/PC available
Main characteristics:
Application
Specification
|
Shape |
Square / Round |
|
Connector |
FC/PC, SC/PC, ST/PC, LC/PC |
|
Applicable fiber |
SM & MM |
|
Ferrule diameter |
123-127 um |
|
Ferrule outder diameter |
2.499mm 1.249mm |
|
Cable diameter |
250um & 900um |
|
Insertion Loss |
≤0.20dB |
|
Repeat ability |
＜0.2dB |
|
Tensile strength |
100g |
|
Plug time |
>1000 times |
|
Operating Temperature |
-40 ~+85℃ |
|
Size |
Length:40mm, diameter:30mm |
How to use:
1. Strip the fiber coating layer (15-20mm) and cleaned with alcohol;
2. Press down the optical fiber adapter switch, push the fiber along the guiding hole slowly until out
of the ceramic ferrule (5-6mm),then relax and open ;
3. Use ruby knife delimit fiber bottom gently so as to expose part of fiber, break off the fiber.
Bare Fiber Adapter Round Package: Blister Box FC SC LC ST is the same
