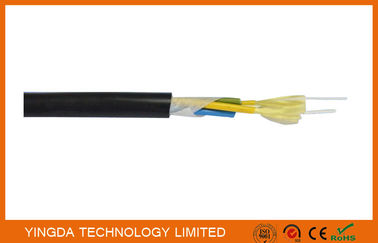

Outdoor CATV Base Station Patch Cord FTTH Drop Cable 7.0mm PE Sheath Tight Buffered Cable

Tên thương hiệu: YINGDA
Số mẫu: ADB-ST-RD
MOQ: 10KM
giá bán: Có thể đàm phán
Thời gian giao hàng: 3 days
Điều khoản thanh toán: T/T or western Union
Thông tin chi tiết
Nguồn gốc:
Trung Quốc
Chứng nhận:
ISO,SGS
outer sheath:
PE, TPU,LSZH
outer sheath color:
black
cable diameter:
7.0mm
fiber count:
2 core
weight:
42 kg/km
Fiber type:
single-mode,multimode
applicatoin:
patch cord or CATV inline or vertical wiring
Tensile strength:
400N
Packaging Details:
4KM/DRUM
Supply Ability:
50,000pcs per month
Làm nổi bật:

ftth drop cable

,

fiber optic drop cable

Mô tả sản phẩm



GJFJV-LY Outdoor CATV Base Station Patch Cord Remote Cable 7.0mm Tight Buffer PE Sheath



Outdoor CATV Base Station Patch Cord FTTH Drop Cable 7.0mm PE Sheath Tight Buffered Cable 0

Description



Base station remote cable use the single-core optical fiber cable (900um tight set of fiber,

Kevlar to strengthen components) as a child, and stranded as fill line wrapped into cable

core is squeezing out of the cable core forming a layer of PVC or LSZH sheath.



Application


◆Mainly used in wireless base station(BS) horizontal and vertical cabling.



Cable Structure

 Outdoor CATV Base Station Patch Cord FTTH Drop Cable 7.0mm PE Sheath Tight Buffered Cable 1



Technical parameters



Cable

code

Fiber

count

Cable

size

(mm)

Cable

weight

(kg/km)

Tensile(N)

Crush

(N/100mm)

Crush

 resistance

Temper

ature

(°C)

Long

term

Short

term

Long

term

Short

 term

Dynamic

Static

LYC-02

2

7.0

42

200

400

600

1500

20D

10D

-20~+60



Fiber type

G652D

50/125

62.5/125

G657A1

G657A2

OM3-150

OM3-300

OM4

Jacket

material

PE

LSZH

TPU

Features

Multi-mode fiber optic cable sheath color: black

Other contracted color



Outdoor CATV Base Station Patch Cord FTTH Drop Cable 7.0mm PE Sheath Tight Buffered Cable 2
