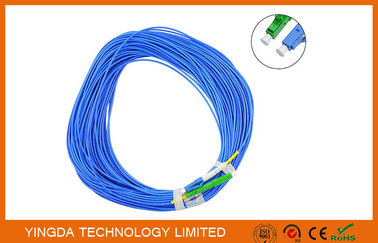

High flexibility APC LC - LC Fiber Optic Patch Cord 40M For Buildings / Outdoor
Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xconnector | LC/PC, LC/APC | fiber count | simplex |
---|---|---|---|
insertion loss | < 0.3 dB | return loss | > 55 dB upc, >60dB apc |
Fiber length | 40 meter | cable diameter | 2.0mm |
cable color | blue | connector color | green, blue |
Điểm nổi bật | fiber optic jumper,multimode patch cord |
LC to LC APC Fiber Optic Patch Cord Singlemode, Fiber Patch Cable LC - LC / APC
Fiber optic patch cord is one of most commonly used components in fiber optic network. fiber optic
patch cords sometimes is also called fiber optic jumper or fiber optic patch cables. generally there
are two types of fiber optic patch cords: single mode fiber optic patch cords and multimode fiber optic
patch cords. here the word mode means the transmitting mode of the fiber optic light in the fiber optic
cable core. usually single mode fiber optic patch cord are with 9/125 fiber glass and is yellow jacket
color, multi mode fiber optic patch cord are with 50/125 or 62.5/125 fiber glass and is orange color.
The LC fiber optic patch cable is with a small form factor (SFF) connector and is ideal for high density
applications.LC fiber optic patch cord connector has a zirconia ceramic ferrule measuring 1.25mm O.D.
with a PC or APC endface, and provides optimum insertion and return loss.
Fiber optic patch cord are with various kinds of cables,PVC, Riser, Plenum, OFNR,OFNP,LSZH (LSOH),
10 Gig Aqua, there are simplex fiber optic patch cord and duplex fiber optic patch cord and multi fiber
cable assemblies,and there are ribbon fan out fiber cable assemblies and bundle fiber optic cable
assemblies.Typical fiber optic patch cord cable diameter can be 0.9mm,2mm,or 3mm.
Features
- Full steel armoured protection from ceramic ferrule
- High tensile resistance & anti-pressure
- Strong anti- ultraviolet radiation
- High flexibility
Application
- FTTH
- Defense communications
- Outdoor Emergency
- Buildings without protective cabling
Specification
Jacket |
Riser (OFNR), Plenum (OFNP), Low Smoke Zero Halogens (LSZH), PVC |
Diameter |
0.9mm (9/125um), 1.6mm, 1.8mm, 2.0mm, 3.0mm |
Jacket Colors |
Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow |
Connector |
FC,SC,ST,MU,LC, D4,DIN,E2000 MT-RJ,MPO FC,SC,ST,MU, LC,SMA,E2000 MT-RJ,FDDI, MPO,ESCON |
Insertion Loss (dB) |
≤ 0.2 (UPC) |
Exchangeability |
≤ 0.2 dB |
Tensile Strength |
≤ 0.2 dB ( 0 to15 Kgf ) |
Temp. Range |
(- 40 to +80 degree centigrade) |
Polish |
UPC APC PC |
Cable type |
Singlemode, multimode |
Apex offset |
≤50 um, ≤100 um |
Fiber Spherical Height |
-90 nm , +50 nm |
Angular Offset |
8°± 0.5°C (APC) |
Order information
Connector A |
Connector B |
Fiber type |
Cable diameter |
Cable jacket |
Length |
LC/UPC |
LC/UPC |
9/125um |
0.9mm simplex |
PVC |
0.5m |
LC/APC |
LC/APC |
50/125um |
1.8mm simplex |
LSZH |
1m |
FC/UPC |
FC/UPC |
62.5/125um |
2.0simplex |
|
3m |
FC/APC |
FC/APC |
50/125um OM3 |
3.0mm simplex |
|
5m |
SC/UPC |
SC/UPC |
50/125um OM4 |
1.8mm duplex |
|
... |
SC/APC |
SC/APC |
|
2.0mm duplex |
|
|
ST/UPC |
ST/UPC |
|
3.0mm duplex |
|
|
MTRJ/female |
MTRJ/female |
|
3.0mm round |
|
|
MTRJ/male |
MTRJ/male |
|
... |
|
|
MU/UPC |
MU/UPC |
|
|
|
|
MU/APC |
MU/APC |
|
|
|
|
E2000 |
E2000 |
|
|
|
|
... |
... |
|
|
|
|
