| MOQ: | 500 pcs |
| giá bán: | 0.36USD-30USD |
| Bao bì tiêu chuẩn: | 1 pc / plastic bag |
| Delivery period: | 5-8days after payment |
| năng lực cung cấp: | 15,000 pcs / day |

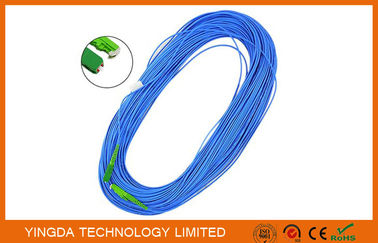

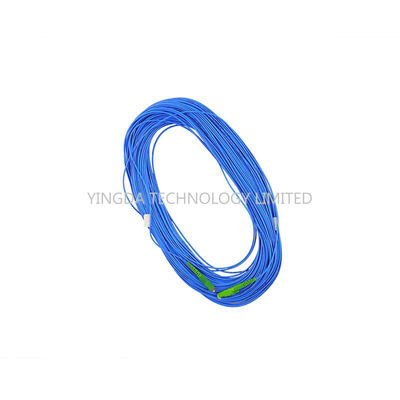

E2000 / APC - E2000 / APC Patch Cord Fiber Optic Cable Singlemode LSZH 35M 1.8mm
Fiber optic patch cord is one of most commonly used components in fiber optic network. fiber optic
patch cords sometimes is also called fiber optic jumper or fiber optic patch cables. generally there
are two types of fiber optic patch cords: single mode fiber optic patch cords and multimode fiber optic
patch cords. here the word mode means the transmitting mode of the fiber optic light in the fiber optic
cable core. usually single mode fiber optic patch cord are with 9/125 fiber glass and is yellow jacket
color, multi mode fiber optic patch cord are with 50/125 or 62.5/125 fiber glass and is orange color.
E2000 fiber optic patch cord is one of the latest style yet one of the most expensive cable.Developed
by Diamond, E2000 features a spring-loaded shutter used to protect the ferrule from dust and scratches.
E2000 fiber connectors is similar size of SC fiber connectors.
Features
Application
Specification
|
Jacket |
Riser (OFNR), Plenum (OFNP), Low Smoke Zero Halogens (LSZH), PVC |
|
Diameter |
0.9mm (9/125um), 1.6mm, 1.8mm, 2.0mm, 3.0mm |
|
Jacket Colors |
Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow |
|
Connector |
FC,SC,ST,MU,LC, D4,DIN,E2000 MT-RJ,MPO FC,SC,ST,MU, LC,SMA,E2000 MT-RJ,FDDI, MPO,ESCON |
|
Insertion Loss (dB) |
≤ 0.2 (UPC) |
|
Exchangeability |
≤ 0.2 dB |
|
Tensile Strength |
≤ 0.2 dB ( 0 to15 Kgf ) |
|
Temp. Range |
(- 40 to +80 degree centigrade) |
|
Polish |
UPC APC PC |
|
Cable type |
Singlemode, multimode |
|
Apex offset |
≤50 um, ≤100 um |
|
Fiber Spherical Height |
-90 nm , +50 nm |
|
Angular Offset |
8°± 0.5°C (APC) |
Ordering information
|
Boot (cable size) |
Boot Color |
Fiber Type |
Cable number |
Ferrule |
Length |
|
0.9mm 2.0mm 3.0mm |
Black Biege Blue Gray White Yellow |
9/125um SM 50/125um MM 62.5/125um MM OM3 OM4 |
Simplex Duplex Multi-fiber |
PC APC |
Customized |
băng hình
băng hình
băng hình
băng hình
băng hình
|
|
| MOQ: | 500 pcs |
| giá bán: | 0.36USD-30USD |
| Bao bì tiêu chuẩn: | 1 pc / plastic bag |
| Delivery period: | 5-8days after payment |
| năng lực cung cấp: | 15,000 pcs / day |
E2000 / APC - E2000 / APC Patch Cord Fiber Optic Cable Singlemode LSZH 35M 1.8mm
Fiber optic patch cord is one of most commonly used components in fiber optic network. fiber optic
patch cords sometimes is also called fiber optic jumper or fiber optic patch cables. generally there
are two types of fiber optic patch cords: single mode fiber optic patch cords and multimode fiber optic
patch cords. here the word mode means the transmitting mode of the fiber optic light in the fiber optic
cable core. usually single mode fiber optic patch cord are with 9/125 fiber glass and is yellow jacket
color, multi mode fiber optic patch cord are with 50/125 or 62.5/125 fiber glass and is orange color.
E2000 fiber optic patch cord is one of the latest style yet one of the most expensive cable.Developed
by Diamond, E2000 features a spring-loaded shutter used to protect the ferrule from dust and scratches.
E2000 fiber connectors is similar size of SC fiber connectors.
Features
Application
Specification
|
Jacket |
Riser (OFNR), Plenum (OFNP), Low Smoke Zero Halogens (LSZH), PVC |
|
Diameter |
0.9mm (9/125um), 1.6mm, 1.8mm, 2.0mm, 3.0mm |
|
Jacket Colors |
Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow |
|
Connector |
FC,SC,ST,MU,LC, D4,DIN,E2000 MT-RJ,MPO FC,SC,ST,MU, LC,SMA,E2000 MT-RJ,FDDI, MPO,ESCON |
|
Insertion Loss (dB) |
≤ 0.2 (UPC) |
|
Exchangeability |
≤ 0.2 dB |
|
Tensile Strength |
≤ 0.2 dB ( 0 to15 Kgf ) |
|
Temp. Range |
(- 40 to +80 degree centigrade) |
|
Polish |
UPC APC PC |
|
Cable type |
Singlemode, multimode |
|
Apex offset |
≤50 um, ≤100 um |
|
Fiber Spherical Height |
-90 nm , +50 nm |
|
Angular Offset |
8°± 0.5°C (APC) |
Ordering information
|
Boot (cable size) |
Boot Color |
Fiber Type |
Cable number |
Ferrule |
Length |
|
0.9mm 2.0mm 3.0mm |
Black Biege Blue Gray White Yellow |
9/125um SM 50/125um MM 62.5/125um MM OM3 OM4 |
Simplex Duplex Multi-fiber |
PC APC |
Customized |
