| Tên thương hiệu: | YINGDA |
| Số mẫu: | FC adapter |
| MOQ: | 100PCS |
| giá bán: | 0.04USD-2.15USD |

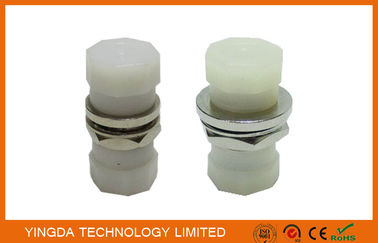

Hybrid Fiber Optic Adapter Adaptor Coupler Metal SM / MM FC Fiber Optic Connector
Fiber optic adapter (known as flanges, coupler ) is the active optical connector. We have complete
series, including FC, SC, St, LC, MTRJ, and hybrid fiber adaptors such as ST-SC, FC-ST etc.,
which are widely used for optical distribution frame (ODF), optical fiber communication equipment,
instruments, its performance is stable and reliable.
Main performance:
fiber optic is connected by the adapter through its internal opening sleeve. we offer a variety of shapes
high performance adapters in order to ensure the highest connectivity between the optical fiber jumper.
In order to fixed on various panels, we design a variety of fine mounting flange.
Hybrid adapter can connect different types of optical fiber connector interface, and provides the
connection between the APC end. Duplex or Quad improve the installation density. No matter
material, size tolerance, or outer appearance, we ensure aesthetic high quality.
Application
Specification
|
Brand |
YINGDA |
|
Name |
FC D type adapter |
|
Type |
PC UPC APC |
|
Working temperature |
1200-1600nm |
|
Attenuation accuracy |
≤0.2dB |
|
Return loss |
≤0.3dB |
|
Repeat ability |
≤0.1dB |
|
Interchange ability |
≤0.2dB |
|
Sleeve material |
Ceramic or metal |
|
Working temperature |
-40~+80°C |
|
Storage temperature |
-40~+85°C |
|
Plug life |
>1000 Times |
|
Reference standard |
YD/T 1272.4-200 |
|
Test item |
Test condition |
|
Temperature and humidity aging |
Temperature: 85°C, 85% relative humidity,14days |
|
Temperature cycling |
Temperature -40~+75°C,10%-85% relative humidity, 42 cycle,14days |
|
Immersion |
Temperature: 43°C, PH5.5, 7days |
|
Vibration |
Amplitude 1.52mm, frequency 10Hz ~ 55Hz, X, Y, Z three directions for 2 hours |
|
Reference standard |
YD/T 1272.4-2007 |
