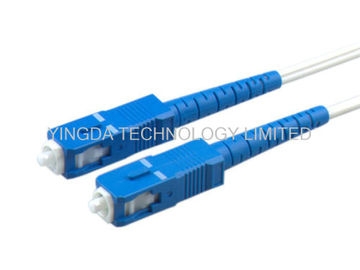

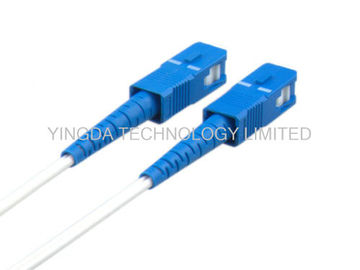

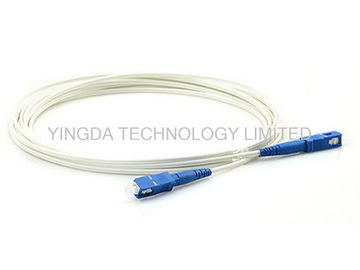

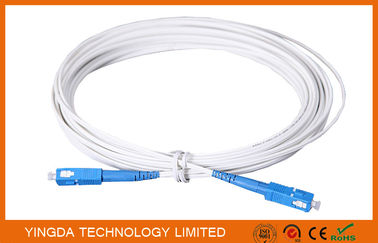

Indoor FTTH Fiber Optic Patch Cord 3M With SC / UPC Connectors FRP Strength Member

Tên thương hiệu: YINGDA
Số mẫu: FHPC-SCU-01-F8F-A1W-01
MOQ: 100PCS
giá bán: 0.36USD-30USD
Thông tin chi tiết
Nguồn gốc:
Trung Quốc
Chứng nhận:
ISO,SGS,ROHS
Application:
FTTH indoor wiring
Connector:
SC / UPC
fiber count:
1 core
fiber type:
G657A1 or G657A2
Cable sheath:
LSZH
Cable length:
1 meter
Cable color:
white
insertion loss:
<0.3dB
Cable strength member:
FRP (Fiber Reinforced Polymer/Plastic)
drop cable diameter:
2*3.0mm
Tên sản phẩm:
cáp quang,cáp nhảy quang,dây nhảy quang,dây nhảy quang,cáp nhảy quang,dây nhảy quang
Packaging Details:
1 piece / bag
Làm nổi bật:

fiber optic patch cable

,

fiber optic jumper

Mô tả sản phẩm



Indoor FTTH Fiber Optic Patch Cord 3M With SC / UPC Connectors FRP Strength Member



FTTH  SC/PC patch cord is FTTH cable terminated bothh end with SC connector. Also FC/ST/LC connector can be

choosed as customer request.  Fiber is avaibale with G652D or G657A. Cable Jacket can optional as white or balck.



Features

  1. Low-bend-sensitivity fiber,high bandwidth,excellent communication transmission property;
  2. Two parallel FRP strength members ensure good performance of crush resistance
  3. Simple structure, light weight and high practicability;
  4. Novel flute design, easily strip and splice, simplify the installation and maintenance;
  5. Low smoke, zero halogen and flame retardant sheath.



Application

  • Local Area Networks (LANs) and Wide Area Networks (WANs)
  • Fiber Optic CATV, FTTH, FTTB, FTTP etc
  • Fiber Optic telecommunication systems
  • Transmission Mode (ATM)
  • Fiber Optic Backbone
  • Military Instrumentation



Specification

Item

SC FC ST LC drop cable PATCH CORD

IL(dB)

≤0.2

Max IL(dB)

≤0.3

Working temperature(°C)

-40~+80

Temperature cycle(°C)

-40~+75

Storage temperature(°C)

-40~+85

Interchangeability (dB)

≤0.2

Plug times

1000 times

Repeat ability(dB)

≤0.1

RL (dB)

≥45 ≥50 ≥60

Immersion

Temperature 43°C,

PH5.5 for 7days



Delivery Length:

1-300METERS / PACK



Order information



FHPC-XXX-XX-XXX-XXX-XX

        1 - 2  - 3 4 - 5 6 - 7



FHPC

Connector

type



Fiber

count

Cable

type

Strength

member

Fiber type

Cable

color

Cable

Length

FH=ftth

1

2

3

4

5

6

7

Pc=patch

cord

SCU=SC/UPC

SCA=SC/APC

LCU=LC/UPC

....

01=1core

02=2core

04=4core

....

F8=Figure 8

SF=self-supporting

F=FRP

S=steel

5D=G.652D

A1=G.657A1

A2=G.657A2



W=white

B=Black

Y=yellow

01=1m

02=2m

...

10=10m

...



More Photos



Indoor FTTH Fiber Optic Patch Cord 3M With SC / UPC Connectors FRP Strength Member 0Indoor FTTH Fiber Optic Patch Cord 3M With SC / UPC Connectors FRP Strength Member 1
