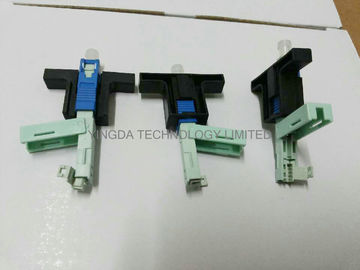

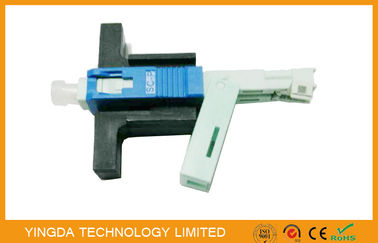

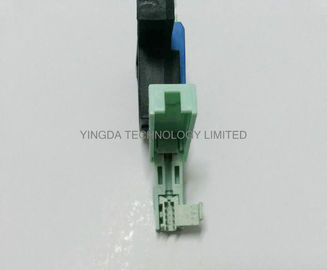

Mountable Fiber Optical Field Installable Connector ( FMC ) , SC Connector With Back Cover

MOQ:	500PCS
giá bán:	0.19USD-0.72USD
Bao bì tiêu chuẩn:	1pc /plastic bag, 10pcs/bigger plastic bag, then 100pcs/box, 1000pcs/ carton
Delivery period:	5 working days after received your payment
phương thức thanh toán:	T/T or western Union
năng lực cung cấp:	500,000pcs per month

Thông tin chi tiết

Mô tả sản phẩm

Đánh giá & Nhận xét

Thông tin chi tiết

Nguồn gốc

Trung Quốc

Hàng hiệu

YINGDA

Chứng nhận

ISO SGS ROHS

Model Number

YD-FIC-SC/UPC-E

material:

Plastic

house color:

fiber type:

single mode

back cover:

yes, black

insertion loss:

<0.3dB

return loss:

>45dB

pack:

plastic bag and box

total length:

Tên sản phẩm:

đầu nối sợi sc, đầu nối cáp quang sc, đầu nối cáp quang, đầu nối có thể cài đặt tại hiện trường

Làm nổi bật:

quick assembly connector

FTTH connector

Mô tả sản phẩm

Field Mountable Fiber Optical Connector (FMC), Mechanical SC Connector With Back Cover

Sell point:

1. SC / PC, cover type, the total length 53mm

2. Apply to 2mm* 3mm drop fiber cable

3. Ceramic C-groove structure, good sealing performance, flame retardant

4. Insertion loss: the average ≤0.2dB, MAX≤0.4dB

5. Return loss: ≥45dB

6. No need epoxy or polished, field-installable, factory embedded fiber

Description

SC / PC Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector

used in assembly. It can provide Open flow and Pre-cast type of products, whose optical and

mechanical specification meets the standard optical fiber connector.

It is designed for high quality and high efficiency for installation the structure of crimping position

is a unique design, and need not gluing, polishing neither any consumables. Adopting fiber

pre-installed structure, and convenient for field installation.

Features

Precise mechanical dimensions
Low insertion loss, high return loss
Comply standard of IEC61754-4
Repeatable times is no less than 50 times;
Long life span design, more than 30 years.
Provide Open flow and Pre-cast type of products
Adopting fiber pre-installed structure
Convenient for field installation
No epoxy or polishing required, easy assembly in the field
Fiber termination can be reset, save time and energy ,reduce scrap
No need special too, readily available

Specification

Type	Parameters
Insertion loss	≤ 0.3dB(1310nm & 1550nm)
Return loss	≤ -40dB
Bare fiber strength	>5N
Clad strength	>10N
Tension	>50N
Mechanical durability (500times)	IL ≤ 0.2dB & RL ≤ 5dB
Operating Temperature	5 ºC to +70 ºC

Application

Premise environments
Connections at the desk for LAN environments
Patch panels
Direct equipment termination
Fiber to the Subscriber / Home (FTTH) applications
Repair/replacement requirements
Equipment test leads

Mountable Fiber Optical Field Installable Connector ( FMC ) , SC Connector With Back Cover 0
