SC SM MM Singlemode Fiber Optic Adapter W / O Flange No Flange

Nguồn gốc Trung Quốc
Hàng hiệu YINGDA
Chứng nhận ISO,SGS
Số mô hình AD-SC-01/W
Số lượng đặt hàng tối thiểu 1000pcs
Giá bán Negotiable
chi tiết đóng gói 50 Pcs / box
Thời gian giao hàng 5 working days
Điều khoản thanh toán T/T or western Union
Khả năng cung cấp 200km/ month

Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Fiber count simplex or duplex connector material plastic
adapter color beige,blue, aqua,green sleeve material ceramic or bronze
fiber type 9/125um, 50/125um,62.5/125um, 10G OM3 50/125UM, OM4 polish mode PC,UPC, APC
insetion loss < 0.1dB house material ABS
connector SC
Điểm nổi bật

fiber optic coupler

,

fiber optic adaptor

Để lại lời nhắn
Mô tả sản phẩm

SC OM2 Multimode Optical Fiber Coupler Without Flange SC Adapter Beige





YINGDA TECHNOLOGY LIMITED offers a broad range of SC adapters in plastic or metal housing.

All adaptors can be with or without flanges due to different installation requirement, and come with

a choice of zirconia split sleeves to keep perfect contaction of two connectors.



Our SC adapters without flange are suitable for installation with limited space, and fixed by the metal

shutters. All come with a choice of zirconia split sleeves (diagonal or straight split options available),

or with phosphor bronze straight split sleeves. Housing is available in a variety of colors.: blue, beige,

aqua, green,etc.



Simplex, duplex and quad adapters are available in plastic, without flanges, and in horizontal and

vertical mount styles. All come with a choice of zirconia split sleeves (diagonal or straight split options

available), or with phosphor bronze straight split sleeves. Housing is available in a variety of colors.:

blue, beige, aqua, green,etc.





SC Fiber Optic Adapter without Flange Drawing



SC SM MM Singlemode Fiber Optic Adapter W / O Flange  No Flange 0





Features

  1. Insertion loss <0.2dB
  2. 100% test in factory
  3. Durability >1000 times
  4. Polish method: PC,UPC,SPC,APC
  5. Plastic ABS/PBT body, light weight, durable
  6. Stainless steel mounting clips allow for easy snap in installation
  7. Ceramic or Bronze sleeve
  8. House color: Blue/UPC, Beige/PC, Green/ APC, auqa/OM3



Specification



Item

Test condition

Conformance

Test result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

1000 Mating, clean

every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-6

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-12

≤0.2dB

Temperature Cycling

 40ºC to +75ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

 -40ºC to +85ºC



≤0.2dB

Storage Temperature

 -40ºC to +85ºC



≤0.2dB





Order information

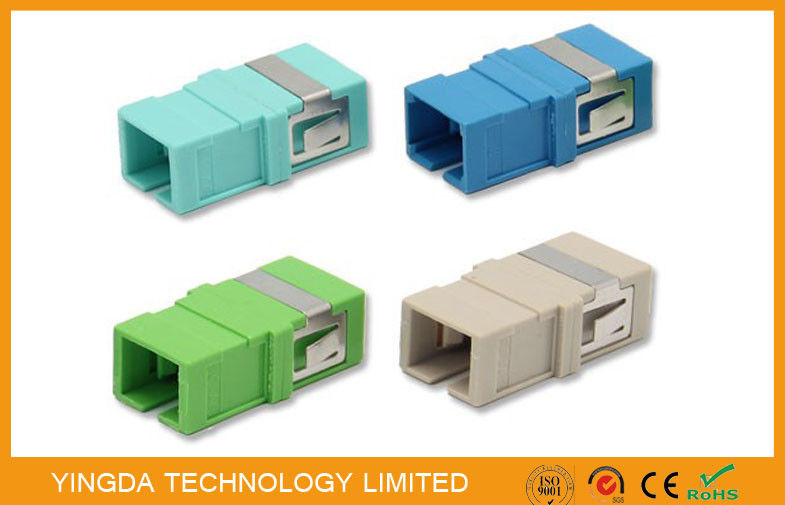

  1. SC Quad Singlemode Adapter w/o flange (blue)
  2. SC/APC Quad Singlemode Adapter w/o flange (green)
  3. SC Quad Multimode 10Gb OM3 Adapter w/o flange (aqua)
  4. SC Quad Multimode Adapter w/o flange (beige)

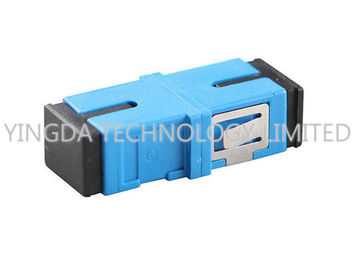

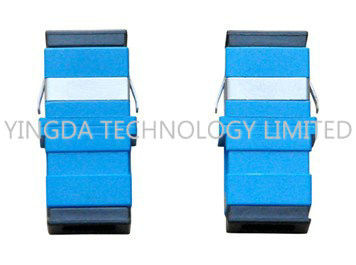

SC SM MM Singlemode Fiber Optic Adapter W / O Flange  No Flange 1SC SM MM Singlemode Fiber Optic Adapter W / O Flange  No Flange 2SC SM MM Singlemode Fiber Optic Adapter W / O Flange  No Flange 3
