Fiber Optic Cable Pigtail

Place of Origin SHENZHEN,CHINA
Hàng hiệu YINGDA
Chứng nhận ISO SGS ROHS
Model Number FPC-FCA-OS2-09-15
Minimum Order Quantity 500 pcs
Giá bán negotiable

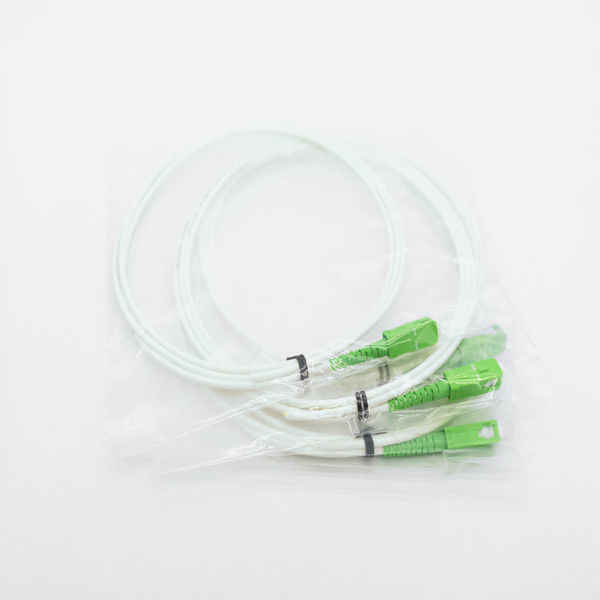

Packaging Details 1 pc/ bag, 1500pcs / carton box
Delivery Time 7days after payment
Payment Terms Western Union, T/T
Supply Ability 200,000 pcs per month
Thông tin chi tiết sản phẩm
connector FC/APC fiber count simplex 1 core
insertion loss <0.3dB fiber type corning fiber SMF-28e
package plastic bag with OEM label cable diameter 0.9mm
jacket LSZH connector color yellow, white
temperature -40~+80°C customer logo yes
Điểm nổi bật

waterproof pigtail

,

ribbon pigtail

Để lại lời nhắn
Mô tả sản phẩm

Fiber Optic Pigtail FC/APC 1.5M 0.9mm Yellow Loose Tube Fiber Cable LSZH





Fiber Optic pigtail has connector at one end, the other end is fiber optic cable which be cut off.

Then it connect by splice with other cable core. It is widely used in fiber optic terminal box, ODF

rack , cabinet to connect with fiber optic media converter/transceivers(use coupler,patch cord too)





Features

  1. Conforms to ANSI, Bellcore,TIA/EIA,IEC,etc International and domestic standards
  2. Fiber transmission active connection
  3. Low insertion loss, high return loss
  4. Good changeability and repeatability
  5. Mostly used inside frame connection, simple, convenient and economical
  6. Easy to install, small size, large capacity.



Application

  • Medical instruments
  • Industry and Army use
  • CATV network
  • LAN network
  • Fiber Access network
  • Telecommunications
  • Gigabit Data Network test



1.Technical Data

NO.

Item

Unit

Single Mode

Multi-Mode

1

Insertion Loss

dB

≤0.2

≤0.3

≤0.3

2

Return Loss

dB

≥50/UPC

≥45/PC

≥65/APC

≥35/PC

3

Repeatability

dB

0.1

4

Working Times

Times

≥1000

5

Operating Temperature

°C

-40-85

6

Optical Cable Diameter

mm

Φ0.9

Φ2.0

Φ3.0





2. Polish Data



Item

PC Polishing

APC Polishing

Ferrule Diameter(mm)

2.5

1.25

2.5

1.25

Radius of Cury(mm)

10 ~25

7~25

5~15

Fiber Height(nm)

-100~50

±50

Apex Offset(um)

±50

±50
