SM 9/125 um Fiber Optic Adapter LC / APC , Optical Fibre Adapter Green Quad 4 Way
Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xFiber count | 4 fiber / quad | connector material | plastic |
---|---|---|---|
adapter color | green | sleeve material | ceramic |
fiber type | SM 9/125um | polish mode | APC |
working temperature | -40 ~ +80 °C | wavelength | 1310nm, 1550nm |

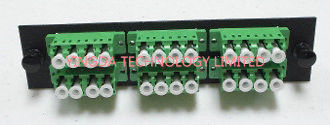

appliction | ODF adapter panel, LGX panel, rack mount panel | ||
Điểm nổi bật | fiber optic coupler,bare fiber adapter |

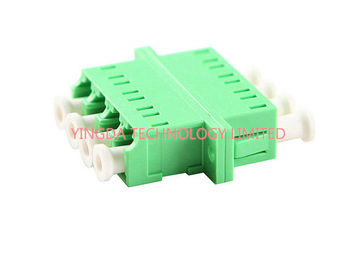

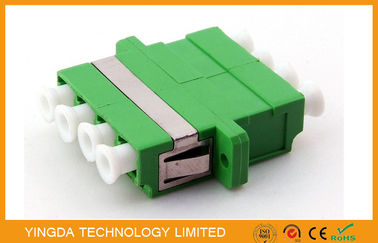

LC Quad Fiber Optic Adapter, LC / APC Optical Fibre Adapter Green Quad 4 Way
Institute of LC type connector is a famous BELL (BELL) research and development, using the
convenient operation modular jack (RJ) latch mechanism is made. The pin and the size of the
sleeve is adopted by the general SC, FC, half size of 1.25 MM. This can increase the density
of optical fiber connector in the optical fiber distribution frame. At present, in terms of single-
mode SFF, LC type of connector has occupied the dominant position, actual application in the
field of multimode is also growing rapidly.
Fiber Optic Adapter (coupler), is connector during optical fiber transmission, both ends can be
inserted into the different optical fiber connector such as FC, SC, ST, LC, MTRJ, MPO, E2000
to make them interchange,and widely used in optical optical distribution frame (ODF), optical
Fiber communication equipment, instruments, etc., superior performance, stable and reliable.
Some call fiber optic adapter as optical fiber connectors, in fast,its two different things.
Features
- Conforms to Telcordia GR-326-CORE standard
- Conforms to YD/T-1272.3 standard
- Good interchangeability
- Low insertion loss
- Plug connection, easy and fast to install or uninstall
- 100% Test in factory
- 1 year guarantee
Application
- CATV network
- FTTH
- Telecommunication,etc
Specification
Item |
SM |
|
|
MM |
PC |
UPC |
APC |
||
Ferrule type |
Convex spherical |
big chamfer or step |
Convex spherical |
|
Ferrule ID (um) |
125 |
127 |
||
Main body material |
PBT or ABS |
|||
Connector type(mm) |
0.9/2.0/3.0mm, simplex, duplex |
|||
Operating temperature (°C) |
-40 ~+85 |
|||
Storage temperature (°C) |
-40 ~+85 |
Order information
- Connector type: SC, LC, MU, E2000, MT-RJ, FC, ST, DIN, D4, FDDI, SMA, etc
- Connector color: beige, blue, green, aqua, purple
- Fiber type: SM, OM1, OM2, OM3, OM4
- Type: simplex, duplex
- Polish: UPC PC APC SPC
