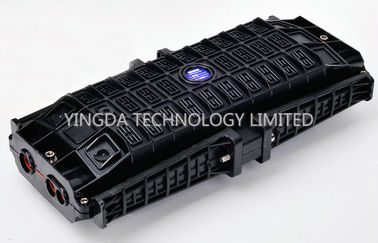

96 Core H004 Inline Rubber Seal Fiber Optic Splice Closures FOSC 3 In 3 Out

Thông tin cơ bản
Place of Origin: China
Hàng hiệu: YINGDA
Chứng nhận: ISO,SGS
Model Number: H004
Minimum Order Quantity: 100 PCS
Giá bán: Negotiable
Packaging Details: 1pc / box, 10pcs/ carton box
Delivery Time: 5days after pay
Payment Terms: T/T or western Union
Supply Ability: 50,000pcs per month
Thông tin chi tiết
shape: inline horizontal closure max capacity: bunchy fiber 96cores, ribbon 216 cores
cable port: 3in 3out cable diameter: Φ8—Φ23 (mm)
material: PC splice tray qty: max. 4pcs
closure dimension: 450x220x110 mm weight: 3.5 kgs
carton qty: 10pcs carton size: 61*48*47mm

Mô tả sản phẩm

96 Core H004 Inline Rubber Sealing Fiber Optic Splice Closure FOSC 3 In 3 Out Cable Port





The closure casing is made of quality engineering plastics, and of good performance of anti-erosion

against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.



The mechanical  structure is reliable and has the performance of resisting wild environment and

intensive climate changes and  serious working environment. The protection grade reaches IP68.

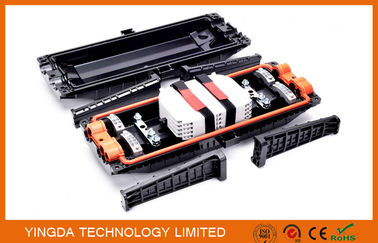

The closures are applicable to ribbon type optical cable and common optical cable. The splice trays

inside the closure are turnable like booklets, and have adequate curvature radius and space for

winding optical fiber to make sure the curvature radius for optical winding 40mm.Each optical cable

and fiber can be operated individually.



The closure is of small volume, big capacity and convenient maintenance.



The elastic rubber seal rings inside the closure are of good sealing and sweat-proof performance.



The casing can  be opened repeatedly without air leakage. No special tools are required.

The operation is easy and simple.The air  valve is provided for the closure and used to check the

sealing performance.





Application:

  •  aerial, underground, pipeline, hand hole.

The ambient temperature ranges from -40 to 65℃.



Dimension and capacity



Outside dimension (LxWxH)

450x220x110 (mm)

Weight (excluding outside box)

2750g-3200g

Number of inlet/outlet ports

3 (pieces) on each side (total 6 pieces)

Diameter of fiber cable

Φ8—Φ23 (mm)

Capacity of FOSC

Bunchy: 6—96 (Cores)

Ribbon: max. 216 (Cores)

Splice tray

Max. 4pcs

Splice tray capacity

Bunchy:6,12,24cores;Ribbon:3,6 pieces

Insert plate size

175x56x30(mm)

Body size

378x136 (mm)

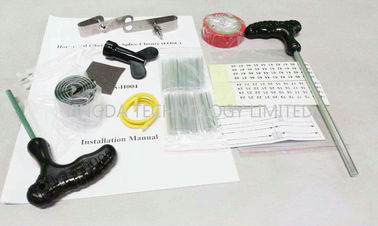

Accessory List





No.

Name of accessories

Usage

1

Heat shrinkable

protective sleeve

Protecting fiber splices

2

Nylon tie

Fixing fiber with protective coat

3

Insulation tape

Enlarging diameter of fiber cable for easy fixing

4

Seal tape

Enlarging diameter of fiber  cable which fits in with seal fitting

5

Hanging hook

For aerial use

6

Earthing wire

Putting through between earthing devices

7

Abrasive cloth

Scratching fiber cable

8

Labeling paper

Labeling fiber

9

Special wrench

Fixing bolts, tightening nut of reinforced core

10

Measuring paper

To measure circle, of which its diameter is enlarged with seal tape

11

Buffer tube

Hitched to fibers and fixed with FOST, managing buffer

12

Desiccant

Put into FOSC before sealing for desiccating air.
