MTP MPO Trunk Cable

Thông tin cơ bản
Place of Origin: SHENZHEN,CHINA
Hàng hiệu: YINGDA
Chứng nhận: ISO SGS ROHS
Model Number: MTPf-12FC-OS1-02-09
Minimum Order Quantity: 100 pcs
Giá bán: negotiable
Packaging Details: 1 pc/ box, 160 pcs/carton box
Delivery Time: 7days after payment
Payment Terms: Western Union, T/T
Supply Ability: 10,000 pcs per month
Thông tin chi tiết
connector: MPO male fiber type: OS1 SM multi-fiber cable
Cable type: multi-fiber Ribbon cable fiber count: 12 Fiber FC
Insertion loss: <0.3dB package: Vacuum / plastic packing

Mô tả sản phẩm

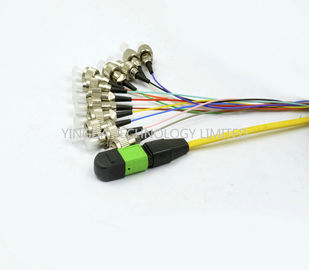

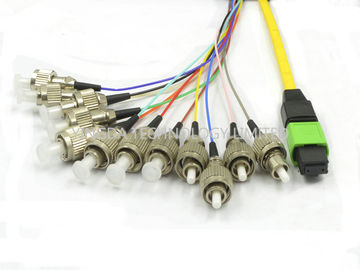

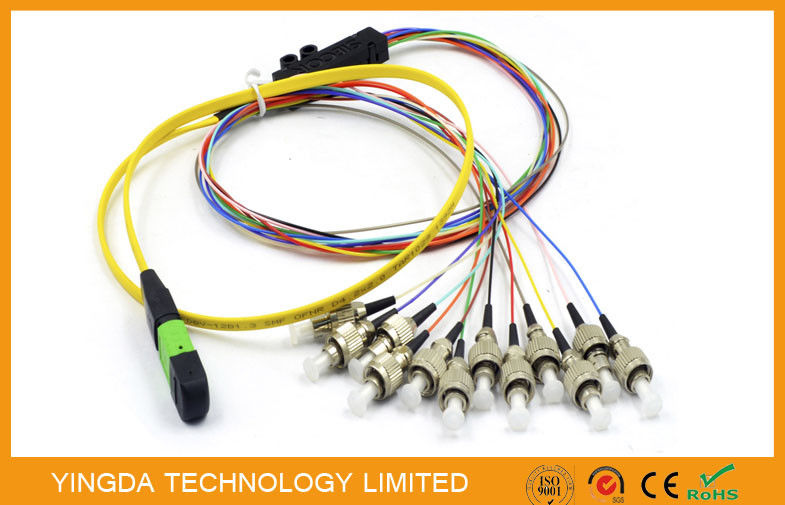

MPO - FC Fanout Trunk Cable MTP MPO Cable Ribbon SM 0.9mm 12 Fibers





MPO fiber optic patch cord is composed of high precision connectors and cables, suitable for

telecommunication system high density network connectivity solutions. The outside of the

connector is precise plastic parts, including push and pull plug locking mechanism, precise

PIN needle to ensure accurate matching. Generally use 4 core, 8 core, 12 core optical fiber

ribbon cable. MPO optical fiber jumper has high accuracy ferrule and high quality optical

fiber cable, carefully manufactured by our company's unique grinding technology, the ferrule

end face have both type: PC and APC. It also has high precise MPO adapter, low insertion

loss, which ensures long-term optical stability and mechanical properties.





Features

  1. Comply with G5982 & IEC61754 - JIS
  2. multi core optical fiber connector
  3. Mult-fiber termination of 4f, 8F, 12F & 24F fibers
  4. precision multi core inserted chip of Precision Multifiber MT Femule
  5. pushpulll locking Push-pull latching
  6. can choose male / female joint Male and Female connector type
  7. can choose a ribbon cable and micro cable
  8. Bare & Ruggedized Ribbon and Mic round cable





Technical Specification



MPO/MTP Connector

Standard

SM MT Ferrule

Low Loss(Elite)

SM MT Ferrule

Standard

MM MT Ferrule

Low Loss

MM MT Ferrule

Insertion Loss

Typical   (dB)

0.35

0.20

0.35

0.20

Maximum (dB)

0.75

0.35

0.60

0.35

Return Loss (dB)

≥50 for APC(8 Angle Polish)

≥20 for PC

≥35 for PC

Male/Female

Mate:With Pins,Female:Without Pins

Exchange abilty    (dB)

≤0.3(Connect Randomly)

Tensile Strength  (dB)

≤0.3(Max 66N)

Vibration (dB)

≤0.3(10-55Hz)

Temp Range  (dB)

≤0.3(-40~75℃,42Cycles)



Ordering Information



MPO-male/APC/12F-FC/UPC/SM/Φ0.9-L/L1-RJ

①                ②    ③   ④   ⑤    ⑥    ⑦   ⑧ ⑨ ⑩



①

Connector Type 1#

MPO-female, MPO-male

End face

APC,PC

Fiber Count

4,8,12 & 24 MT Fibers

Connector Type 2#

MPO/female*,MPO-male,FC,SC,ST,MU,LC,E2000

End face 2#

PC,UPC,APC

⑥

Fiber Mode

SM=Single Mode,MM=Multi Mode(50,62.5,OM2,OM3,OM4)

Pigtail Diameter

Φ2,Φ0.9

Cable Length

L=1,2,3,4… Meter

Pigtail Length

L1=0.5,0.6,1.0 Meter

Temp Range

RJ:Jacket Ribbon Cable,RB:Bare Ribbon Cable,MC:250um mini round cable



MTP MPO Trunk Cable
