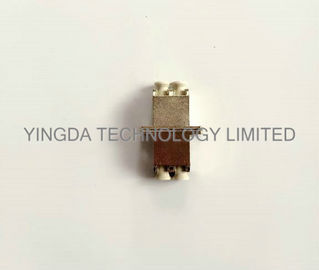

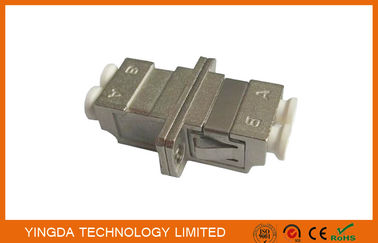

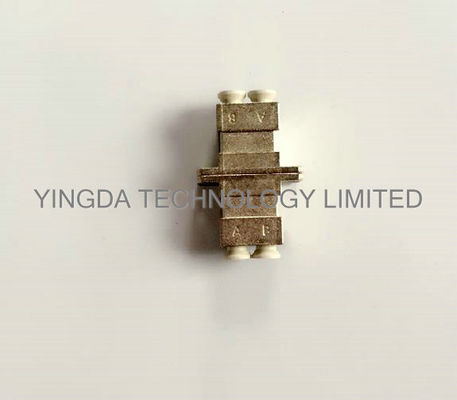

High Return Loss Couler LC LC Duplex Optical Fiber Adapter Silver Metal Housing

Thông tin cơ bản
Place of Origin: China
Hàng hiệu: YINGDA
Chứng nhận: iso
Model Number: LC duplex
Minimum Order Quantity: 10PCS
Packaging Details: 25PCS / BOX
Thông tin chi tiết
MATERIAL: metal dust cap color: white
type: metal adapter shape: SC footprint LC duplex adaptor
fiber mode: single mode,multimode insertion loss: < 0.2. dB
warranty: 2 years temperature: -40 to +85 degree

Mô tả sản phẩm

High Return Loss Couler LC LC Duplex Optical Fiber Adapter Silver Metal Housing





Features:

  1. Low insertion loss, high return loss
  2. Good compatibility
  3. High precision of mechanical dimensions
  4. High reliability & stability
  5. Both eramic and Bronze Sleeve are available
  6. PC,APC,UPC optional
  7. Duplex
  8. Metal housing



Application:

  • Local Area Network
  • CATV System
  • Telecommunication Networks
  • Equipment Test Specification:



Specification:



Parameter

Unit

LC-LC Duplex

SM/ MM

PC/UPC/APC

Insertion Loss (Typical)

dB

≤0.2

Return Loss

dB

≥60

Exchangeability

dB

≤0.2

Repeatability

dB

≤0.2

Durability

Time

>1000

Operating Temperature

°C

-40~75

Storage Temperature

°C

-45~85



High Return Loss Couler LC LC Duplex Optical Fiber Adapter Silver Metal HousingHigh Return Loss Couler LC LC Duplex Optical Fiber Adapter Silver Metal Housing
