Waterproof FTTH Fiber Optic Distribution Cable Loose Tube PE Sheath Steel Wire Cable

Thông tin cơ bản
Place of Origin: CHINA
Hàng hiệu: YINGDA
Chứng nhận: ISO,SGS
Model Number: GYXTPY
Minimum Order Quantity: 10 KM
Giá bán: Negotiable
Packaging Details: 2km / wooden drum
Thông tin chi tiết
cable jacket: Black minimum length: 10km
fiber count: 2 core, 4 core, 6 core, 8 core,12 cores cable size: 3.0*4.0mm; 4.0*6.0mm
jacket material: LSZH, PE, PVC waterproof: yes
Tensile(N): long term:300N, short term: 800N Strength member: 2 x Steel Wire

Mô tả sản phẩm

Waterproof FTTH Fiber Optic Distribution Cable Loose Tube PE Sheath Steel Wire Cable





Description

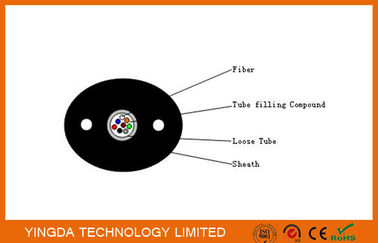

GYXTPY cable structure are 125um optical fiber in loose tube made of high modulus

materials, loose tubes filled waterproofing compounds. After two parallel steel wires

placed on both sides of extruded PE or LSZH or PVC sheathed cable.



Application



◆Mainly used for building overhead or pipes to introduce cable





Technical parameters



Cable

code

Fiber

count

Cable

size

(mm)

Cable

 weight

(kg/km)

Tensile(N)

Crush

(N/100mm)

Crush

resistance

Temper

ature

(°C)

Long

term

Short

term

Long

term

Short

 term

Dynamic

Static

GYXTPY-02

2

3.0*4.0

25

300

800

300

1000

20D

10D

-40~+70

GYXTPY-04

4

3.0*4.0

27

300

800

300

1000

20D

10D

GYXTPY-06

6

4.0*6.0

30

300

800

300

1000

20D

10D

GYXTPY-08

8

4.0*6.0

33

300

800

300

1000

20D

10D

GYXTPY-12

12

4.0*6.0

35

300

800

300

1000

20D

10D



Fiber type

G652D

50/125

62.5/125

G657A1

G657A2

OM3-150

OM3-300

OM4

Jacket material

PE

LSZH

PVC





Waterproof FTTH Fiber Optic Distribution Cable Loose Tube PE Sheath Steel Wire Cable
