48 lõi Fusion Splice sợi quang phân phối hộp 3 trong 3 ra cho đệm ống

Thông tin cơ bản
Place of Origin: CHINA
Hàng hiệu: YINGDA
Chứng nhận: ISO
Model Number: GJS-2017
Minimum Order Quantity: 50PCS
Giá bán: Negotiable
Packaging Details: 1pc / box, 4pcs / carton box
Delivery Time: 7days after get payment
Payment Terms: T/T, MoneyGram, Western Union
Thông tin chi tiết
Vật chất: PC hoặc PP Màu: Đen
Con dấu: niêm phong cơ khí cổng cáp: 3in 3out cho ống đệm, 8in 8out cho thả cáp
đường kính cáp: 6 cổng: 8-16mm, 16 cổng: 2x3mm Bộ chia PLC: Bộ chia quang học 1x16, 1x8, 1x4, 1x2
bộ chuyển đổi: Tối đa SC / UPC 18 chiếc Kích thước: 310x207x97mm
mô hình khách hàng: được Mẫu: được

Mô tả sản phẩm

1x16 Plc Splitter Distribution Box, FTTH Cable Fiber Optic Enclosures 48 Cores Fusion Splice





Model: GJS-2017



FTTH drop cable splitter closure is mainly used for splitting and wiring ,not only have the butt-joint

and branching function, but also have the function of optical cable splitting and wiring, suitable for

the installation of main optical cables and drop cables with different diameters.



Features:

  1. The closure adopts horizontal mechanical sealing and advanced internal structure design.
  2. It can be installed one 1:8 Blockless PLC splitter. 2*3mm drop cable both ends in and out.
  3. The closure is spacious enough for winding and storing fibers.
  4. The patented sealing structure keep good sealing performance after re-entry and re-using.
  5. Easy open and close of closure with very little tool. 24cores Fusing Splice available(Max.48cores)



Applications:

  • Suitable for bunchy fibers
  • Aerial, wall-mounting
  • It’s especially applicable to FTTH optical fiber distribution



GJS-2017 Fiber Optic Splice Closures Specification



Model Splice Tray Capacity

Splitter Tray

(Blockless Type PLC Splitter)

Number of adapters Max. Capacity Suitable Cable Dia.Allowed

GJS-2017

(Bunchy)

24-48F 2 x1:8, 1 x 1:16 18 pcs 24-48F

4-φ8~φ16mm

2-φ8~φ13mm

16-2*3mm



Accessory List

48 lõi Fusion Splice sợi quang phân phối hộp 3 trong 3 ra cho đệm ống

English user manual 1pc
sand paper 1pc
Special wrench 1pc
Wall mounting kits 1set
Buffer tube 1pc
Labeling marker 1set
Earthing wire 1pc
Insulation tape 1roll
Heat shrinkable protective sleeve 1bag
Desiccant 2bags
Sealing tape 1roll

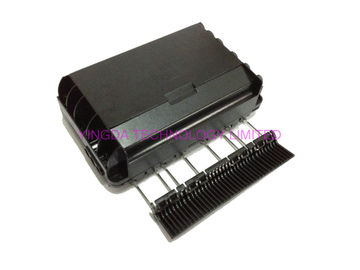

48 lõi Fusion Splice sợi quang phân phối hộp 3 trong 3 ra cho đệm ống48 lõi Fusion Splice sợi quang phân phối hộp 3 trong 3 ra cho đệm ống



Package: 1 piece / box, with all  wall mounting accessories

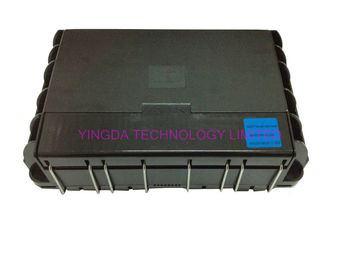

48 lõi Fusion Splice sợi quang phân phối hộp 3 trong 3 ra cho đệm ống48 lõi Fusion Splice sợi quang phân phối hộp 3 trong 3 ra cho đệm ống

The cable is clip cover design, have 6 pieces cable inports, optical fiber cable diameter is:

4ports:8-16mm;

2ports: 8-13mm;

16ports:2x3mm;

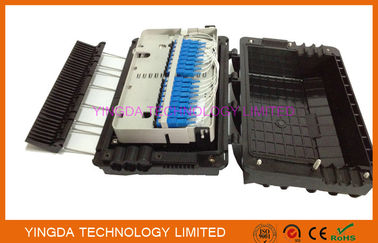

48 lõi Fusion Splice sợi quang phân phối hộp 3 trong 3 ra cho đệm ống48 lõi Fusion Splice sợi quang phân phối hộp 3 trong 3 ra cho đệm ống


  • inline fiber optic cable splicing splitter box with 1x16 PLC splitte SC/UPC connectors pre-termianted at factory.
  • The tray fixing on the box is clip design, no need to use speical tool to take off the tray, only by hand.
  • The upwards is the adapter panel for distribution, maximum capacity is 18 pieces SC fibre adaptors. the backwards is for cable splitting with micro optical plc splitter  1x 1:16 or 2 pcs 1:8 and reduandant fibers storage.
  • There is speical place designed to fix the PLC splitter tube, and clip it at the back of the splice tray.
  • when installation, please take carefully so as not to make the fiber broken.

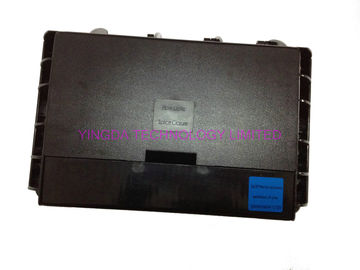

48 lõi Fusion Splice sợi quang phân phối hộp 3 trong 3 ra cho đệm ống48 lõi Fusion Splice sợi quang phân phối hộp 3 trong 3 ra cho đệm ống

                 fiber optic splitter box front view                fibre optic splitter box back view



the distribution box is made of high strength engineer plastic PC material,with stainless steel bolts 6 pieces and special clip shaft to close and open the box.
