SC/UPC Coupler Fiber Optic PLC Splitter 2X8 900um 9/125um SM 1Meter G657A LSZH

Nguồn gốc Trung Quốc
Hàng hiệu YINGDA
Chứng nhận ISO
Số mô hình 2x8 splitter
Số lượng đặt hàng tối thiểu 100 pcs
Giá bán negotiable
chi tiết đóng gói 2pc/ box, 20pcs/carton box
Thời gian giao hàng 5-8days after payment
Khả năng cung cấp 10,000 pcs per month

Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
split ratio 2x8 PLC splitter connector SC/UPC coupler
fiber type 9/125UM G657A1 insertion loss 10.6dB
Uniformity (Max.) 1.0dB wavelength 1260 - 1650 nm
PDL(Max.) 0.3dB Standard Telcordia GR-1221 and GR-1209
tube dimension 4*7*60mm cable diameter 0.9mm
cable color input white, output:Blue/Orange/Green/Brown
Điểm nổi bật

fiber optic splitter

,

fbt coupler

Để lại lời nhắn
Mô tả sản phẩm

Fiber Optic PLC Splitter 2X8 Mini Modules 900um 9/125um SM 1Meter G657A LSZH SC/UPC Loose Tube





Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology and offers a low cost solution for optical signal distribution. It has low insertion loss and polarization dependent loss, miniature size, wide operating wavelength and temperature range, super reliability, and excellent channel uniformity.



Precision Micro-optics provides 1xN and 2xN series of splitters. Three packaging types are available fan-out PLC splitter, module PLC splitter, or rack mount PLC splitter shown below.



Features

  • Low insertion loss and PDL
  • High channel number
  • Compact size
  • High reliability
  • Wide operating wavelength and temperature range
  • Excellent channel uniformity
  • Conforms to Telecordia GR-1221 and GR-1209



Technical Parameters



SC/UPC Coupler Fiber Optic PLC Splitter 2X8 900um 9/125um SM 1Meter G657A LSZH 0

                                                 Steel tube Dimension





Optical Performance   Unit Specification
Insertion Loss (without Connector) MAX dB 10.6
Insertion Loss of Connector MAX dB None
Insertion Loss of Adapter MAX dB None
Uniformity Loss MAX dB 1.0
Polarization Dependent Loss MAX dB 0.3
Wavelength Bandwidth MIN nm 1260~1650
Return Loss (All Port) MIN dB 55
Directivity MIN dB 55
Operating Temperature oC dB -40~85

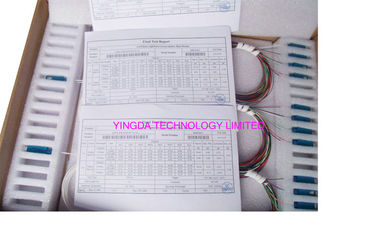

Individual Test Data Sheet Format Hardcopy 1310, 1490, 1550nm ILUFPDL
Fiber Type - G657A1
Fiber Color - Input: Transparent
Output: 2*4 Color (Blue/Orange/Green/Brown)
Tube Type - Φ0.9mm, Hytrel
Tube Color - Input: White
Output: White
PLC Splitter Packing - Stainless Steel Tube
Package Diemension - 4*7*60(mm)



Product details





steel tube: 60*7*4mm,mini module,  input and putput 0.9mm tube

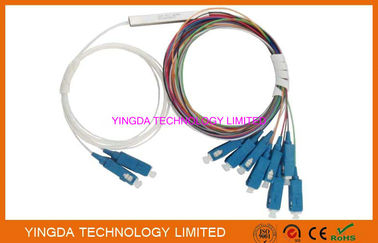

SC/UPC Coupler Fiber Optic PLC Splitter 2X8 900um 9/125um SM 1Meter G657A LSZH 1

  • input and output white color, can be customized
  • cable length can be 1 meter, 1.5meter or customized
  • connector can be: SC FC ST LC...ETC
  • Polish method: upc apc

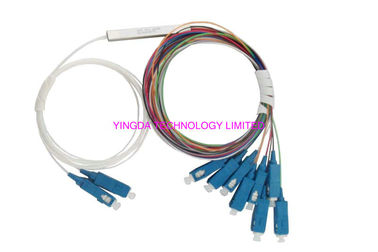

SC/UPC Coupler Fiber Optic PLC Splitter 2X8 900um 9/125um SM 1Meter G657A LSZH 2

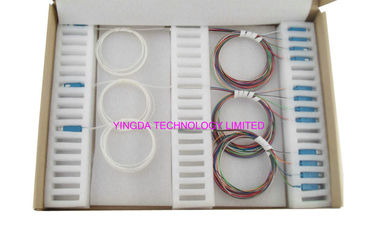

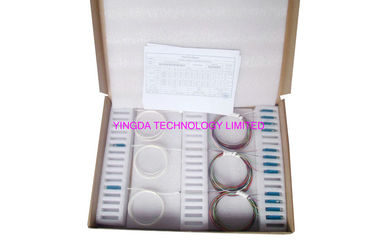

package: 1pc/ blister box, or  4pcs/box

SC/UPC Coupler Fiber Optic PLC Splitter 2X8 900um 9/125um SM 1Meter G657A LSZH 3

Order information



Type Package size Port Fiber Type Input/output Fiber length connector
PLCS BF=bare fiber
FO=fan-out
MD=module
MB=metal box
01X02
01x04
01x08
……
02x16
02x32
02x64
0=G652D
1=G657A
C=Customize
1=bare fiber
2=900µm
tight buffered
3=2.0mm
Loose tube
4=3.0mm
Loose tube
1=1m
2=1.5m
C=Customize

0=no connector
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=ST/APC
6=ST/PC
7=LC/AP
8=LC/PC
C=customize





YINGDA produce all kinds of PLC splitters of fiber optic and sell at home and aboard: mini module type, LGX module type, steel tube type, bare fiber type, ABS plastic module type, Rack type, fusion module tray type, splitter closure type... etc.
