High Strength GPON 12 Fiber Optic Termination Box , Fiber Optic Splitter Box with SC/APC Adapter
Nguồn gốc | Trung Quốc |
---|---|
Hàng hiệu | YINGDA |
Chứng nhận | ISO |
Số mô hình | FDB0212C |
Số lượng đặt hàng tối thiểu | 200pcs, first order accept small order |
Giá bán | negotiable |
chi tiết đóng gói | 1pc/box, 20pcs/carton box |
Thời gian giao hàng | 5-8working days |
Điều khoản thanh toán | T/T, Western Union, MoneyGram, L/C |
Khả năng cung cấp | 50k per month |
Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xmaterial | PC+ABS | Capacity | 12 fibers |
---|---|---|---|
adapter qty | 12pcs SC/APC couplers | split ratio | 1x2,1x4,1x8 micro splitter optional |
color | white | size | 225*200*65mm |
connector insertion loss | <0.2dB | OME or sample | ok |
cable port | 2in 16out; input; un-cut cable | cable diameter | 16mm |
Điểm nổi bật | fiber optic closure,optical distribution box |

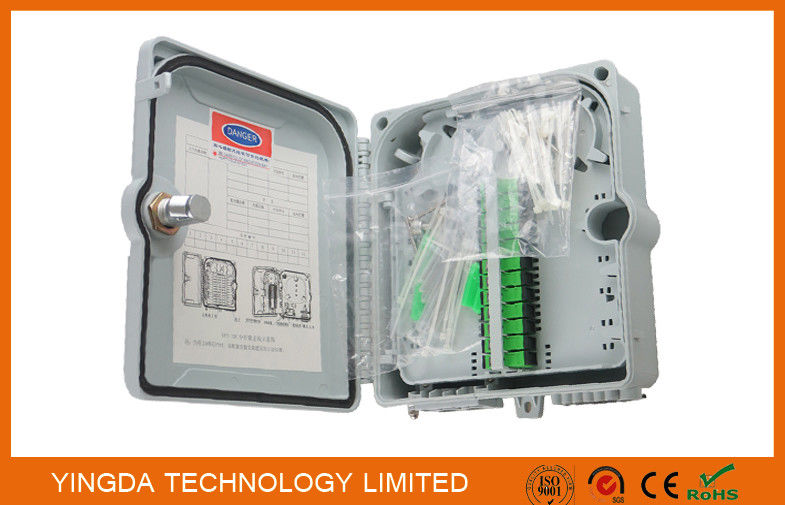

High Strength Plastic GPON 12 Fibers Fiber Optic Distribution Box, 12 Ports Fiber Optic Splitter Box with SC/APC Adapter Panel
FDB0212C fiber optic splitter box is widely used as a termination point for feeder cable to connect with drop cable. The fiber splicing ,splitting, distribution can be done in this box,and meanwhile it provides solid protection and menagemant for FTTX network.Can be used indoor or outdoor.
Feature
- ABS material used ensures the body strong and light.
- Water-proof design for outdoor uses.
- Easy installations: Ready for wall mount – installation kits provided.
- Adapter slots used – No screws and tools needed for installing adapters.
- Ready for splitters: designed space for adding splitters.
- Space saving! Double-layer design for easier installation and maintenances:
- Lower layer for splitters and over length fiber storage.
- Upper layer for splicing, cross-connecting and fiber distribution.
- Cable fixing units provided for fixing the outdoor optical cable.
- Protection Level: IP65.
- Accommodates both cable glands as well as tie-wraps
- Lock provided for extra security
Structure explanation
Configuration
Model | FDB0212C Distribution box |
Installation size | 168*210mm |
Mounting method | Pole mount ; Wall mount |
Max capacity | 12fibers SC, 24fibers LC duplex |
Cable ports | 2in,12out |
Cable diameter | 16mm feeder cable or 2*3.0mm drop cable |
Split ratio | 1x2,1x4, 1x8 micro splitter |
Package information
Model | Inner pack size | Carton box size | Q’ty/carton | G.w./carton |
FDB0212C termination box |
240*230*90mm | 50*48*49cm | 20pcs | 21.2kgs |
Environmental reguirement
Working temprature : -40℃~+85℃
Relative humidity : ≤85% (+30℃)
Atmospheric pressure : 70Kpa~106Kpa
Main technical datasheet
Insertion loss : ≤0.2db
UPC return loss : ≥50db
APC return loss : ≥60db
Life of insection and extraction : >1000 times
Thunder-proo technical datasheet
The grounding device is isolated with the cabinet, isloation resistance is less than 2*104MΩ/500V(DC);
IR≥2*104MΩ/500V(DC)
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture, no flashover; U≥3000V
