Fixed Type Fiber Optic Attenuator Square 3dB 4dB 5dB , CATV FC Attenuator

Thông tin cơ bản
Place of Origin: China
Hàng hiệu: YINGDA
Chứng nhận: ISO
Model Number: ATTN-FCS-01-R
Minimum Order Quantity: 100PCS
Giá bán: Negotiable
Packaging Details: 1 pc / plastic bag
Delivery Time: 3-5 days
Payment Terms: T/T or western Union
Supply Ability: 50,000pcs per month
Mô tả sản phẩm

FC Attenuator 3dB fixed Adapter Type, Fiber Optic Attenuator Square 3dB 4dB 5dB​





Fiber optic attenuator, as a kind of optical passive components, used in optical communication system

to debug the optical power performance,optical instrument calibration correction and fiber optic signal

attenuation. Products use attenation fiber which mixed with metal ions, it can adjust the light power to

the required level.



Features

  1. Conforms to GR910
  2. Simple use,low PD,High RL
  3. Withsttand high power


Application

  • EDFA power amplifier
  • Power balance in the system
  • CATV
  • WDM power regulation



Specification

Item

standard

flat

broadband

Wavelength(nm)

1310 or 1550

1310 or 1550

1310 and 1550

Bandwidth(nm)

±20

±40

±40

Attenuation(dB)

1 ~ 30dB can be specified

Attenuation accuracy(dB)

0.5

Return loss(dB)

≥40

Working temperature(℃)

-40~+70

Storage temperature(℃)

-40~+85





Fixed female to female flange type attenuator drawing

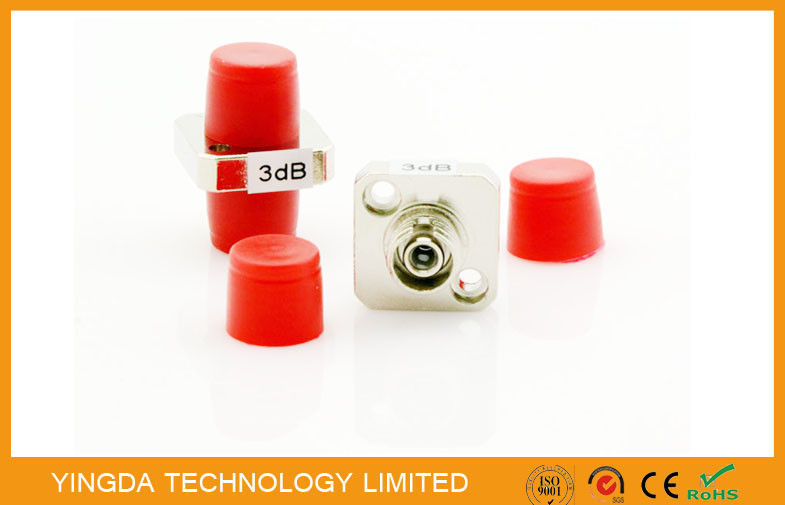

Fixed Type Fiber Optic Attenuator Square 3dB 4dB 5dB , CATV FC Attenuator



More produdt show



Fixed Type Fiber Optic Attenuator Square 3dB 4dB 5dB , CATV FC Attenuator
