1U 24 Port 19" SC SM 24 Cores Fiber Patch Panel SC Pigtail And SC Adapters

Nguồn gốc Trung Quốc
Hàng hiệu YINGDA
Chứng nhận ISO
Số mô hình GPRF-1U-SC24
Số lượng đặt hàng tối thiểu 100pcs
Giá bán negotiable
chi tiết đóng gói 1pc/box, 5pcs per carton box
Điều khoản thanh toán T/T, Western Union, MoneyGram
Khả năng cung cấp 2000pcs/month

Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
material cold-rolled steel steel thickness 1.0mm
color white dimension 430*300*44.5mm
cable ports 4 pcs at back of the box front port adapter port
adapter SC, FC, LC, ST, E2000 max capacity 24cores SC / 1U ; 2U:48 cores SC
customer LOGO silk print
Điểm nổi bật

rack mount odf

,

optical distribution frame

Để lại lời nhắn
Mô tả sản phẩm



1U 24 Port 19" SC SM 24 Cores Fiber Patch Panel SC Pigtail And SC Adapters





Model: GPRF-1U-SC24



Main introduction:



Material: box body using high-quality cold-rolled steel material, and the surface use matt spray

processing technology, strong adhesion, it is not easy to fall off, beautiful and durable



Usage: cable terminal branches terminating, 19 "standard structure, rack installation, suitable for

use in the installation of the FC, SC, St, LC adapter, dust proof deign, easy to operate.



Features

  • Dummy drawer optical fiber terminal box, dustproof design,fully closed
  • Applied in the branch connection of optical fiber termination
  • 19'' standard structure, rack mounted
  • FC,SC,ST,LC adapters available
  • Artistic appearance,easy for pasting signs.
  • Max capcity:48cores SC/ST/FC, LC max. 96cores.
  • Pre -terminated with pigtails or adapter in factory is ok.
  • Steel thickness:1.0mm


Specifications



Type

Dimension

(mm)

Max capacity

(core)

Carton size(mm)

Qty/

carton

(pc)

G.W

(kg)

GPRF-1U-SC24 430*300*1U 24 485*420*350 5 25
GPRF-1U-FC24 430*300*1U 24
GPRF-1U-2SC12 430*300*1U 24
GPRF-1U-2SC24 430*300*1U 48



Note:

The body is made of cold rolled steel sheet

FC,ST,SC,LC adapter available



Technical parameters



parameters value
Dimension(length * width * height) 430*300*44.5mm
Weight 4kgs
Fiber radius of curvature ≥40mm
The additional loss fiber without additional loss in the holding tray
The fiber length in the tray 1.6m
The fiber maximum capacity SC/FC 48 cores, LC up to 96 cores
The applicable temperature range -40℃~+60℃
The lateral pressure 500N
Anti-shock: 750N



Packing list:



* terminal box body: 1 sets

* mounting ears: 1 sets

* adapter mounting screws:96pcs

* welding mark: 4 sets

* optical fiber protection tube: 2 ~ 48pcs

* cable tie: 4 ~ 16pcs

1U 24 Port 19" SC SM 24 Cores Fiber Patch Panel SC Pigtail And SC Adapters 0

this 19inch fiber distribution panel with 4pcs cable ports at back. dustproof cover can be taken off.

1U 24 Port 19" SC SM 24 Cores Fiber Patch Panel SC Pigtail And SC Adapters 1

 in front, adapter panel: 24ports or 48ports SC or LC duplex, max. LC 96 cores. also with 3 ports for cable go through

1U 24 Port 19" SC SM 24 Cores Fiber Patch Panel SC Pigtail And SC Adapters 2

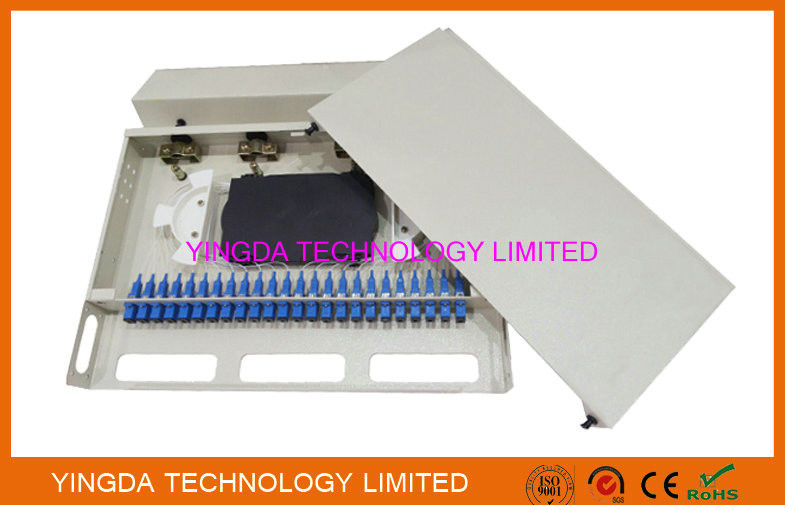

Fiber Patch panel inside equipped with splice tray, 24cores each, can pre-terminated with pigtails and adapter at factory before delivery.

1U 24 Port 19" SC SM 24 Cores Fiber Patch Panel SC Pigtail And SC Adapters 3

24ports ODF fully completed with 24 pcs SC/UPC adapter, SC/UPC pigtails 1 meter 900um simplex singlemode





YINGDA produces all kinds of fiber optic terminal box, fiber optic patch panels. it can be rack moun, sliding out with drawer, dustproof type. The front adapter panel can be fixed, or flexible to change with adapter panels.  If you have special requirements we can design and make your own box.



Sample can be offered

Customer logo can be print.

Pigtails or adapters can be pre-temrinated at factory.

100% brand new material and package.
